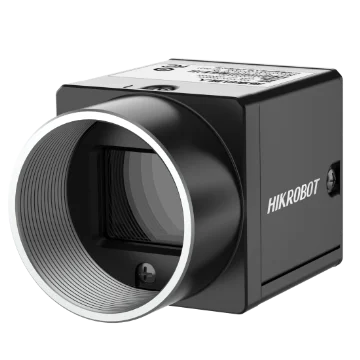

Hikrobot MV-CU020-90UM 2MP Area Scan Camera, USB3, GMAX4002, Mono
Model MV-CU020-90UM
Hikrobot MV-CU020-90UM 2MP Area Scan Camera, USB3, GMAX4002, Mono. Adopts optimized hardware design and low-power design with stable performance. Supports auto or manual adjustment of gain, exposure time, manual adjustment of LUT, and Gamma correction, etc.
Features
- Adopts optimized hardware design and low-power design with stable performance.
- Supports auto or manual adjustment of gain, exposure time, manual adjustment of LUT, and Gamma correction, etc.
- Supports customized ROI, horizontal and vertical reverse image output.
- Adopts compact design for flexible installation.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Specifications
| Model | MV-CU020-90UM |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | GMAX4002 |
| Pixel size | 4 μm x 4 μm |
| Sensor size | 1/1.7" |
| Resolution | 2048 × 1200 |
| Max. frame rate | 150.2 fps @ 2048 × 1200 Mono 8 |
| Dynamic range | 66.9 dB |
| SNR | 40.8 dB |
| Gain | 0 dB to 11.1 dB |
| Exposure time | 4 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB3.0, compatible with USB2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2) |
| Power supply | 9 VDC to 24 VDC, supports USB power supply |
| Power consumption | Typ. 1.9 W @ 5 VDC (USB3.0 provides power supply) |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 80 g (0.2 lb.) |
| Ingress protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating system | 32/64-bit Windows 7/10/11, 32/64-bit Linux |
| Compatibility | USB3 Vision, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.21 kg |
