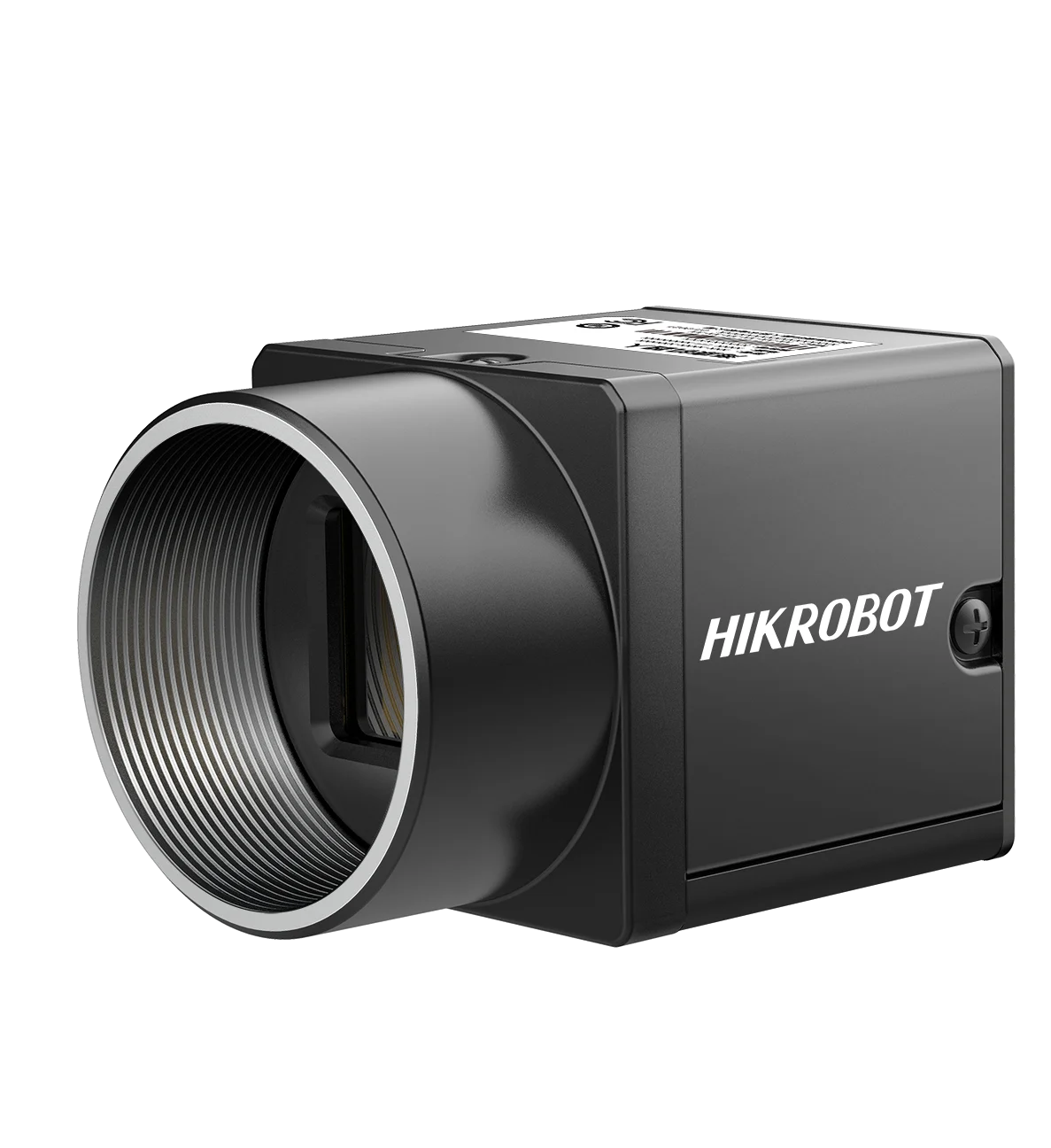

Hikrobot MV-CU013-A1UC 1.3MP Area Scan Camera, USB3

Name: Hikrobot MV-CU013-A1UC 1.3MP Area Scan Camera, USB3
Brand: Hikrobot
SKU: MV-CU013-A1UC

Model MV-CU013-A1UC

Hikrobot MV-CU013-A1UC 1.3MP Area Scan Camera, USB3. Supports auto or manual adjustment of gain, exposure time, and manual adjustment of LUT, Gamma correction, etc. Supports Sequencer and multiple ISP functions to provide high-quality images.

Datasheet (PDF) - MV-CU013-A1UC User manual (PDF) - MV-CU013-A1UC CAD: 3D STEP + 2D DXF (ZIP) - MV-CU013-A1UC

Features

Supports auto or manual adjustment of gain, exposure time, and manual adjustment of LUT, Gamma correction, etc.
Supports Sequencer and multiple ISP functions to provide high-quality images.
Supports customized ROI, horizontal and vertical reverse image output.
Adopts compact design for flexible installation.
Compatible with USB3 Vision Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Specifications

Model	MV-CU013-A1UC
Brand	Hikrobot
Sensor type	CMOS, global shutter
Pixel size	4.8 μm × 4.8 μm
Sensor size	1/2"
Resolution	1280 × 1024
Max. frame rate	210 fps @ 1280 × 1024 Bayer GB 8
Dynamic range	54.2 dB
SNR	40.3 dB
Gain	0 dB to 16 dB
Exposure time	30 μs to 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Mono/color	Color
Pixel format	Mono 8/10/12; Bayer GB 8/10/10Packed/12/12Packed; YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output
Data interface	USB 3.0, compatible with USB 2.0
Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2).
Power supply	9 VDC to 24 VDC, supports USB power supply
Power consumption	Typ. 2.1 W @ 5 VDC ; (USB 3.0 provides power supply)
Lens mount	C-mount
Dimension	29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
Weight	Approx. 76 g (0.2 lb.)
Ingress protection	IP30 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 95% RH (no condensation)
Client software	MVS or third-party software meeting with USB3 Vision Protocol
Operating system	32/64-bit Windows 7/10, 64-bit Window 11, and 32/64-bit Linux
Compatibility	USB3 Vision, GenlCam
Certification	CE, RoHS, KC
Shipping weight (estimated)	0.21 kg
