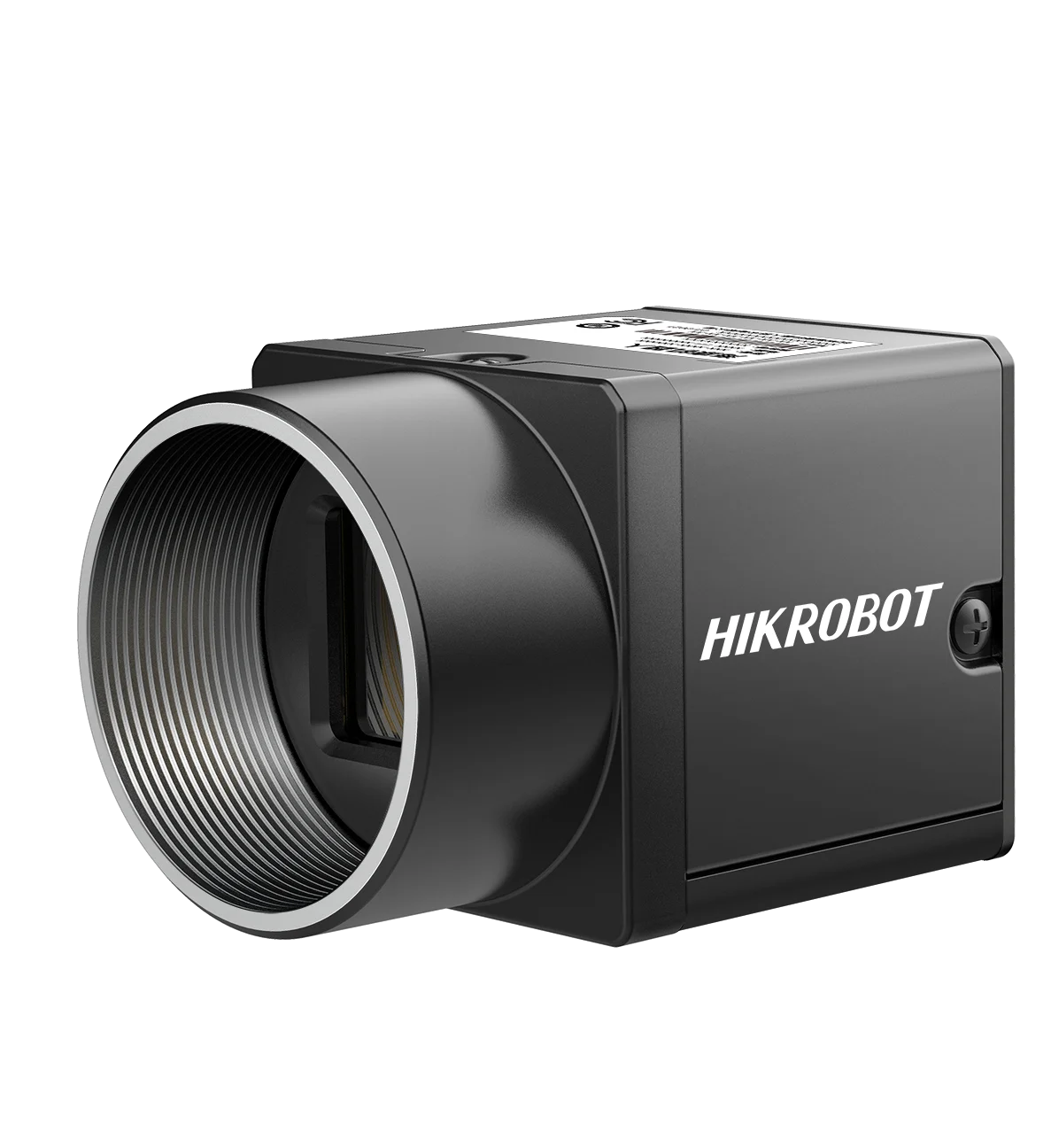

Hikrobot MV-CU200-20UC 20MP Area Scan Camera, USB3, AR2020, color

Name: Hikrobot MV-CU200-20UC 20MP Area Scan Camera, USB3, AR2020, color
Brand: Hikrobot
SKU: MV-CU200-20UC

Model MV-CU200-20UC

Hikrobot MV-CU200-20UC 20MP Area Scan Camera, USB3, AR2020, color. Adopts brand new design to reduce power consumption. Supports auto or manual adjustment of gain, exposure time, manual adjustment of LUT, Gamma correction, etc.

Datasheet (PDF) - MV-CU200-20UC User manual (PDF) - MV-CU200-20UC CAD: 3D STEP + 2D DXF (ZIP) - MV-CU200-20UC

Features

Adopts brand new design to reduce power consumption.
Supports auto or manual adjustment of gain, exposure time, manual adjustment of LUT, Gamma correction, etc.
Supports customized ROI, horizontal and vertical reverse image output.
Adopts compact design for small spatial installation.
Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.

Specifications

Model	MV-CU200-20UC
Brand	Hikrobot
Sensor type	CMOS, rolling shutter
Sensor model	AR2020
Pixel size	1.4 μm × 1.4 μm
Sensor size	1/1.8"
Resolution	5120 × 3840
Max. frame rate	18 fps @ 5120 × 3840 Bayer GR 8
Dynamic range	61 dB
SNR	39 dB
Gain	0 dB to 48 dB
Exposure time	54 μs to 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Mono/color	Color
Pixel format	Mono 8/10/12; Bayer GR 8/10/10 Packed/12/12 Packed
Binning	Supports 1 × 1, 2 × 2
Decimation	Not support
Reverse image	Supports horizontal and vertical reverse image output
Data interface	USB3.0, compatible with USB2.0
Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply	9 VDC to 24 VDC, supports USB3.0 power supply
Power consumption	Typ. 1.8 W @ 5 VDC(USB3.0 provides power supply)
Lens mount	C-mount
Dimension	29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
Weight	Approx. 76 g (0.2 lb.)
Ingress protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 80% RH (no condensation)
Client software	MVS or third-party software meeting with USB3 Vision Protocol
Operating system	32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux
Compatibility	USB3 Vision, GenlCam
Certification	CE, RoHS, KC
Shipping weight (estimated)	0.21 kg
