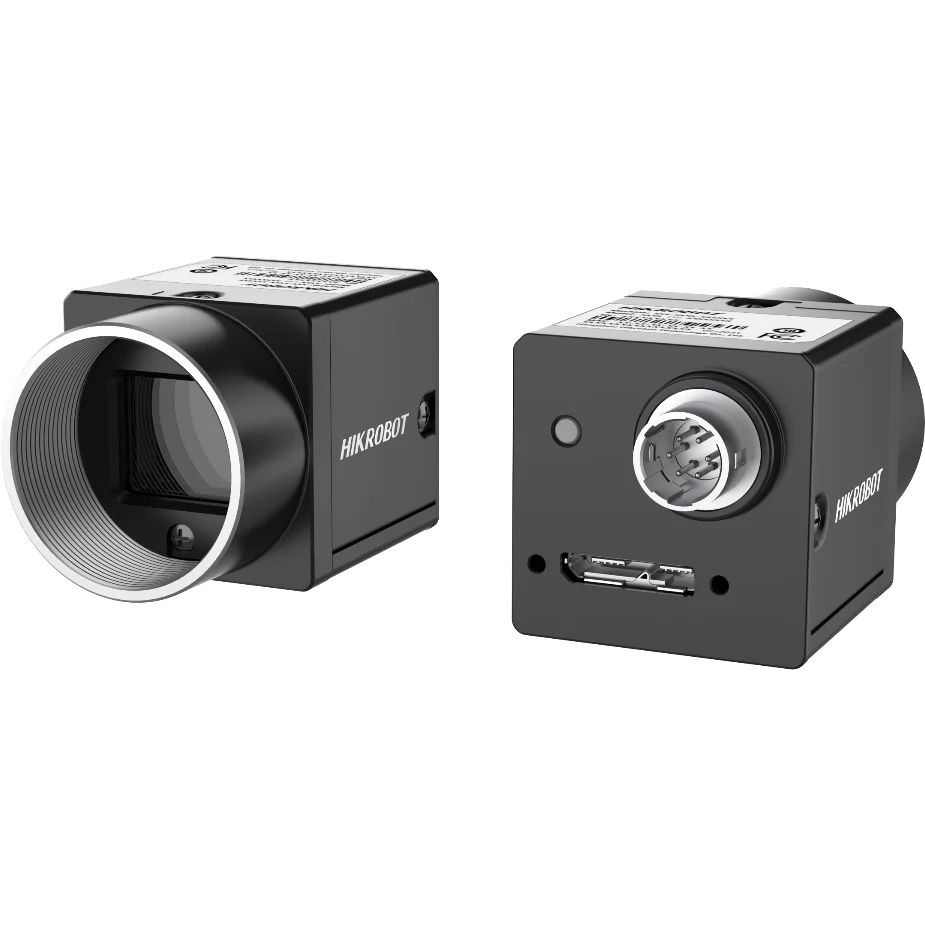

Hikrobot MV-CU120-10UM 12MP Area Scan Camera, USB3, IMX226, Mono
Model MV-CU120-10UM
Hikrobot MV-CU120-10UM 12MP Area Scan Camera, USB3, IMX226, Mono. Adopts brand new design to reduce power consumption. Supports auto or manual adjustment of gain, exposure time, manual adjustment of LUT, Gamma correction, etc.
Datasheet (PDF) - MV-CU120-10UMUser manual (PDF) - MV-CU120-10UMCAD: 3D STEP + 2D DXF (ZIP) - MV-CU120-10UM
Features
- Adopts brand new design to reduce power consumption.
- Supports auto or manual adjustment of gain, exposure time, manual adjustment of LUT, Gamma correction, etc.
- Supports customized ROI, horizontal and vertical reverse image output.
- Adopts compact design for small spatial installation.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.
Specifications
| Model | MV-CU120-10UM |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, rolling shutter |
| Sensor model | Sony® IMX226 |
| Pixel size | 1.85 μm × 1.85 μm |
| Sensor size | 1/1.7" |
| Resolution | 4024 × 3036 |
| Max. frame rate | 29.2 fps @4024 × 3036 Mono 8 |
| Dynamic range | 69.4 dB |
| SNR | 40.3 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | 20 μs to 0.5 sec |
| Exposure mode | Off/Once/Continuous exposure mode, supports Global Reset and Rolling |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB3.0, compatible with USB2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports USB3.0 power supply |
| Power consumption | Typ. 1.9 W@5 VDC (USB3.0 provides power supply) |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 76 g (0.2 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20% to 80% RH, non-condensing |
| Client software | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating system | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
| Compatibility | USB3 Vision, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.21 kg |
