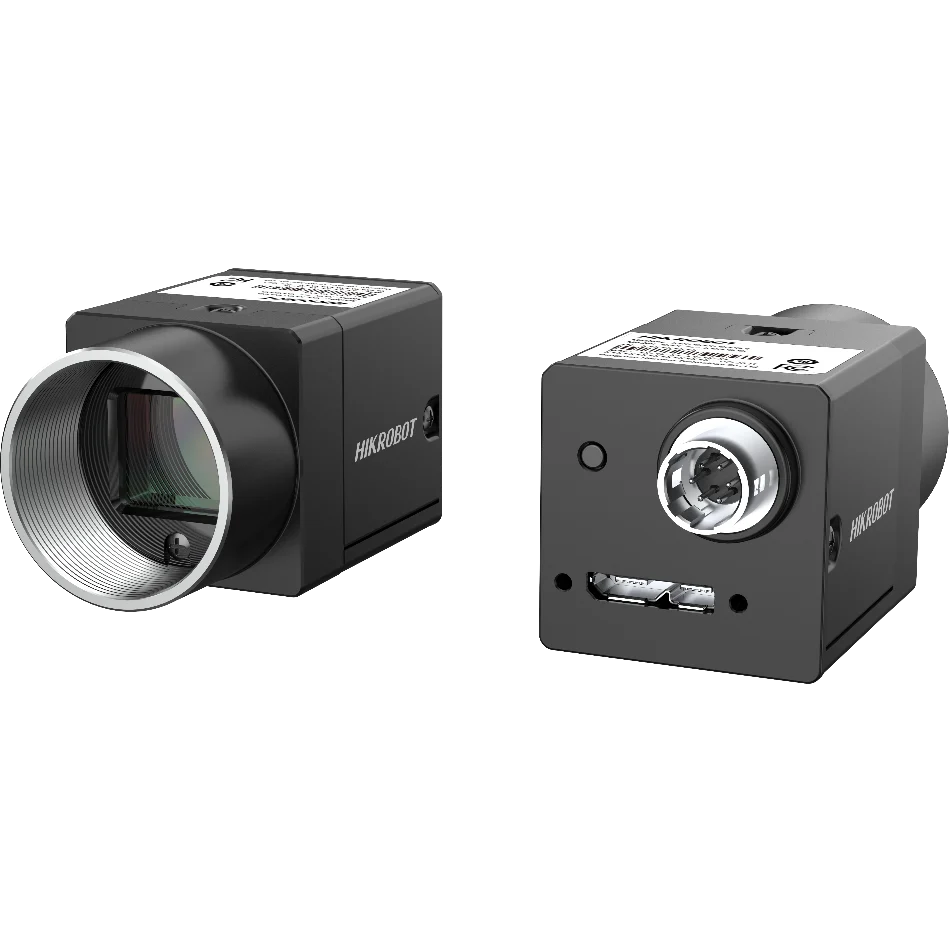

Hikrobot MV-CU050-90UC 5MP Area Scan Camera, USB3, GMAX2505, Color

Name: Hikrobot MV-CU050-90UC 5MP Area Scan Camera, USB3, GMAX2505, Color
Brand: Hikrobot
SKU: MV-CU050-90UC

Model MV-CU050-90UC

Hikrobot MV-CU050-90UC 5MP Area Scan Camera, USB3, GMAX2505, Color. Adopts brand new design to reduce power consumption. Supports auto or manual adjustment of gain, exposure time, and manual adjustment of LUT, Gamma correction, etc.

Datasheet (PDF) - MV-CU050-90UC User manual (PDF) - MV-CU050-90UC CAD: 3D STEP + 2D DXF (ZIP) - MV-CU050-90UC

Features

Adopts brand new design to reduce power consumption.
Supports auto or manual adjustment of gain, exposure time, and manual adjustment of LUT, Gamma correction, etc.
Supports customized ROI, horizontal and vertical reverse image output.
Adopts compact design for flexible installation.
Compatible with USB3 Vision Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Specifications

Model	MV-CU050-90UC
Brand	Hikrobot
Sensor type	CMOS, global shutter
Sensor model	GMAX2505
Pixel size	2.5 μm × 2.5 μm
Sensor size	1/2"
Resolution	2600 × 2160
Max. frame rate	59.8 fps @2600 × 2160 Bayer BG 8
Dynamic range	63.9 dB
SNR	37 dB
Gain	0 dB to 12 dB
Exposure time	3 μs to 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Mono/color	Color
Pixel format	Bayer BG 8/10/10Packed/12/12Packed
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output
Data interface	USB3.0, compatible with USB2.0
Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2)
Power supply	9 VDC to 24 VDC, supports USB3.0 power supply
Power consumption	Typ. 2.2 W@5 VDC ; (USB3.0 provides power supply)
Lens mount	C-mount
Dimension	29 mm × 29 mm × 35.6 mm (1.1" × 1.1" × 1.4")
Weight	Approx. 94 g (0.2 lb.)
Ingress protection	IP30 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity	20% to 80% RH, non-condensing
Client software	MVS or third-party software meeting with USB3 Vision Protocol
Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
Compatibility	USB3 Vision, GenlCam
Certification	CE, RoHS, KC
Shipping weight (estimated)	0.23 kg
