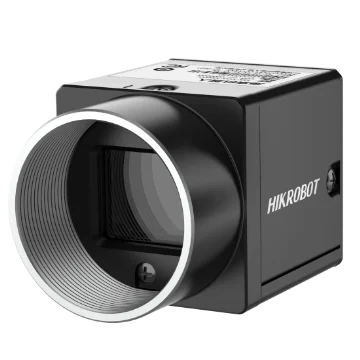

Hikrobot HIK-C020-C 2 MP 1/1.7" CMOS USB3.0 industrial area scan camera

Name: Hikrobot HIK-C020-C 2 MP 1/1.7" CMOS USB3.0 industrial area scan camera
Brand: Hikrobot
SKU: HIK-C020-C

Model HIK-C020-C

Hikrobot HIK-C020-C 2 MP 1/1.7" CMOS USB3.0 industrial area scan camera. Optimized hardware design: stable performance and low power consumption Automatic or manual gain and exposure time; manual LUT, gamma correction and more

Datasheet (PDF, Chinese) - HIK-C020-C

Features

Optimized hardware design: stable performance and low power consumption
Automatic or manual gain and exposure time; manual LUT, gamma correction and more
Custom ROI with horizontal and vertical mirroring
Compact: 29 mm × 29 mm × 30 mm for tight installation requirements
Compatible with USB3 Vision and the GenICam standard for connection to third-party software platforms

Specifications

Model	HIK-C020-C
Brand	Hikrobot
Sensor type	CMOS, global shutter
Sensor model	GMAX4002
Pixel size	4 μm×4 μm
Sensor size	1/1.7”
Resolution	2048 × 1200
Max. frame rate	150.2 fps@2048 × 1200 Bayer GB 8
Dynamic range	66.9 dB
SNR	40.8 dB
Gain	0 ~ 11.1 dB
Exposure time	4 μs ~ 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Mono/color	Color
Pixel format	Bayer GB 8/10/10Packed/12/12Packed
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output
Data interface	USB 3.0, compatible with USB 2.0
Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2)
Power supply	9 VDC to 24 VDC, supports USB 3.0 power supply
Power consumption	Typ. 2.2 W @ 5 VDC (USB3.0 provides power supply)
Lens mount	C-Mount
Dimension	29 mm × 29 mm × 30 mm
Weight	Approx. 80 g (0.2 lb.)
Ingress protection	IP30 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 80% RH (no condensation)
Client software	MVS or third-party software meeting with USB3 Vision Protocol
Operating system	Windows 7/10/11 32/64 bits, Linux 32/64 bits
Compatibility	USB3 Vision, GenlCam
Certification	CE, RoHS, KC
Shipping weight (estimated)	0.21 kg
