Fixed code readers

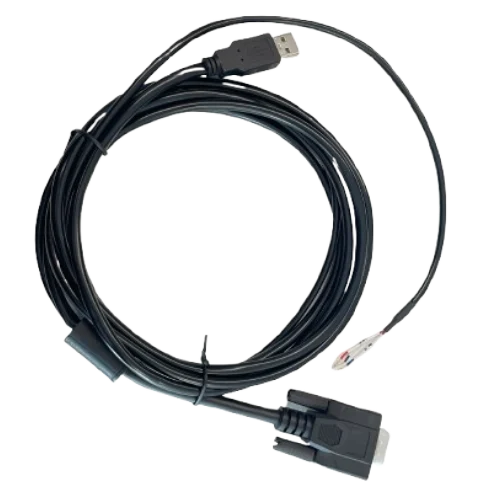

Hikrobot MV-IDAPE-HDB15M-AMOpen-HF-2m Code Reader Cables
Model MV-IDAPE-HDB15M-AMOpen-HF-2m
Hikrobot MV-IDAPE-HDB15M-AMOpen-HF-2m Code Reader Cables. DB15M USB combo cable (high-flex) for camera power, I/O signals and data transmission.
Features
- DB15M USB combo cable (high-flex) for camera power, I/O signals and data transmission.
Specifications
| Model | MV-IDAPE-HDB15M-AMOpen-HF-2m |
|---|---|
| Brand | Hikrobot |
| End A connector | DB15M |
| End B connector | USB2.0, Open |
| Cable diameter | 6.8 mm |
| Length | 2 m |
| Cable mechanical | Drag-chain cable, UL20276(26AWG*1P+AB)+26AWG*5C+AB |
| Jacket | PVC |
| Cable color | Black |
| Connector durability | >500 cycles |
| Min. bending radius | 82 mm |
| Applicable scenario | Drag chain |
| Max. U-type bending cycles | 5 million times |
| Max. voltage | 30 VDC |
| Working temperature | -20°C~80°C |
| Certification | RoHS, REACH |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.52 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guide
