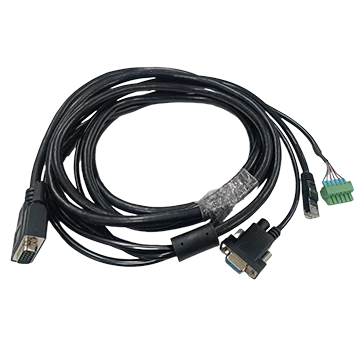

Hikrobot MV-IDA-PE-HDB15-RJ45DB9Open-HF-5m Standard DB15 power/I/O combo cable, DB15 to RJ45 male, DB9, open cable, green terminal block, 5 m, High-flex cable, Drag-chain applications
Model MV-IDA-PE-HDB15-RJ45DB9Open-HF-5m
Hikrobot MV-IDA-PE-HDB15-RJ45DB9Open-HF-5m Standard DB15 power/I/O combo cable, DB15 to RJ45 male, DB9, open cable, green terminal block, 5 m, High-flex cable, Drag-chain applications. DB15M GigE combo cable (high-flex) for camera power, I/O signals and data transmission.
Features
- DB15M GigE combo cable (high-flex) for camera power, I/O signals and data transmission.
Specifications
| Model | MV-IDA-PE-HDB15-RJ45DB9Open-HF-5m |
|---|---|
| Brand | Hikrobot |
| End A connector | DB15M |
| End B connector | RJ45, DB9F, 6-pin terminal |
| Cable diameter | 8.3 mm |
| Length | 5 m |
| Cable mechanical | Drag-chain cable, (26AWG*2P+AB)+26AWG*8C+AB |
| Jacket | PVC |
| Cable color | Black |
| Connector durability | >500 cycles |
| Min. bending radius | 66.4 mm |
| Applicable scenario | Drag chain |
| Max. U-type bending cycles | 5 million times |
| Max. voltage | 30 VDC |
| Working temperature | -20°C~80°C |
| Certification | RoHS |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.52 kg |
