Fixed code readers

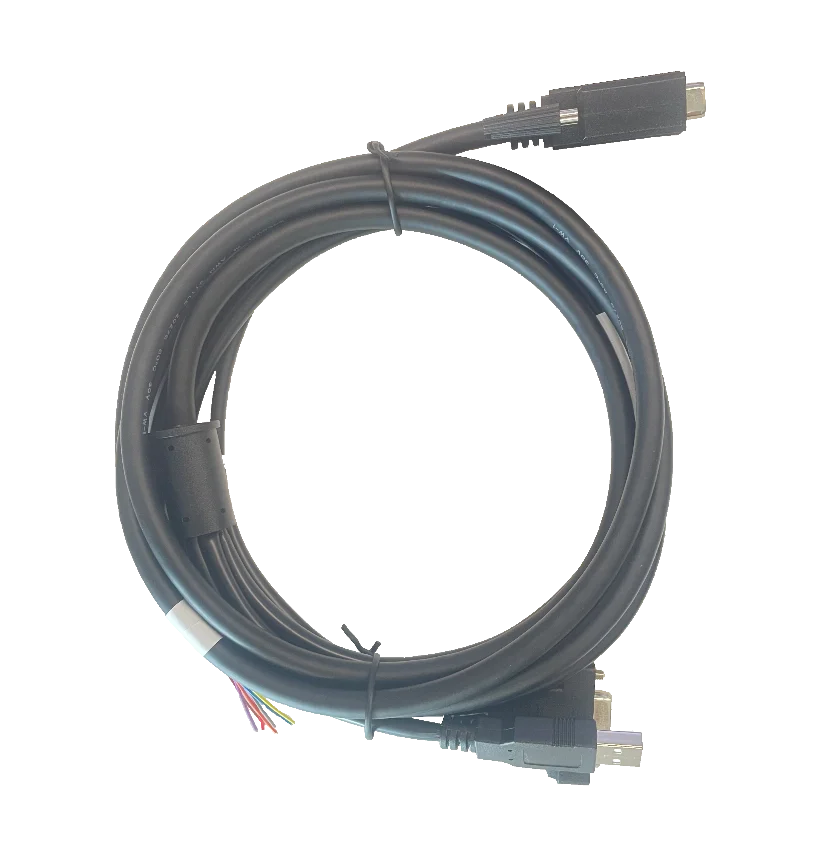

Hikrobot MV-IDAPE-DB15M-USBDB9FOPEN--ST-2m For V2.0 version 2013EM, Power/communication cable, DB15 female / USB / DB9 male / flying leads, 2 m, Static applications
Model MV-IDAPE-DB15M-USBDB9FOPEN--ST-2m
Hikrobot MV-IDAPE-DB15M-USBDB9FOPEN--ST-2m For V2.0 version 2013EM, Power/communication cable, DB15 female / USB / DB9 male / flying leads, 2 m, Static applications. DB15M U-port combo cable (standard) for camera power, input/output signals and data transmission
Features
- DB15M U-port combo cable (standard) for camera power, input/output signals and data transmission
Specifications
| Model | MV-IDAPE-DB15M-USBDB9FOPEN--ST-2m |
|---|---|
| Brand | Hikrobot |
| End A connector | DB15M |
| End B connector | DB9F, USB, Open |
| Cable diameter | 7.0 mm |
| Length | 2 m |
| Cable mechanical | UL20276(26AWG*1P+AB)+26AWG*11C+AB |
| Jacket | PVC |
| Cable color | Black |
| Connector durability | >500 cycles |
| Min. bending radius | 84 mm |
| Applicable scenario | Static scenes |
| Max. voltage | 30 VDC |
| Working temperature | -20°C~75°C |
| Certification | RoHS |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.52 kg |
