Fixed code readers

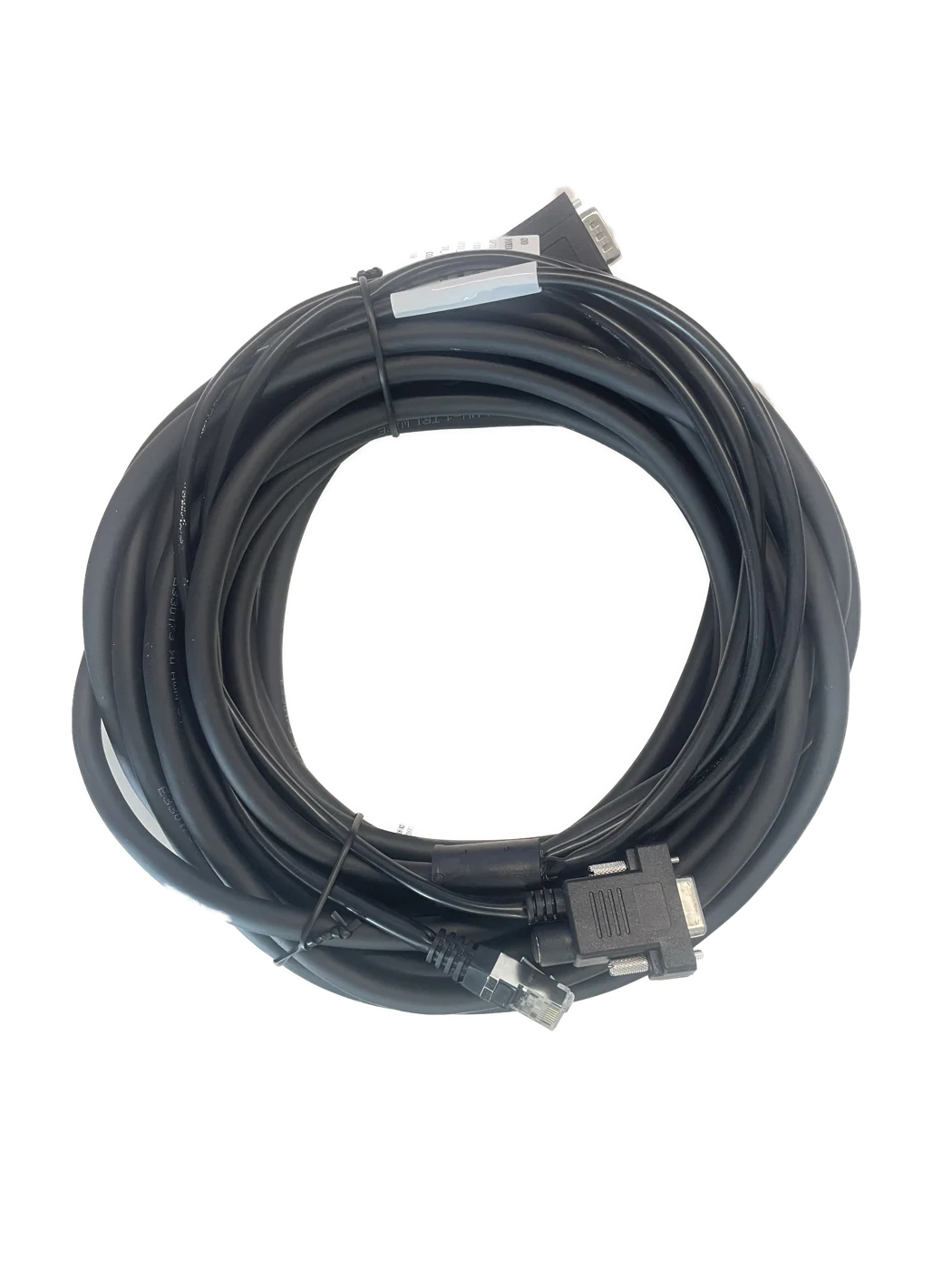

Hikrobot MV-IDAPE-DB15M-DB9FRJ45OPEN-HF-7m 2013EM V2.0 power/communication cable, DB15 male to flying leads/DB9 female/RJ45 male, 7 m, Drag-chain applications
Model MV-IDAPE-DB15M-DB9FRJ45OPEN-HF-7m
Hikrobot MV-IDAPE-DB15M-DB9FRJ45OPEN-HF-7m 2013EM V2.0 power/communication cable, DB15 male to flying leads/DB9 female/RJ45 male, 7 m, Drag-chain applications. DB15M to RJ45 Ethernet combo cable (high-flex) for camera power, input/output signals and data transmission
Features
- DB15M to RJ45 Ethernet combo cable (high-flex) for camera power, input/output signals and data transmission
Specifications
| Model | MV-IDAPE-DB15M-DB9FRJ45OPEN-HF-7m |
|---|---|
| Brand | Hikrobot |
| End A connector | DB15M |
| End B connector | DB9F, RJ45, Open |
| Cable diameter | 8.2 mm |
| Length | 7 m |
| Cable mechanical | Drag-chain cable, UL20276(26AWG*2P+AB)+26AWG*10C+AB |
| Jacket | PVC |
| Cable color | Black |
| Connector durability | >500 cycles |
| Min. bending radius | 98 mm |
| Applicable scenario | Drag chain |
| Max. U-type bending cycles | 5 million times |
| Max. voltage | 30 VDC |
| Working temperature | -20°C~80°C |
| Certification | RoHS |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.52 kg |
