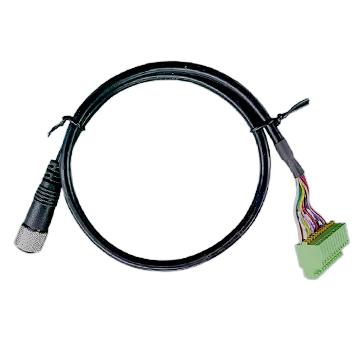

Hikrobot MV-IDA-P-M12A17pF-Open-ST-0.5m Standard 17-pin power cable, 17-pin circular connector to open-end cable, 0.5 m, Static applications
Model MV-IDA-P-M12A17pF-Open-ST-0.5m
Hikrobot MV-IDA-P-M12A17pF-Open-ST-0.5m Standard 17-pin power cable, 17-pin circular connector to open-end cable, 0.5 m, Static applications. 17-pin M12 to open-end cable (standard) for camera power, I/O signals and data transmission.
Features
- 17-pin M12 to open-end cable (standard) for camera power, I/O signals and data transmission.
Specifications
| Model | MV-IDA-P-M12A17pF-Open-ST-0.5m |
|---|---|
| Brand | Hikrobot |
| End A connector | 17-Pin M12 |
| End B connector | 12-pin terminal |
| Cable diameter | 5.8 mm |
| Length | 0.5 m |
| Cable mechanical | UL2517, 26AWG*12C |
| Jacket | PVC |
| Cable color | Black |
| Connector durability | >500 cycles |
| Min. bending radius | 46.4 mm |
| Applicable scenario | Static scenes |
| Max. voltage | 30 VDC |
| Working temperature | -20°C~80°C |
| Certification | RoHS |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.52 kg |
