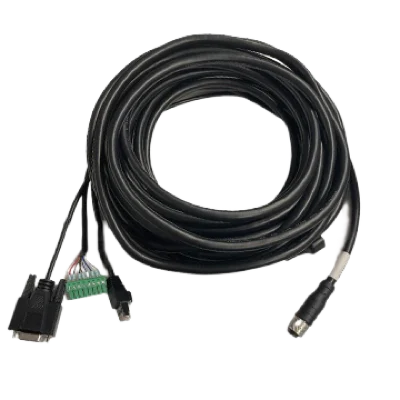

Hikrobot MV-IDA-PE-M12A17pF-openRJ45DB9-SF-5m Power/IO/communication combo cable, Ultra-flex, 5 m, 17-pin to open/RJ45/DB9
Model MV-IDA-PE-M12A17pF-openRJ45DB9-SF-5m
Hikrobot MV-IDA-PE-M12A17pF-openRJ45DB9-SF-5m Power/IO/communication combo cable, Ultra-flex, 5 m, 17-pin to open/RJ45/DB9. 17-pin M12 ultra-flex GigE combo cable for camera power, I/O signals and data transmission.
Features
- 17-pin M12 ultra-flex GigE combo cable for camera power, I/O signals and data transmission.
Specifications
| Model | MV-IDA-PE-M12A17pF-openRJ45DB9-SF-5m |
|---|---|
| Brand | Hikrobot |
| End A connector | M12 17-pin A-code male |
| End B connector | RJ45, DB9F, 8-pin terminal |
| Cable diameter | 8.5 mm |
| Length | 5 m |
| Cable mechanical | UL20276 (2P*26AWG+FNB)*1C+13C*26AWG+F+NON-WOVEN+B |
| Jacket | PVC |
| Cable color | Black |
| Connector durability | >500 cycles |
| Min. bending radius | 68 mm |
| Applicable scenario | Drag-chain: 1000 × 10⁴ cycles; Bending: 300 × 10⁴ cycles; Torsion: 500 × 10⁴ cycles |
| Max. voltage | 30 VDC |
| Working temperature | -20°C~80°C |
| Certification | RoHS, UL |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.52 kg |
