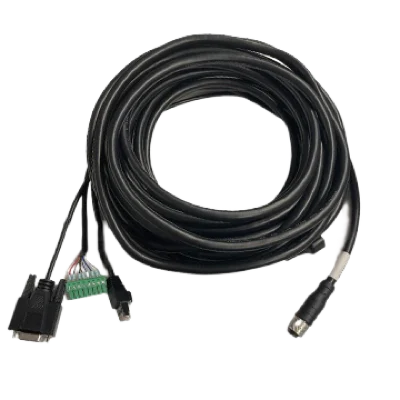

Hikrobot MV-IDA-PE-M12A17pF-openRJ45DB9-HF-15m Integrated cable, GigE, high-flex, 15 m, 17-pin to open/RJ45/DB9

Fixed code readers

Hikrobot MV-IDA-PE-M12A17pF-openRJ45DB9-HF-15m Integrated cable, GigE, high-flex, 15 m, 17-pin to open/RJ45/DB9

Model MV-IDA-PE-M12A17pF-openRJ45DB9-HF-15m

Hikrobot MV-IDA-PE-M12A17pF-openRJ45DB9-HF-15m Integrated cable, GigE, high-flex, 15 m, 17-pin to open/RJ45/DB9. 17-pin M12 high-flex Ethernet combo cable for camera power, input/output signals and data transmission

Price on request
0.52 kg shipping weight · Ships in 2-3 weeks
  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day
Datasheet (PDF, Chinese) - MV-IDA-PE-M12A17pF-openRJ45DB9-HF-15m

Features

  • 17-pin M12 high-flex Ethernet combo cable for camera power, input/output signals and data transmission

Specifications

ModelMV-IDA-PE-M12A17pF-openRJ45DB9-HF-15m
BrandHikrobot
End A connectorM12 17-pin A-code male
End B connectorRJ45, DB9F, 8-pin terminal
Cable diameter8.5 mm
Length15 m
Cable mechanicalUL20276 (26AWG*2P+AB)+26AWG*11C+26AWG*2C+AB
JacketPVC
Cable colorBlack
Connector durability>500 cycles
Min. bending radius68 mm
Applicable scenarioDrag chain
Max. U-type bending cycles5 million times
Max. voltage30 VDC
Working temperature-20°C~80°C
CertificationRoHS, UL
PackagingIndividual package
Shipping weight (estimated)0.52 kg
