Fixed code readers

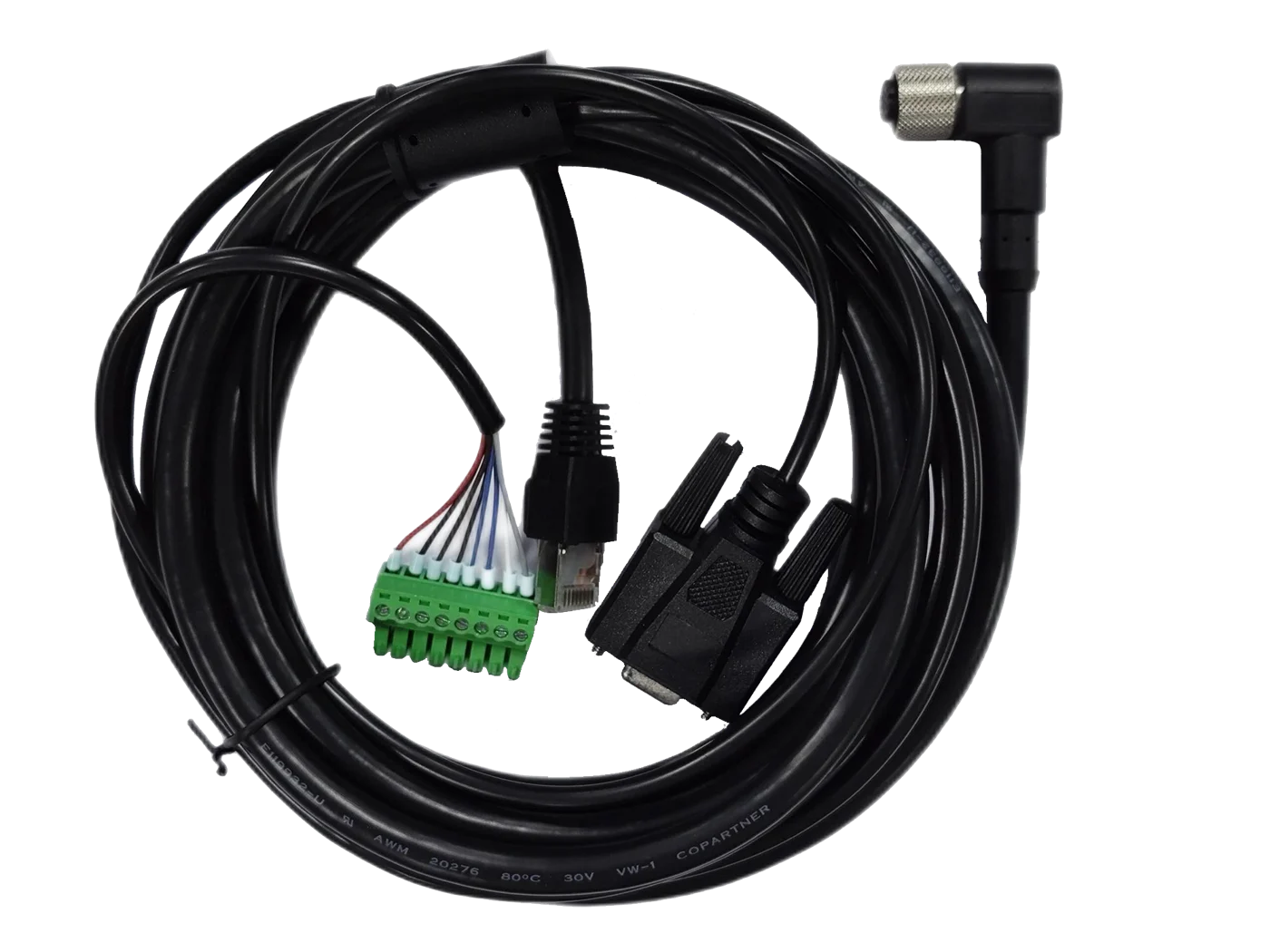

Hikrobot MV-IDA-PE-M12A17pF(UP)-openRJ45DB9-ST-10m Integrated-cable Ethernet port, static, 90°, 10 m, 17-pin to open/RJ45/DB9
Model MV-IDA-PE-M12A17pF(UP)-openRJ45DB9-ST-10m
Hikrobot MV-IDA-PE-M12A17pF(UP)-openRJ45DB9-ST-10m Integrated-cable Ethernet port, static, 90°, 10 m, 17-pin to open/RJ45/DB9. 17-pin M12 right-angle standard Ethernet combo cable for camera power, input/output signals and data transmission
Features
- 17-pin M12 right-angle standard Ethernet combo cable for camera power, input/output signals and data transmission
Specifications
| Model | MV-IDA-PE-M12A17pF(UP)-openRJ45DB9-ST-10m |
|---|---|
| Brand | Hikrobot |
| End A connector | M12 17-pin A-code male |
| End B connector | RJ45, DB9F, 8-pin terminal |
| Cable diameter | 8 mm |
| Length | 10 m |
| Cable mechanical | UL20276(26#*2P+AB)+26#*11C+26#*2C+AB |
| Jacket | PVC |
| Cable color | Black |
| Connector durability | >500 cycles |
| Min. bending radius | 68 mm |
| Applicable scenario | Static scenes |
| Max. voltage | 30 VDC |
| Working temperature | -20°C~80°C |
| Certification | RoHS, UL |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.52 kg |
