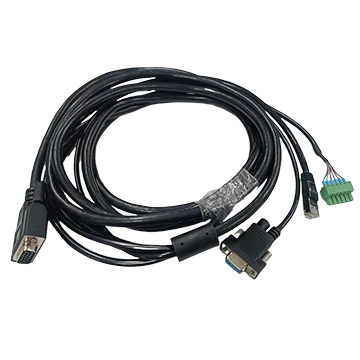

Hikrobot MV-IDA-PE-HDB15-RJ45DB9Open-ST-5m Standard DB15 power/I/O combo cable, DB15 to RJ45 male, DB9, open cable, green terminal block, 5 m, Static cable
Model MV-IDA-PE-HDB15-RJ45DB9Open-ST-5m
Hikrobot MV-IDA-PE-HDB15-RJ45DB9Open-ST-5m Standard DB15 power/I/O combo cable, DB15 to RJ45 male, DB9, open cable, green terminal block, 5 m, Static cable. DB15M Ethernet combo cable (standard) for camera power, input/output signals and data transmission
Features
- DB15M Ethernet combo cable (standard) for camera power, input/output signals and data transmission
Specifications
| Model | MV-IDA-PE-HDB15-RJ45DB9Open-ST-5m |
|---|---|
| Brand | Hikrobot |
| End A connector | DB15M |
| End B connector | RJ45, DB9F, 6-pin terminal |
| Cable diameter | 7.8 mm |
| Length | 5 m |
| Cable mechanical | UL20276, (26AWG*2P+AB)+26AWG*8C+AB |
| Jacket | PVC |
| Cable color | Black |
| Connector durability | >500 cycles |
| Min. bending radius | 62.4 mm |
| Applicable scenario | Static scenes |
| Max. voltage | 30 VDC |
| Working temperature | -20°C~80°C |
| Certification | RoHS, UL |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.52 kg |
