Fixed code readers

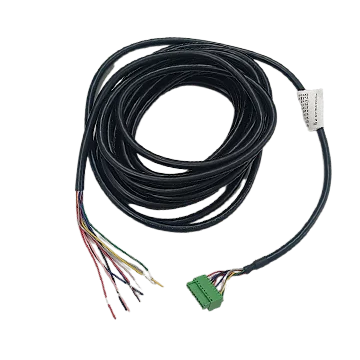

Hikrobot MV-IDA-PE-Open10p-Open-ST-7m Standard 10-pin IO cable, 10-pin open-end to 10-pin open-end cable, 7 m, Static applications
Model MV-IDA-PE-Open10p-Open-ST-7m
Hikrobot MV-IDA-PE-Open10p-Open-ST-7m Standard 10-pin IO cable, 10-pin open-end to 10-pin open-end cable, 7 m, Static applications. 10-pin terminal to open-end cable (standard) for camera power, I/O signals and data transmission.
Features
- 10-pin terminal to open-end cable (standard) for camera power, I/O signals and data transmission.
Specifications
| Model | MV-IDA-PE-Open10p-Open-ST-7m |
|---|---|
| Brand | Hikrobot |
| End A connector | 10-pin terminal |
| End B connector | Open |
| Cable diameter | 7 mm |
| Length | 7 m |
| Cable mechanical | UL2517, 26AWG*10C |
| Jacket | PVC |
| Cable color | Black |
| Connector durability | >500 cycles |
| Min. bending radius | 84 mm |
| Applicable scenario | Static scenes |
| Max. voltage | 30 VDC |
| Working temperature | -20°C~80°C |
| Certification | RoHS |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.52 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guide
