Fixed code readers

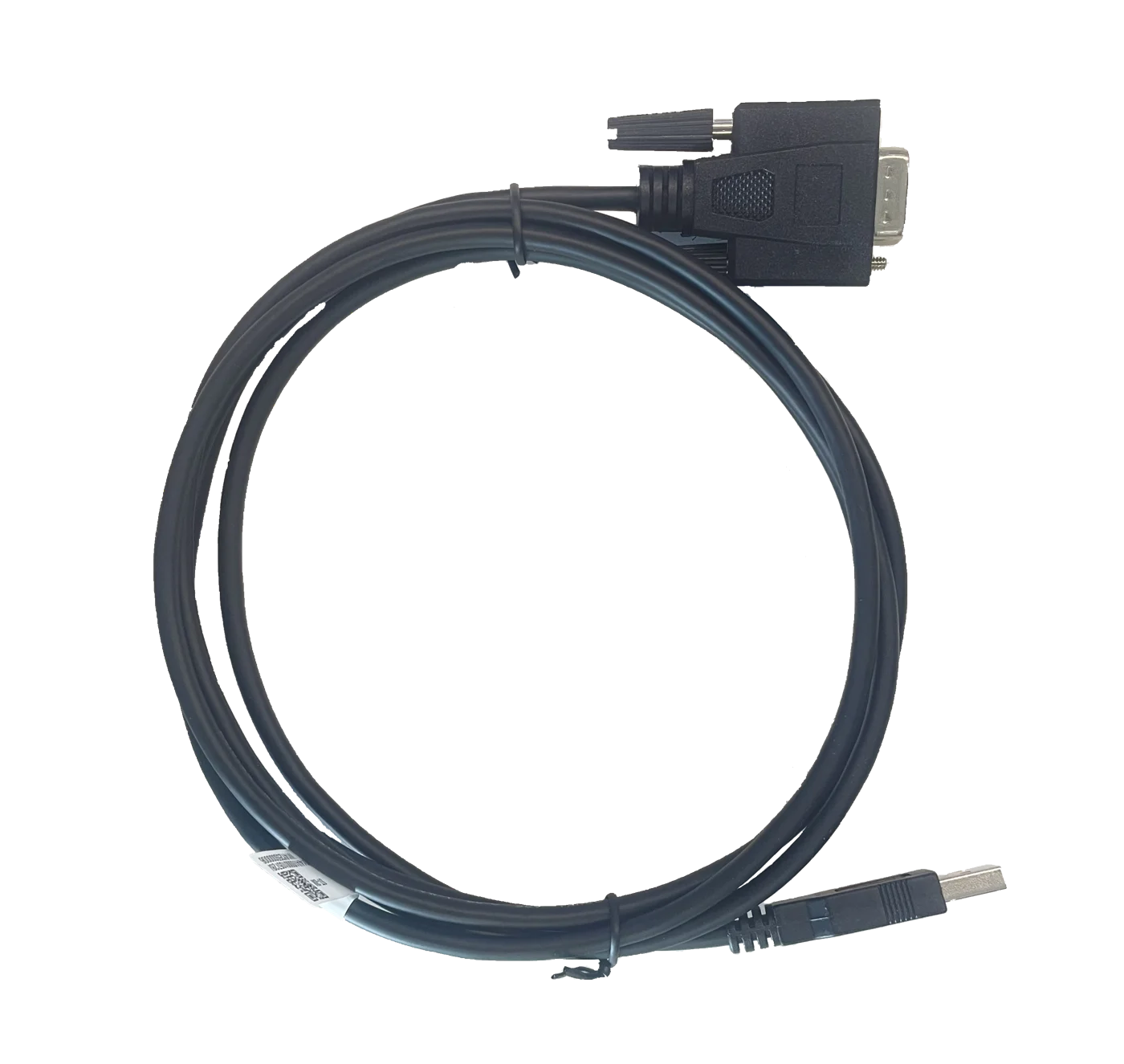

Hikrobot MV-IDAPE-DB15M-USB--ST-2m For 2013EM V2.0, Power/communication cable, DB15 female to USB, 2 m, Static applications
Model MV-IDAPE-DB15M-USB--ST-2m
Hikrobot MV-IDAPE-DB15M-USB--ST-2m For 2013EM V2.0, Power/communication cable, DB15 female to USB, 2 m, Static applications. DB15M U-port connection cable (standard) for camera power and data transmission
Features
- DB15M U-port connection cable (standard) for camera power and data transmission
Specifications
| Model | MV-IDAPE-DB15M-USB--ST-2m |
|---|---|
| Brand | Hikrobot |
| End A connector | DB15M |
| End B connector | USB2.0 |
| Cable diameter | 4.5 mm |
| Length | 2 m |
| Cable mechanical | UL2725, 26AWG*1P+26AWG*2C+AB |
| Jacket | PVC |
| Cable color | Black |
| Connector durability | >500 cycles |
| Min. bending radius | 54 mm |
| Applicable scenario | Static scenes |
| Max. voltage | 30 VDC |
| Working temperature | -20°C~80°C |
| Certification | RoHS |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.52 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guide
