Fixed code readers

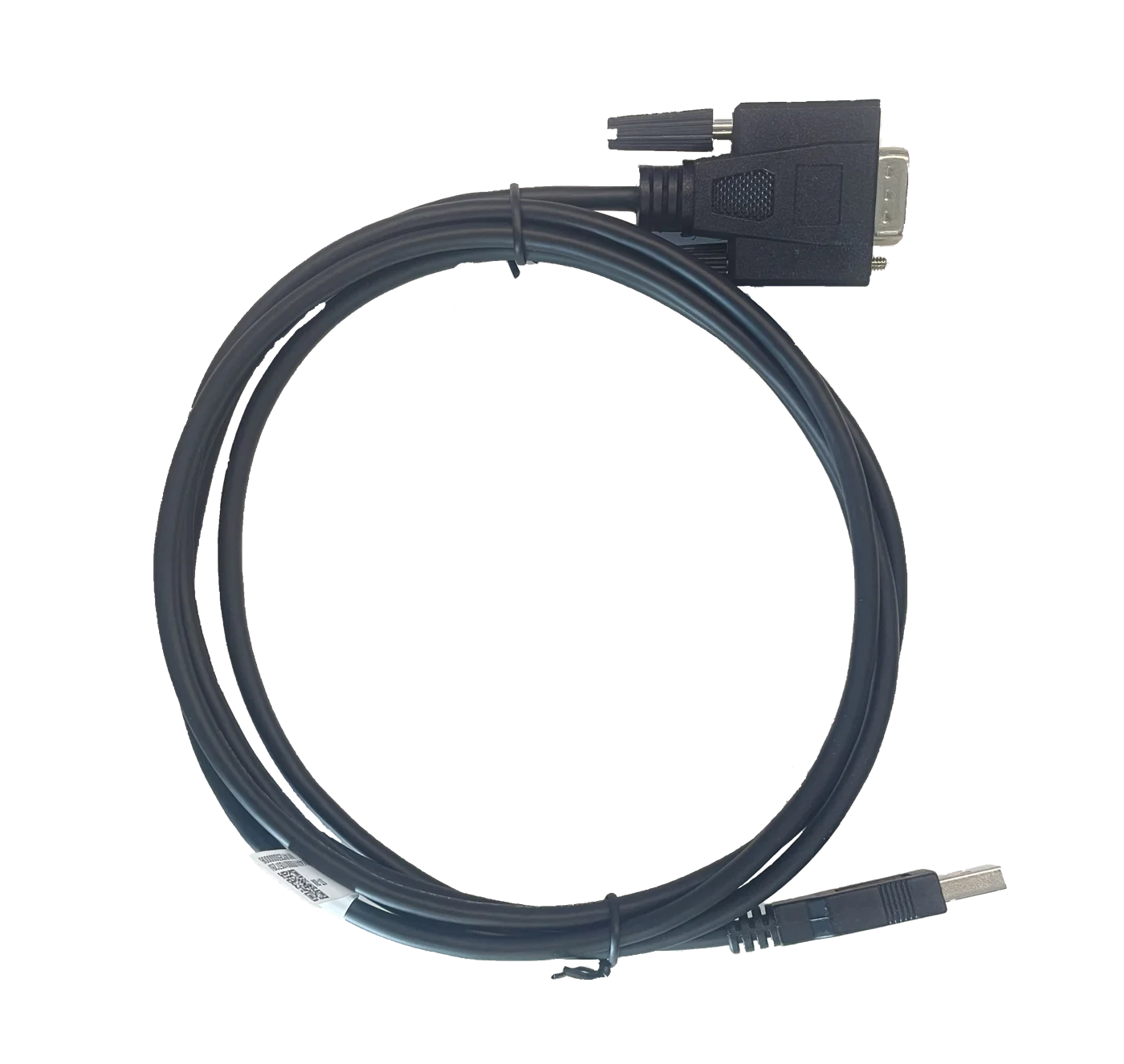

Hikrobot MV-IDA-PE-HDB15-USB-ST-2m Standard DB15 power/I/O combo cable, DB15 to USB2.0, 2 m, Static cable
Model MV-IDA-PE-HDB15-USB-ST-2m
Hikrobot MV-IDA-PE-HDB15-USB-ST-2m Standard DB15 power/I/O combo cable, DB15 to USB2.0, 2 m, Static cable. DB15M U-port connection cable (standard) for camera power and data transmission
Features
- DB15M U-port connection cable (standard) for camera power and data transmission
Specifications
| Model | MV-IDA-PE-HDB15-USB-ST-2m |
|---|---|
| Brand | Hikrobot |
| End A connector | DB15M |
| End B connector | USB2.0 |
| Cable diameter | 4.5 mm |
| Length | 2 m |
| Cable mechanical | UL2725, 26AWG*1P+26AWG*2C+AB |
| Jacket | PVC |
| Cable color | Black |
| Connector durability | >500 cycles |
| Min. bending radius | 54 mm |
| Applicable scenario | Static scenes |
| Max. voltage | 30 VDC |
| Working temperature | -20°C~80°C |
| Certification | RoHS |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.52 kg |
