Fixed code readers

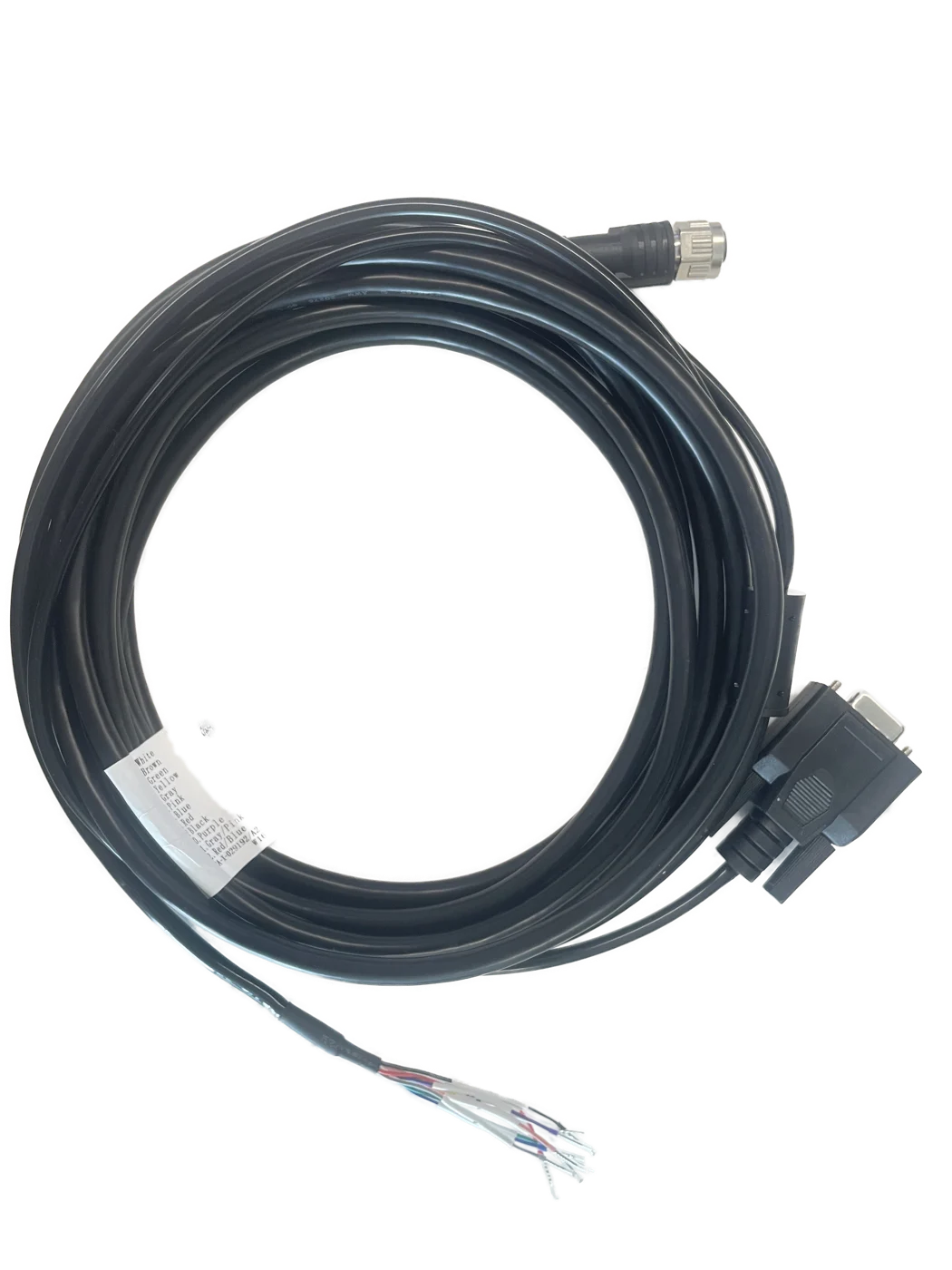

Hikrobot MV-IDAP-M12A12F-DB9Fopen-ST-3m Power cable, M12 A-coded 12-pin female to DB9 female + open leads, 3 m, Static applications
Model MV-IDAP-M12A12F-DB9Fopen-ST-3m
Hikrobot MV-IDAP-M12A12F-DB9Fopen-ST-3m Power cable, M12 A-coded 12-pin female to DB9 female + open leads, 3 m, Static applications. 12-pin M12 to DB9 combo power cable for camera power and I/O input/output signals
Features
- 12-pin M12 to DB9 combo power cable for camera power and I/O input/output signals
Specifications
| Model | MV-IDAP-M12A12F-DB9Fopen-ST-3m |
|---|---|
| Brand | Hikrobot |
| End A connector | M12A-code 12-pin female |
| End B connector | DB9F |
| Cable diameter | 6.2 mm |
| Length | 3 m |
| Cable mechanical | UL20276, 26AWG*12C+AB |
| Jacket | PVC |
| Cable color | Black |
| Connector durability | >500 cycles |
| Min. bending radius | 75 mm |
| Max. voltage | 30 VDC |
| Working temperature | -20°C~75°C |
| Certification | RoHS |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.52 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guide
