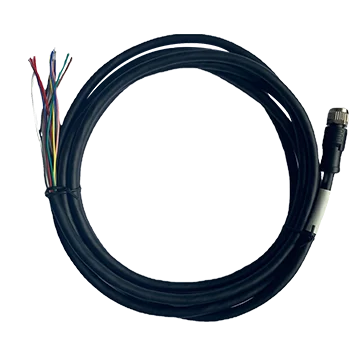

Hikrobot MV-IDA-P-M12A12pF-open-ST-10m Power cable, static, 10 m, 12-pin to open end
Model MV-IDA-P-M12A12pF-open-ST-10m
Hikrobot MV-IDA-P-M12A12pF-open-ST-10m Power cable, static, 10 m, 12-pin to open end. 12-pin M12 standard I/O & power cable for camera power and I/O input/output signals; available in multiple lengths
Features
- 12-pin M12 standard I/O & power cable for camera power and I/O input/output signals; available in multiple lengths
Specifications
| Model | MV-IDA-P-M12A12pF-open-ST-10m |
|---|---|
| Brand | Hikrobot |
| End A connector | M12 12-pin A-code female |
| End B connector | Open end (12-core) |
| Cable diameter | 7.0 mm |
| Length | 10 m |
| Cable mechanical | 26#*12C |
| Jacket | PVC |
| Cable color | Black |
| Connector durability | >500 mating cycles |
| Min. bending radius | 84 mm |
| Applicable scenario | Static scenes |
| Max. voltage | 30 VDC |
| Working temperature | -20°C~ 75°C |
| Certification | RoHS, UL |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.52 kg |
