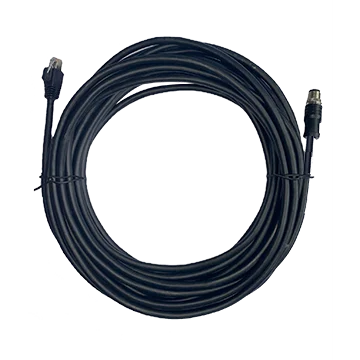

Hikrobot MV-IDA-E-M12A8pF-RJ45-HF-3m Ethernet cable, high-flex, 3 m, 8-pin to RJ45
Model MV-IDA-E-M12A8pF-RJ45-HF-3m
Hikrobot MV-IDA-E-M12A8pF-RJ45-HF-3m Ethernet cable, high-flex, 3 m, 8-pin to RJ45. M12 high-flex Gigabit Ethernet cable for network data transmission; available in multiple lengths
Features
- M12 high-flex Gigabit Ethernet cable for network data transmission; available in multiple lengths
Specifications
| Model | MV-IDA-E-M12A8pF-RJ45-HF-3m |
|---|---|
| Brand | Hikrobot |
| End A connector | M12 8-pin A-code male |
| End B connector | RJ45 |
| Cable diameter | 6.5 mm |
| Length | 3 m |
| Cable mechanical | 26#*4P |
| Jacket | PVC |
| Cable color | Black |
| Connector durability | >500 cycles |
| Min. bending radius | 78 mm |
| Applicable scenario | Drag chain |
| Max. U-type bending cycles | 5 million times |
| Max. voltage | 30 VDC |
| Working temperature | -20°C~ 75°C |
| Certification | RoHS, UL |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.52 kg |
