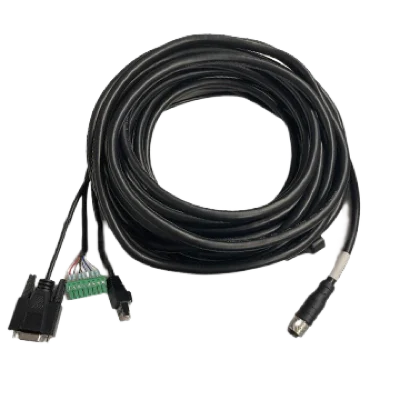

Hikrobot MV-IDA-PE-M12A17pF-openRJ45DB9-HF-3m Integrated cable, GigE, high-flex, 3 m, 17-pin to open/RJ45/DB9
Model MV-IDA-PE-M12A17pF-openRJ45DB9-HF-3m
Hikrobot MV-IDA-PE-M12A17pF-openRJ45DB9-HF-3m Integrated cable, GigE, high-flex, 3 m, 17-pin to open/RJ45/DB9. 17-pin M12 high-flex Ethernet combo cable for camera power, input/output signals and data transmission
Features
- 17-pin M12 high-flex Ethernet combo cable for camera power, input/output signals and data transmission
Specifications
| Model | MV-IDA-PE-M12A17pF-openRJ45DB9-HF-3m |
|---|---|
| Brand | Hikrobot |
| End A connector | M12 17-pin A-code male |
| End B connector | RJ45, DB9F, 8-pin terminal |
| Cable diameter | 8.5 mm |
| Length | 3 m |
| Cable mechanical | UL20276 (26AWG*2P+AB)+26AWG*11C+26AWG*2C+AB |
| Jacket | PVC |
| Cable color | Black |
| Connector durability | >500 cycles |
| Min. bending radius | 68 mm |
| Applicable scenario | Drag chain |
| Max. U-type bending cycles | 5 million times |
| Max. voltage | 30 VDC |
| Working temperature | -20°C~80°C |
| Certification | RoHS, UL |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.52 kg |
