Fixed code readers

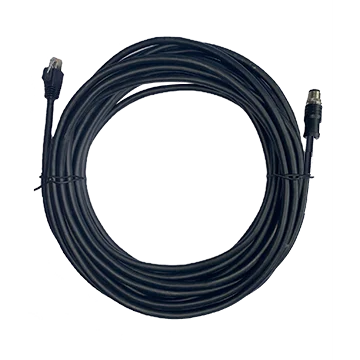

Hikrobot MV-IDA-E-M12A8pF-RJ45-ST-30m Ethernet cable, static, 30 m, 8-pin to RJ45
Model MV-IDA-E-M12A8pF-RJ45-ST-30m
Hikrobot MV-IDA-E-M12A8pF-RJ45-ST-30m Ethernet cable, static, 30 m, 8-pin to RJ45. M12 standard Gigabit Ethernet cable for network data transmission; available in multiple lengths
Features
- M12 standard Gigabit Ethernet cable for network data transmission; available in multiple lengths
Specifications
| Model | MV-IDA-E-M12A8pF-RJ45-ST-30m |
|---|---|
| Brand | Hikrobot |
| End A connector | M12 8-pin A-code male |
| End B connector | RJ45 |
| Cable diameter | 6.6 mm |
| Length | 30 m |
| Cable mechanical | 24#*4P |
| Jacket | PVC |
| Cable color | Black |
| Connector durability | >500 mating cycles |
| Min. bending radius | 79.2 mm |
| Applicable scenario | Static scenes |
| Max. voltage | 30 VDC |
| Working temperature | -20°C~ 75°C |
| Certification | RoHS, UL |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.52 kg |
