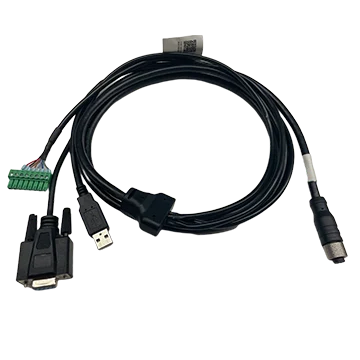

Hikrobot MV-IDA-PE-M12A17pF-openU2DB9-HF-2m Integrated cable, USB, high-flex, 2 m, 17-pin to open/U2/DB9
Model MV-IDA-PE-M12A17pF-openU2DB9-HF-2m
Hikrobot MV-IDA-PE-M12A17pF-openU2DB9-HF-2m Integrated cable, USB, high-flex, 2 m, 17-pin to open/U2/DB9. 17-pin M12 high-flex USB combo cable for camera power, I/O signals and data transmission.
Features
- 17-pin M12 high-flex USB combo cable for camera power, I/O signals and data transmission.
Specifications
| Model | MV-IDA-PE-M12A17pF-openU2DB9-HF-2m |
|---|---|
| Brand | Hikrobot |
| End A connector | M12 17-pin A-code female |
| End B connector | USB2.0, DB9F, 8-pin terminal |
| Cable diameter | 7.2 mm |
| Length | 2 m |
| Cable mechanical | UL20276 (26AWG*1P+AB)+26AWG*10C+AB |
| Jacket | PVC |
| Cable color | Black |
| Connector durability | >500 cycles |
| Min. bending radius | 57.6 mm |
| Applicable scenario | Drag chain |
| Max. U-type bending cycles | 5 million times |
| Max. voltage | 30 VDC |
| Working temperature | -20°C~80°C |
| Certification | RoHS, UL |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.52 kg |
