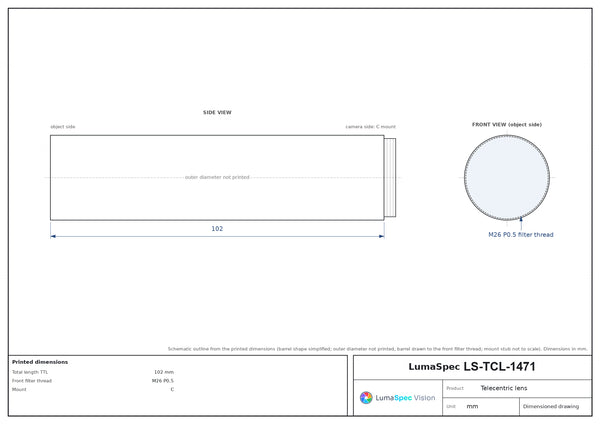

1.108x, WD 24 mm, 1.1", C-mount telecentric lens
LS-TCL-1471
- Magnification 1.108x
- Mount C-mount
- Sensor 1.1"
$1,189.00
Ships in 2-3 weeks
Shop by part
Lenses
Machine-vision lenses for every camera: fixed-focal C-mount, telecentric for measuring, line-scan, M12 board, 360-degree and thermal / SWIR / UV optics. Start from your camera's mount and sensor format.
Choose a category
-
Machine vision lensesFixed and zoom lenses, C-mount to M721651 models
-
Telecentric lensesConstant magnification for measuring2965 models
-
Line scan lensesFor 2K-16K and 100 MP+ line cameras245 models
-
M12 board lensesS-mount lenses for board cameras195 models
-
360° inspection lensesWhole outer wall or bore in one shot113 models
-
Thermal, SWIR & UV lensesLWIR, 900-1700 nm and UV282 models
-
CCTV lensesVarifocal, fisheye and zoom for security158 models
Products
2.8x, WD 90 mm, 2", M58-mount telecentric lens, length 300.9 mm
LS-TCL-1400
- Magnification 2.8x
- Mount M58
- Sensor 2"
$1,239.00
Ships in 2-3 weeks
2.8x, WD 90 mm, 2", M42-mount telecentric lens, length 300.9 mm
LS-TCL-1399
- Magnification 2.8x
- Mount M42
- Sensor 2"
$1,239.00
Ships in 2-3 weeks
2.8x, WD 90 mm, 2", M58-mount telecentric lens, length 300.8 mm
LS-TCL-1398
- Magnification 2.8x
- Mount M58
- Sensor 2"
$1,239.00
Ships in 2-3 weeks
2.8x, WD 90 mm, 2", M42-mount telecentric lens, length 300.8 mm
LS-TCL-1397
- Magnification 2.8x
- Mount M42
- Sensor 2"
$1,239.00
Ships in 2-3 weeks

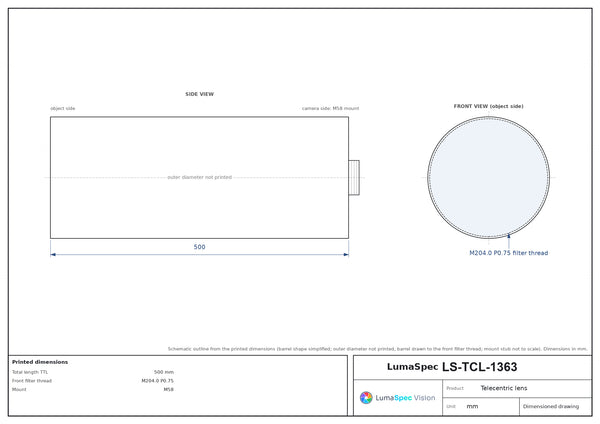

0.2514x, WD 328 mm, M58-mount telecentric lens
LS-TCL-1363
- Magnification 0.2514x
- Mount M58
- Sensor Full frame
$4,829.00
Ships in 2-3 weeks

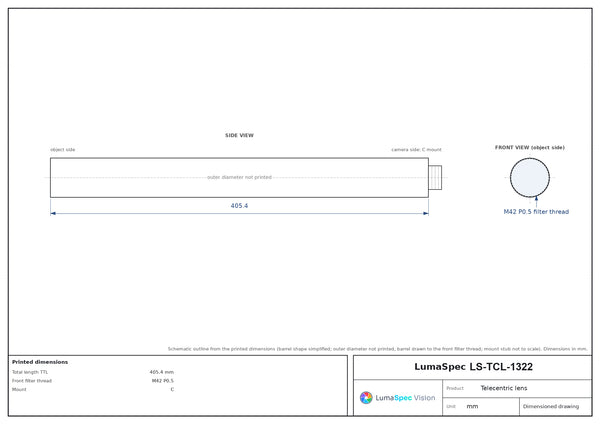

0.095x, WD 318 mm, 1", C-mount telecentric lens
LS-TCL-1322
- Magnification 0.095x
- Mount C-mount
- Sensor 1"
$4,849.00
Ships in 2-3 weeks
0.1536x, WD 215 mm, 2", M42-mount telecentric lens
LS-TCL-1325
- Magnification 0.1536x
- Mount M42
- Sensor 2"
$5,889.00Quote
Ships in 2-3 weeks
0.075x, WD 220 mm, 1", C-mount telecentric lens, DOF ±30.9@F4.35
LS-TCL-1323
- Magnification 0.075x
- Mount C-mount
- Sensor 1"
$5,879.00Quote
Ships in 2-3 weeks

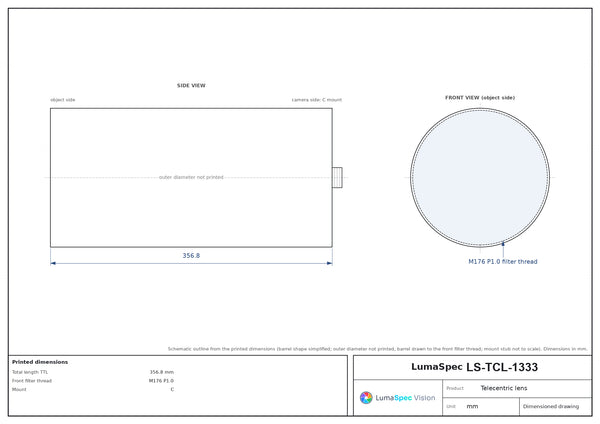

0.115x, WD 336 mm, 1.1", C-mount telecentric lens
LS-TCL-1333
- Magnification 0.115x
- Mount C-mount
- Sensor 1.1"
$4,329.00
Ships in 2-3 weeks
0.135x, WD 288 mm, 1.1", C-mount telecentric lens, length 389.6 mm
LS-TCL-1332
- Magnification 0.135x
- Mount C-mount
- Sensor 1.1"
$3,939.00
Ships in 2-3 weeks
0.135x, WD 288 mm, 1.1", C-mount telecentric lens, length 399.5 mm
LS-TCL-1331
- Magnification 0.135x
- Mount C-mount
- Sensor 1.1"
$3,939.00
Ships in 2-3 weeks
0.1559x, WD 300 mm, 1", C-mount telecentric lens
LS-TCL-1320
- Magnification 0.1559x
- Mount C-mount
- Sensor 1"
$3,249.00
Ships in 2-3 weeks
0.111x, WD 203 mm, 2/3", C-mount telecentric lens
LS-TCL-1394
- Magnification 0.111x
- Mount C-mount
- Sensor 2/3"
$3,169.00
Ships in 2-3 weeks
0.86x, WD 198 mm, M95-mount telecentric lens
LS-TCL-1352
- Magnification 0.86x
- Mount M95
- Sensor Large format
$2,999.00
Ships in 2-3 weeks
0.462x, WD 378 mm, M58-mount telecentric lens with coaxial light
LS-TCL-1362
- Magnification 0.462x
- Mount M58
- Sensor Full frame
$3,019.00
Ships in 2-3 weeks

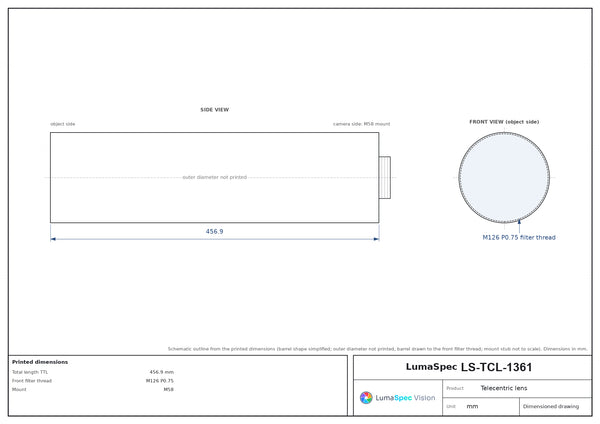

0.462x, WD 378 mm, M58-mount telecentric lens
LS-TCL-1361
- Magnification 0.462x
- Mount M58
- Sensor Full frame
$3,019.00
Ships in 2-3 weeks

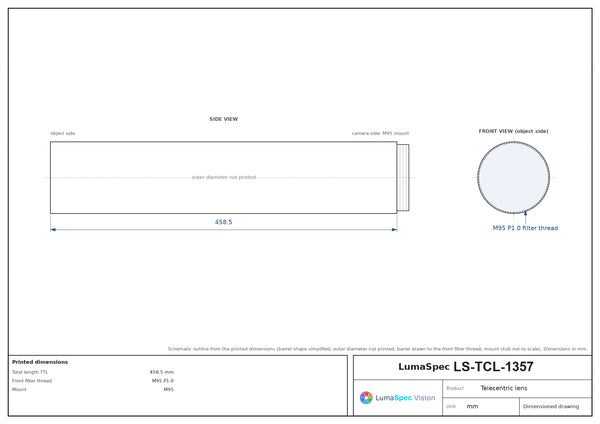

0.96x, WD 150 mm, M95-mount telecentric lens
LS-TCL-1357
- Magnification 0.96x
- Mount M95
- Sensor Large format
$3,019.00
Ships in 2-3 weeks
1x, WD 162 mm, M95-mount telecentric lens
LS-TCL-1356
- Magnification 1x
- Mount M95
- Sensor Large format
$2,939.00
Ships in 2-3 weeks
0.705x, WD 125 mm, M72-mount telecentric lens
LS-TCL-1347
- Magnification 0.705x
- Mount M72
- Sensor Large format
$2,919.00
Ships in 2-3 weeks

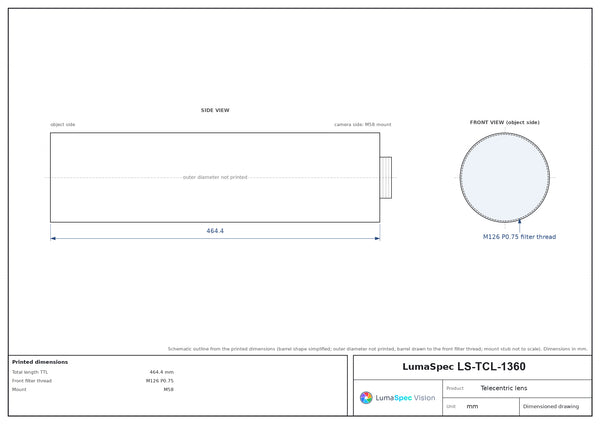

0.53x, WD 338 mm, M58-mount telecentric lens with coaxial light
LS-TCL-1360
- Magnification 0.53x
- Mount M58
- Sensor Full frame
$2,749.00
Ships in 2-3 weeks
0.53x, WD 338 mm, M58-mount telecentric lens
LS-TCL-1359
- Magnification 0.53x
- Mount M58
- Sensor Full frame
$2,749.00
Ships in 2-3 weeks
1.11x, WD 150 mm, M95-mount telecentric lens
LS-TCL-1355
- Magnification 1.11x
- Mount M95
- Sensor Large format
$2,729.00
Ships in 2-3 weeks
0.4x, WD 208 mm, 1.75", M42-mount telecentric lens
LS-TCL-1375
- Magnification 0.4x
- Mount M42
- Sensor 1.75"
$2,619.00
Ships in 2-3 weeks
| Compare | |||||||||
|---|---|---|---|---|---|---|---|---|---|
 LS-TCL-14711.108x, WD 24 mm, 1.1", C-mount telecentric lens
| 1.108x | C-mount | 1.1" | 24±1 mm | F7.2 | Ø 16.6 mm | $1,189.00 | Ships in 2-3 weeks | |
 LS-TCL-14002.8x, WD 90 mm, 2", M58-mount telecentric lens, length 300.9 mm
| 2.8x | M58 | 2" | 90 mm | F11 | Ø 11.8 mm | $1,239.00 | Ships in 2-3 weeks | |
 LS-TCL-13992.8x, WD 90 mm, 2", M42-mount telecentric lens, length 300.9 mm
| 2.8x | M42 | 2" | 90 mm | F11 | Ø 11.8 mm | $1,239.00 | Ships in 2-3 weeks | |
 LS-TCL-13982.8x, WD 90 mm, 2", M58-mount telecentric lens, length 300.8 mm
| 2.8x | M58 | 2" | 90 mm | F11 | Ø 11.8 mm | $1,239.00 | Ships in 2-3 weeks | |
 LS-TCL-13972.8x, WD 90 mm, 2", M42-mount telecentric lens, length 300.8 mm
| 2.8x | M42 | 2" | 90 mm | F11 | Ø 11.8 mm | $1,239.00 | Ships in 2-3 weeks | |
 LS-TCL-13630.2514x, WD 328 mm, M58-mount telecentric lens
| 0.2514x | M58 | Full frame | 328 mm | F6.5 | Ø 173.3 mm | $4,829.00 | Ships in 2-3 weeks | |
 LS-TCL-13220.095x, WD 318 mm, 1", C-mount telecentric lens
| 0.095x | C-mount | 1" | 318 mm | F6.5 | Ø 174.8 mm | $4,849.00 | Ships in 2-3 weeks | |
 LS-TCL-13250.1536x, WD 215 mm, 2", M42-mount telecentric lens
| 0.1536x | M42 | 2" | 215 mm | F8 | Ø 215 mm | $5,889.00Quote | Ships in 2-3 weeks | |
 LS-TCL-13230.075x, WD 220 mm, 1", C-mount telecentric lens, DOF ±30.9@F4.35
| 0.075x | C-mount | 1" | 220 mm | F4.35 | Ø 215 mm | $5,879.00Quote | Ships in 2-3 weeks | |
 LS-TCL-13330.115x, WD 336 mm, 1.1", C-mount telecentric lens
| 0.115x | C-mount | 1.1" | 336 mm | F5.1 | Ø 153 mm | $4,329.00 | Ships in 2-3 weeks | |
 LS-TCL-13320.135x, WD 288 mm, 1.1", C-mount telecentric lens, length 389.6 mm
| 0.135x | C-mount | 1.1" | 288 mm | F6.2 | Ø 136 mm | $3,939.00 | Ships in 2-3 weeks | |
|
LS-TCL-13310.135x, WD 288 mm, 1.1", C-mount telecentric lens, length 399.5 mm
| 0.135x | C-mount | 1.1" | 288 mm | F6.2 | Ø 136 mm | $3,939.00 | Ships in 2-3 weeks | |
|
LS-TCL-13200.1559x, WD 300 mm, 1", C-mount telecentric lens
| 0.1559x | C-mount | 1" | 300 mm | F6.5 | Ø 106.5 mm | $3,249.00 | Ships in 2-3 weeks | |
|
LS-TCL-13940.111x, WD 203 mm, 2/3", C-mount telecentric lens
| 0.111x | C-mount | 2/3" | 203 mm | F5 | Ø 102.8 mm | $3,169.00 | Ships in 2-3 weeks | |
|
LS-TCL-13520.86x, WD 198 mm, M95-mount telecentric lens
| 0.86x | M95 | Large format | 198 mm | F13 | Ø 95.07 mm | $2,999.00 | Ships in 2-3 weeks | |
 LS-TCL-13620.462x, WD 378 mm, M58-mount telecentric lens with coaxial light
| 0.462x | M58 | Full frame | 378 mm | F8 | Ø 94 mm | $3,019.00 | Ships in 2-3 weeks | |
 LS-TCL-13610.462x, WD 378 mm, M58-mount telecentric lens
| 0.462x | M58 | Full frame | 378 mm | F8 | Ø 94 mm | $3,019.00 | Ships in 2-3 weeks | |
 LS-TCL-13570.96x, WD 150 mm, M95-mount telecentric lens
| 0.96x | M95 | Large format | 150 mm | F8 | Ø 91.6 mm | $3,019.00 | Ships in 2-3 weeks | |
 LS-TCL-13561x, WD 162 mm, M95-mount telecentric lens
| 1x | M95 | Large format | 162 mm | F8 | Ø 88 mm | $2,939.00 | Ships in 2-3 weeks | |
 LS-TCL-13470.705x, WD 125 mm, M72-mount telecentric lens
| 0.705x | M72 | Large format | 125 mm | F7 | Ø 88 mm | $2,919.00 | Ships in 2-3 weeks | |
 LS-TCL-13600.53x, WD 338 mm, M58-mount telecentric lens with coaxial light
| 0.53x | M58 | Full frame | 338 mm | F10 | Ø 82 mm | $2,749.00 | Ships in 2-3 weeks | |
 LS-TCL-13590.53x, WD 338 mm, M58-mount telecentric lens
| 0.53x | M58 | Full frame | 338 mm | F10 | Ø 82 mm | $2,749.00 | Ships in 2-3 weeks | |
 LS-TCL-13551.11x, WD 150 mm, M95-mount telecentric lens
| 1.11x | M95 | Large format | 150 mm | F7 | Ø 79.2 mm | $2,729.00 | Ships in 2-3 weeks | |
 LS-TCL-13750.4x, WD 208 mm, 1.75", M42-mount telecentric lens
| 0.4x | M42 | 1.75" | 208 mm | F10.4 | Ø 79 mm | $2,619.00 | Ships in 2-3 weeks |
