Telecentric lenses

2.8x, WD 90 mm, 2", M42-mount Telecentric Lens, length 300.9 mm (LS-TCL-1399)

Model LS-TCL-1399

Magnification2.8x
MountM42
SensorAPS-H
Working distance90 mm
Aperture11
Field of view11.8

$1,239.00

In stock - ships the same business day (2 available, order by 2 PM ET)

0.6 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

2.8x, WD 90 mm, 2", M42-mount Telecentric Lens. no series title in the outline). At a glance: magnification 2.8x; working distance 90 mm; max sensor size 33 mm (2"); max object field of view 11.8 mm; image-side f/# 11.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-TCL-1399

Optics

Front filter thread	M48x0.5
Image-side F/#	11
Image-side MTF30 (lp/mm)	>90
Image-side distortion (% max)	<0.02
Magnification (x)	2.8
Max object field of view (dia. mm)	11.8
Max object-side depth of field (mm)	0.1@F11
Numerical aperture NA	0.1421921
Object-side telecentricity (deg max)	<0.05
Working distance (mm)	90

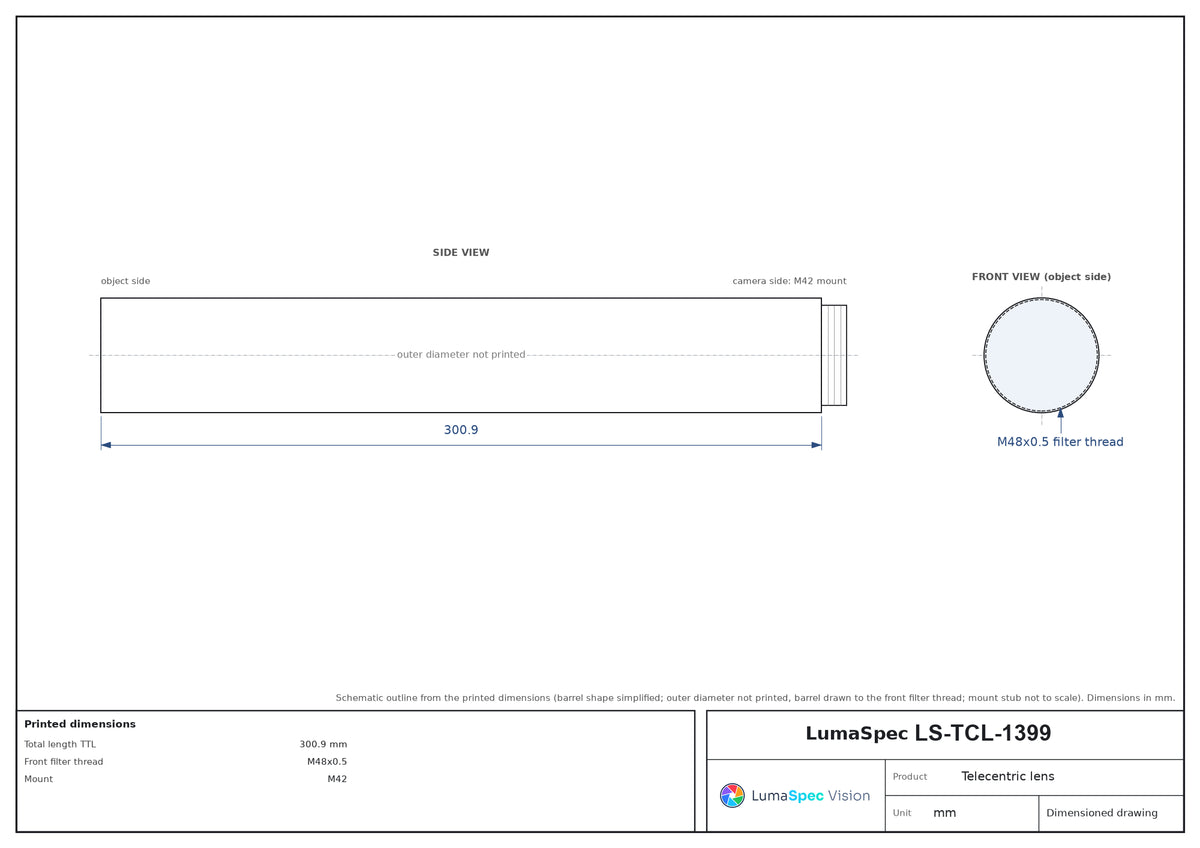

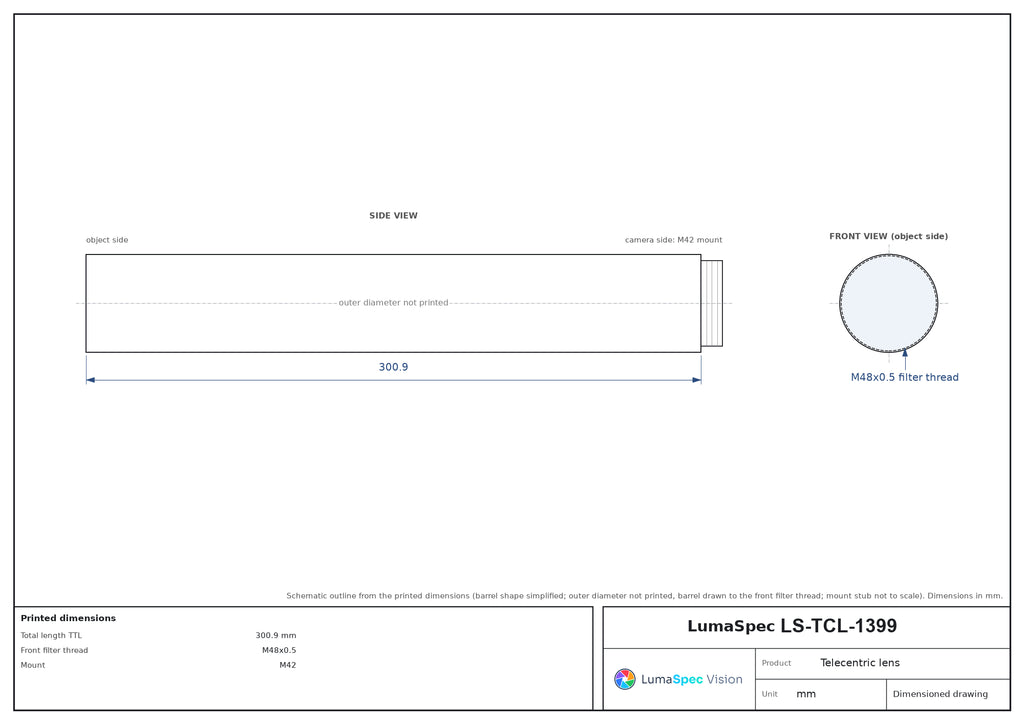

Total length TTL (mm)	300.9

Sensor and imaging

Max sensor size (dia. mm)	33(2")

Mechanical

Mount	M42
Shipping weight (estimated)	0.60 kg

Photo shows a representative model of this series; see the specifications for this model.
