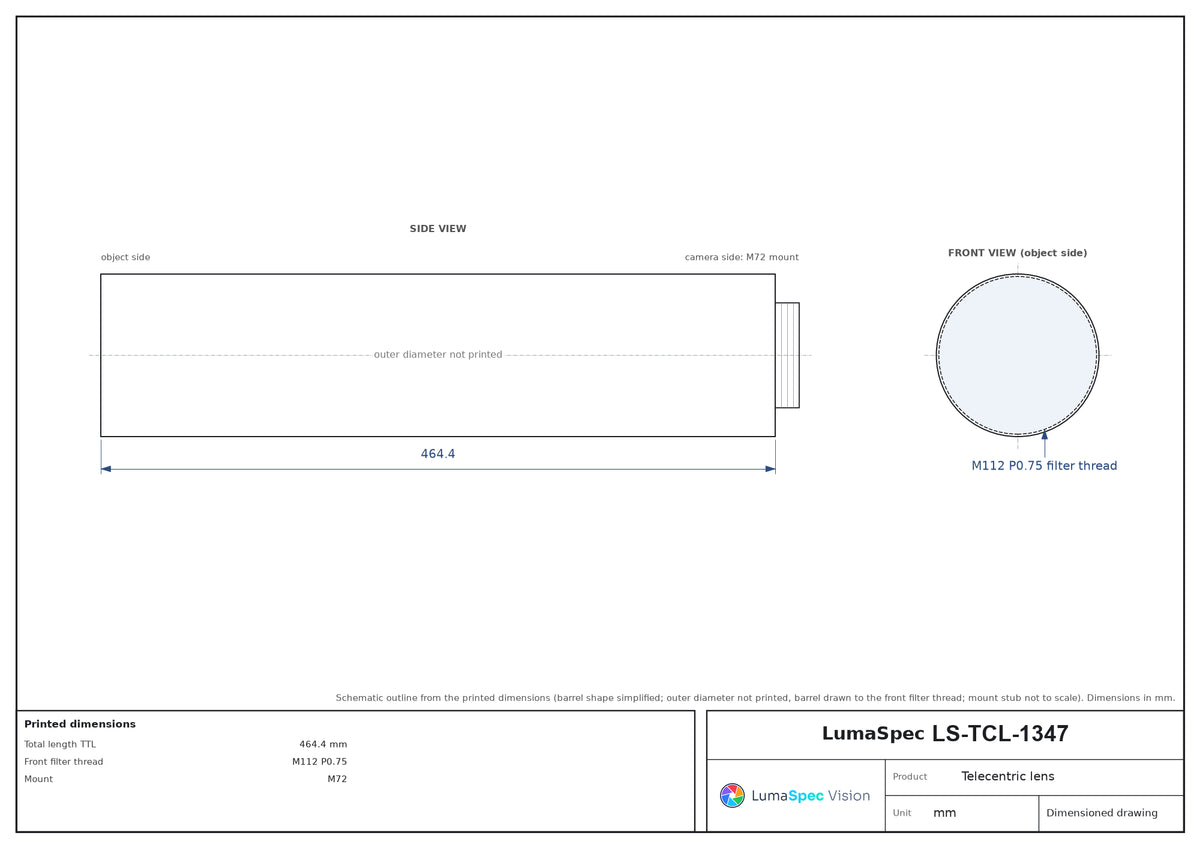

  • LS-TCL-1347 dimensions (mm)

Telecentric lenses

0.705x, WD 125 mm, M72-mount Telecentric Lens (LS-TCL-1347)

Model LS-TCL-1347

  • Magnification0.705x
  • MountM72
  • SensorLarge format
  • Working distance125 mm
  • Aperture7
  • Field of view88
$2,919.00

Ships in 2-3 weeks

7.38 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

0.705x, WD 125 mm, M72-mount Telecentric Lens (LS-TCL-1347)LS-TCL-1347

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

0.705x, WD 125 mm, M72-mount Telecentric Lens. At a glance: magnification 0.705x; working distance 125 mm; max sensor size 62 mm; object field of view 88 mm; object-side resolution 6.7 µm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-1347

Optics

Telecentric typeBi-telecentric
Object field of view (dia. mm)88
Magnification (x)0.705
Working distance (mm)125
Image-side F/#7
Image-side MTF30 (lp/mm)>165
Theoretical depth of field (mm)±0.6@F7.0
Image-side distortion (% max)<0.1
Telecentricity (deg max)<0.3
Object-to-image distance I/O (mm)601
Numerical aperture NA0.05028
Object-side resolution (um)6.7
Total length TTL (mm)464.4
Manual irisNo
Coaxial illuminationNo
Front filter threadM112 P0.75
Measured depth of field as shipped (mm)0.2

Sensor and imaging

Max sensor size (dia. mm)62

Mechanical

MountM72
Net weight (kg)5.2
Shipping weight (estimated)7.38 kg

Photo shows a representative model of this series; see the specifications for this model.
