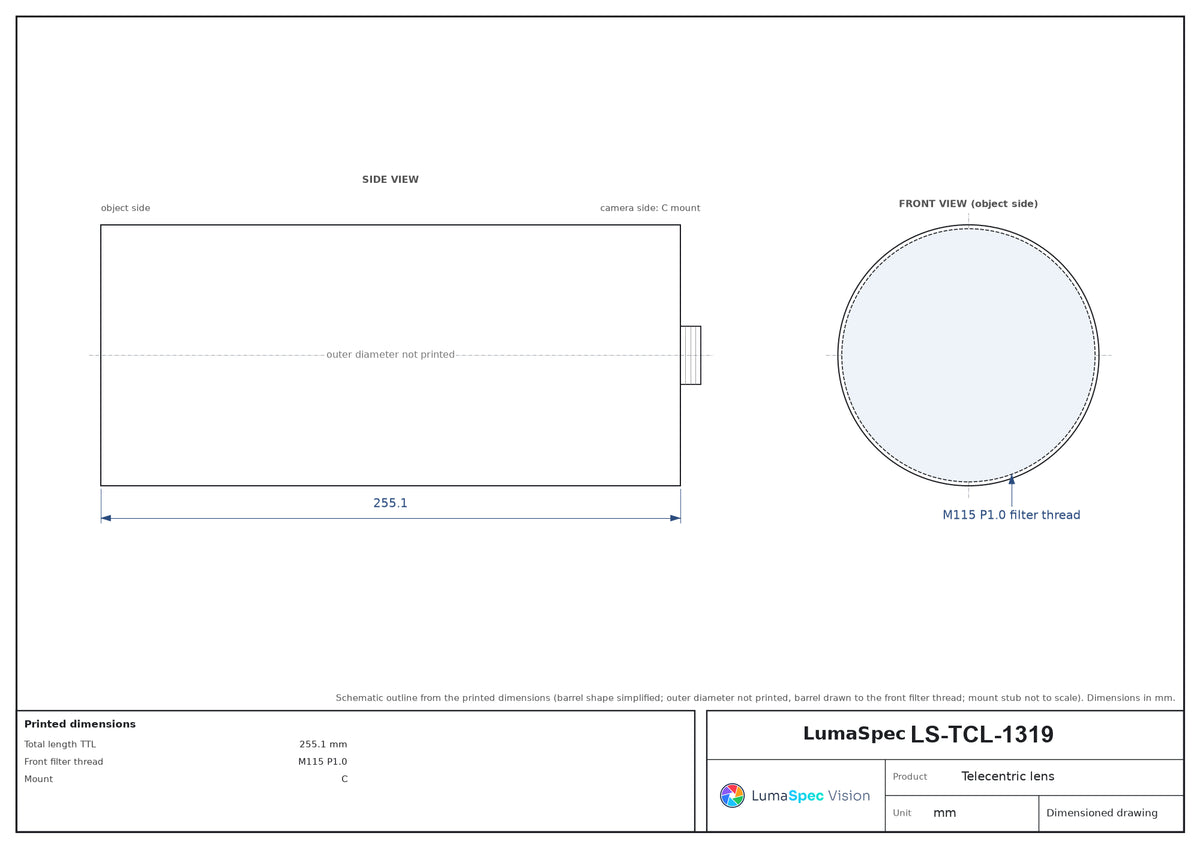

  • LS-TCL-1319 dimensions (mm)

Telecentric lenses

0.167x, WD 200 mm, 1", C-mount Telecentric Lens (LS-TCL-1319)

Model LS-TCL-1319

  • Magnification0.167x
  • MountC-mount
  • Sensor1"
  • Working distance200 mm
  • Aperture6.4
  • Field of view99.6
$3,089.00

Ships in 2-3 weeks

1.7 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

0.167x, WD 200 mm, 1", C-mount Telecentric Lens (LS-TCL-1319)LS-TCL-1319

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

0.167x, WD 200 mm, 1", C-mount Telecentric Lens. At a glance: magnification 0.167x; working distance 200 mm; max sensor size 16 mm (1"); object field of view 99.6 mm; object-side resolution 25.7 µm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-1319

Optics

Telecentric typeTelecentric
Object field of view (dia. mm)99.6
Magnification (x)0.167
Working distance (mm)200
Image-side F/#6.4
Image-side MTF30 (lp/mm)>122
Theoretical depth of field (mm)±9.2@F6.4
Image-side distortion (% max)<0.04
Telecentricity (deg max)0.2
Object-to-image distance I/O (mm)473
Numerical aperture NA0.01305
Object-side resolution (um)25.7
Total length TTL (mm)255.1
Manual irisNo
Coaxial illuminationNo
Front filter threadM115 P1.0

Sensor and imaging

Max sensor size (dia. mm)16(1")

Mechanical

MountC
Shipping weight (estimated)1.70 kg

Photo shows a representative model of this series; see the specifications for this model.
