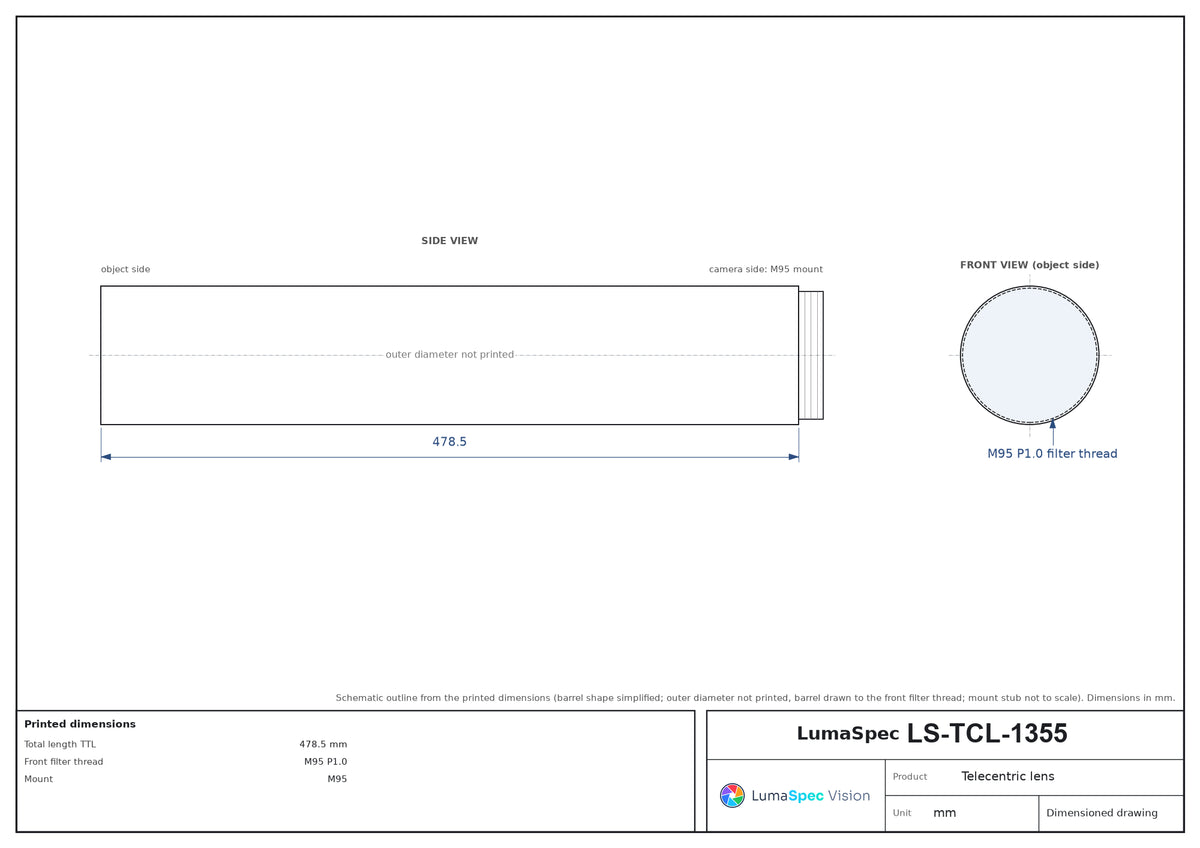

  • LS-TCL-1355 dimensions (mm)

Telecentric lenses

1.11x, WD 150 mm, M95-mount Telecentric Lens (LS-TCL-1355)

Model LS-TCL-1355

  • Magnification1.11x
  • MountM95
  • SensorLarge format
  • Working distance150 mm
  • Aperture7
  • Field of view79.2
$2,729.00

Ships in 2-3 weeks

7.94 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

1.11x, WD 150 mm, M95-mount Telecentric Lens (LS-TCL-1355)LS-TCL-1355

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

1.11x, WD 150 mm, M95-mount Telecentric Lens. At a glance: magnification 1.11x; working distance 150 mm; sensor class 24K; object field of view 79.2 mm; object-side resolution 4.2 µm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-1355

Optics

Telecentric typeBi-telecentric
Object field of view (dia. mm)79.2
Magnification (x)1.11
Working distance (mm)150
Image-side F/#7
Image-side MTF30 (lp/mm)>100
Theoretical depth of field (mm)±0.2@F7.0
Image-side distortion (% max)<0.01
Telecentricity (deg max)<0.2
Object-to-image distance I/O (mm)641
Numerical aperture NA0.07904
Object-side resolution (um)4.2
Total length TTL (mm)478.5
Manual irisNo
Coaxial illuminationNo
Front filter threadM95 P1.0

Sensor and imaging

Sensor class24K
Max sensor size (dia. mm)88

Mechanical

MountM95
Net weight (kg)5.6
Shipping weight (estimated)7.94 kg

Photo shows a representative model of this series; see the specifications for this model.
