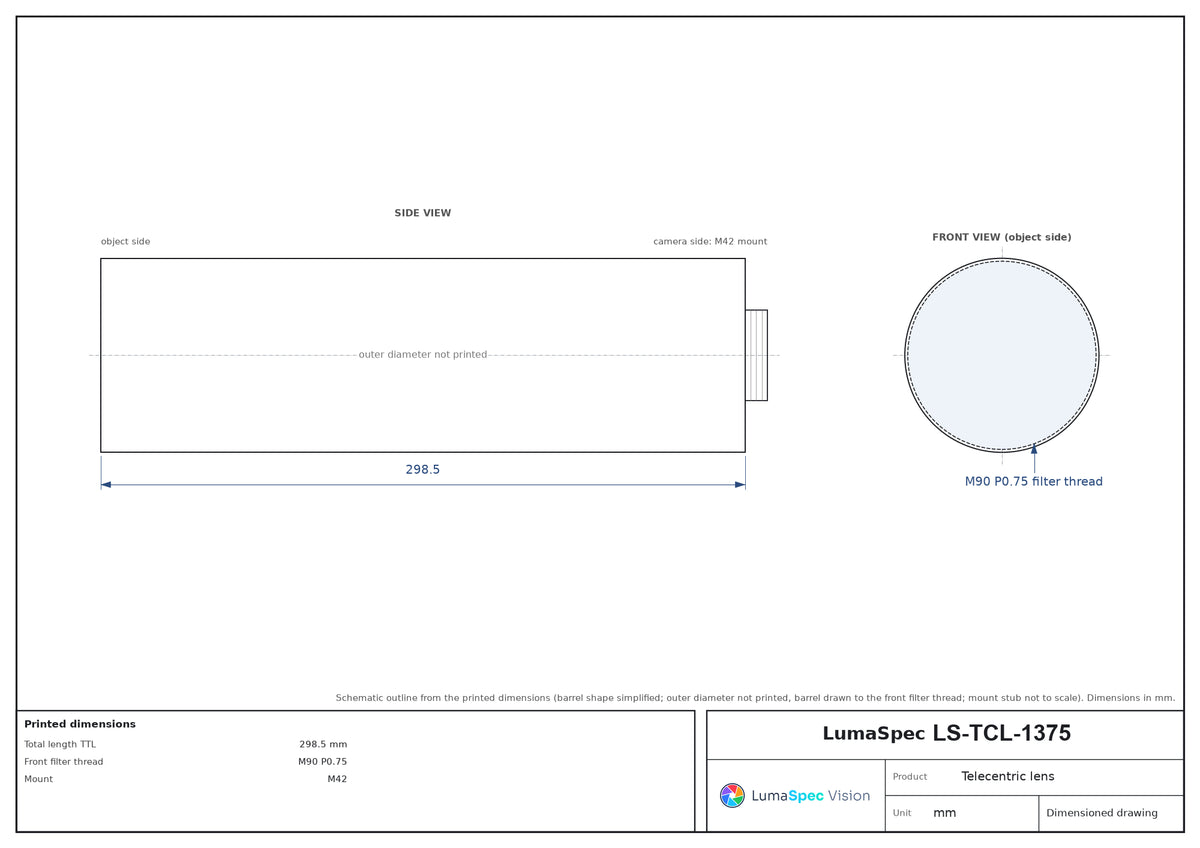

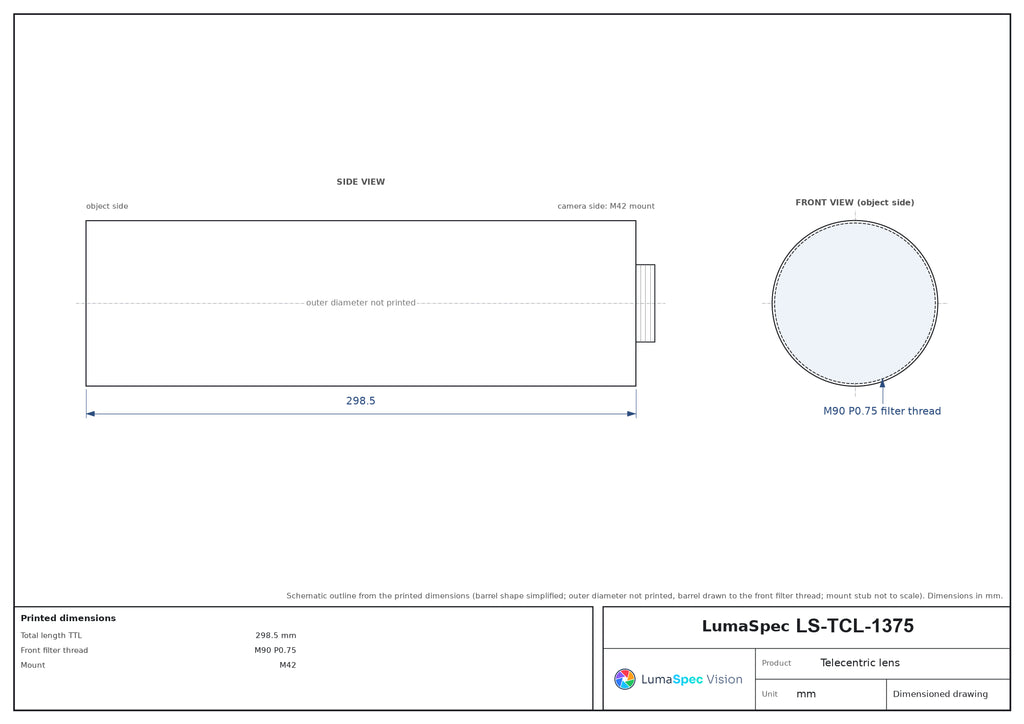

  • LS-TCL-1375 dimensions (mm)

Telecentric lenses

0.4x, WD 208 mm, 1.75", M42-mount Telecentric Lens (LS-TCL-1375)

Model LS-TCL-1375

  • Magnification0.4x
  • MountM42
  • Sensor1.75"
  • Working distance208 mm
  • Aperture10.4
  • Field of view79
$2,619.00

Ships in 2-3 weeks

1.45 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

0.4x, WD 208 mm, 1.75", M42-mount Telecentric Lens (LS-TCL-1375)LS-TCL-1375

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

0.4x, WD 208 mm, 1.75", M42-mount Telecentric Lens. At a glance: magnification 0.4x; working distance 208 mm; sensor class 1.75"; object field of view 79 mm; image-side f/# 10.4.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-1375

Optics

Telecentric typeBi-telecentric
Object field of view (dia. mm)79
Magnification (x)0.4
Working distance (mm)208
Image-side F/#10.4
Image-side MTF30 (lp/mm)>98
Theoretical depth of field (mm)5.2
Image-side distortion (% max)<0.08
Telecentricity (deg max)<0.1
Object-to-image distance I/O (mm)524
Total length TTL (mm)298.5
Manual irisNo
Coaxial illuminationNo
Front filter threadM90 P0.75

Sensor and imaging

Sensor class1.75"
Max sensor size (dia. mm)29(1.75")

Mechanical

MountM42
Shipping weight (estimated)1.45 kg

Photo shows a representative model of this series; see the specifications for this model.
