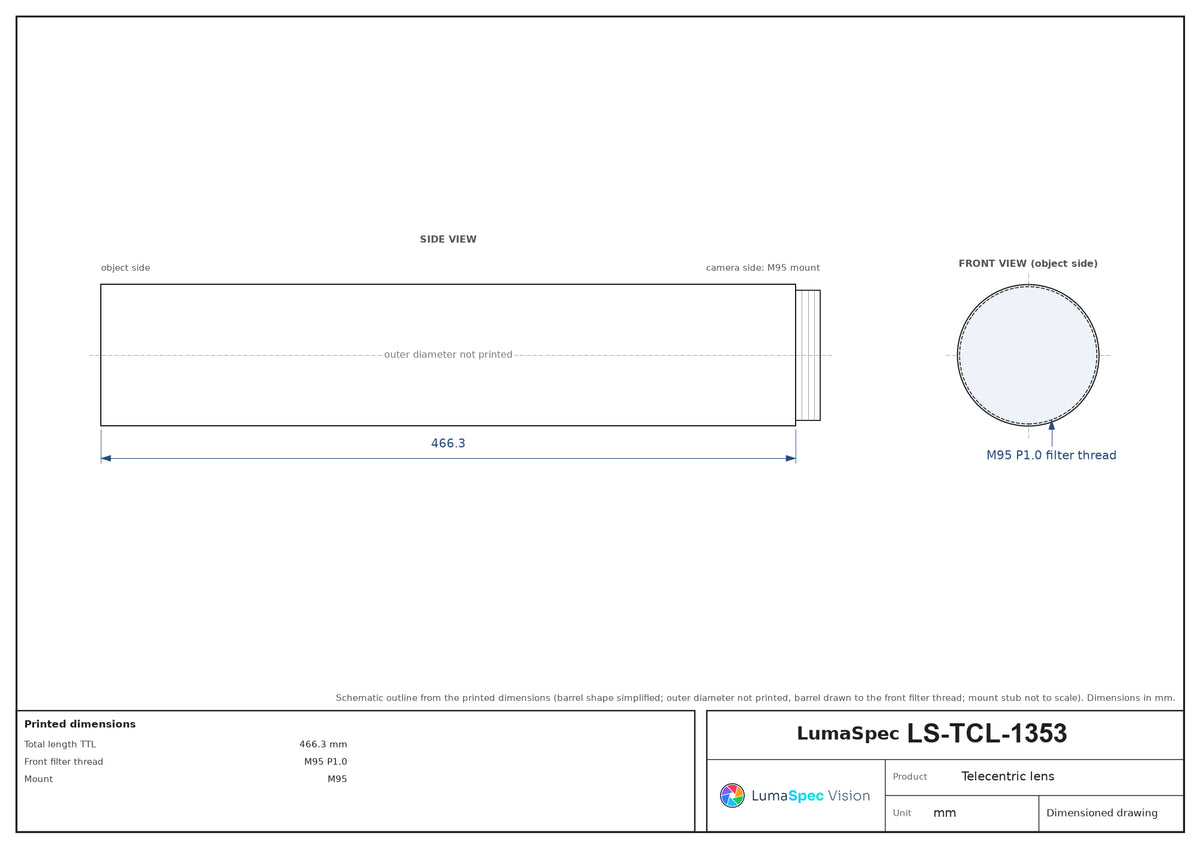

  • LS-TCL-1353 dimensions (mm)

Telecentric lenses

1.419x, WD 123 mm, M95-mount Telecentric Lens (LS-TCL-1353)

Model LS-TCL-1353

  • Magnification1.419x
  • MountM95
  • SensorLarge format
  • Working distance123 mm
  • Aperture7
  • Field of view62
$2,339.00

Ships in 2-3 weeks

7.8 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

1.419x, WD 123 mm, M95-mount Telecentric Lens (LS-TCL-1353)LS-TCL-1353

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

1.419x, WD 123 mm, M95-mount Telecentric Lens. At a glance: magnification 1.419x; working distance 123 mm; max sensor size 88 mm; object field of view 62 mm; object-side resolution 3.3 µm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-1353

Optics

Telecentric typeBi-telecentric
Object field of view (dia. mm)62
Magnification (x)1.419
Working distance (mm)123
Image-side F/#7
Image-side MTF30 (lp/mm)>115
Theoretical depth of field (mm)±0.1@F7.0
Image-side distortion (% max)<0.1
Telecentricity (deg max)<0.1
Object-to-image distance I/O (mm)601
Numerical aperture NA0.10066
Object-side resolution (um)3.3
Total length TTL (mm)466.3
Manual irisNo
Coaxial illuminationNo
Front filter threadM95 P1.0

Sensor and imaging

Max sensor size (dia. mm)88

Mechanical

MountM95
Net weight (kg)5.5
Shipping weight (estimated)7.80 kg

Photo shows a representative model of this series; see the specifications for this model.
