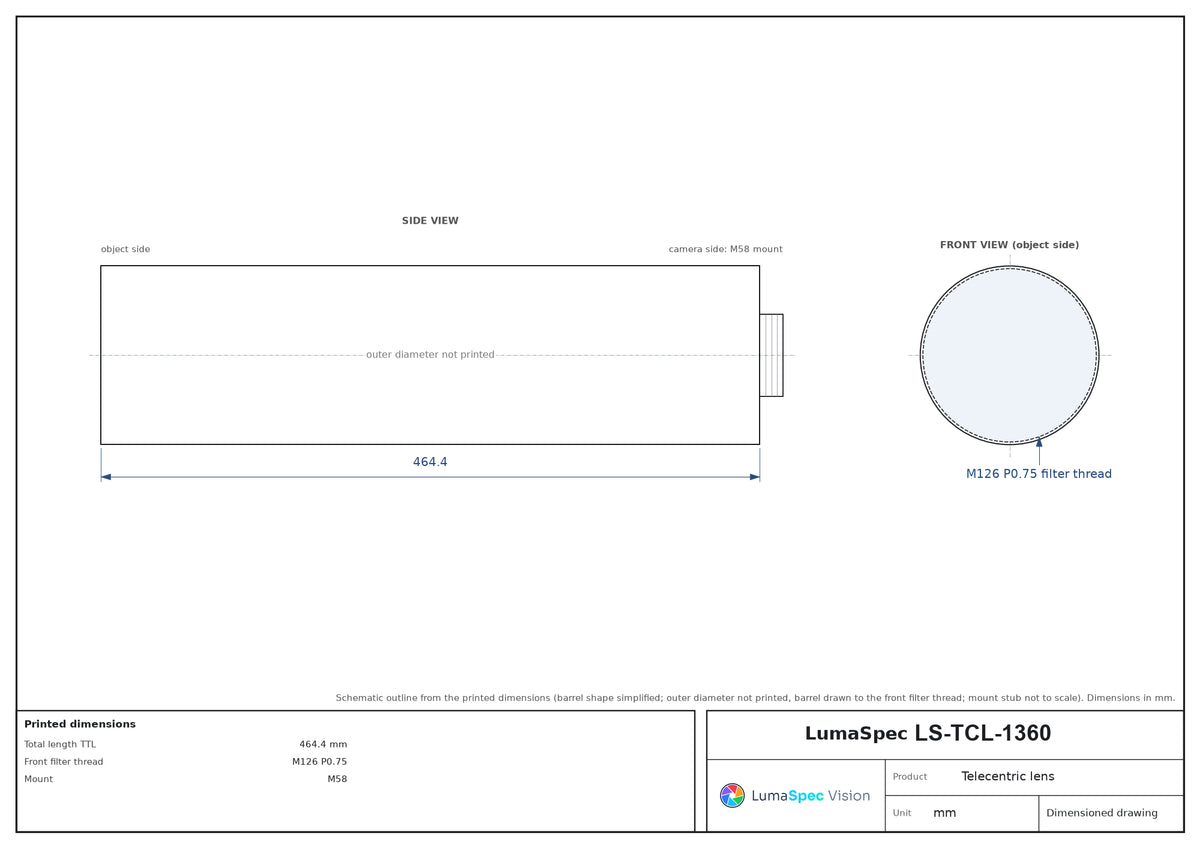

  • LS-TCL-1360 dimensions (mm)

Telecentric lenses

0.53x, WD 338 mm, M58-mount Telecentric Lens (LS-TCL-1360)

Model LS-TCL-1360

  • Magnification0.53x
  • MountM58
  • SensorFull frame
  • Working distance338 mm
  • Aperture10
  • Field of view82
$2,749.00

Ships in 2-3 weeks

5.42 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

0.53x, WD 338 mm, M58-mount Telecentric Lens (LS-TCL-1360)LS-TCL-1360

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

0.53x, WD 338 mm, M58-mount Telecentric Lens. At a glance: magnification 0.53x; working distance 338 mm; max sensor size 43.4 mm; object field of view 82 mm; object-side resolution 12.7 µm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-1360

Optics

Telecentric typeBi-telecentric
Object field of view (dia. mm)82
Magnification (x)0.53
Working distance (mm)338
Image-side F/#10
Image-side MTF30 (lp/mm)>92
Theoretical depth of field (mm)±1.4@F10
Image-side distortion (% max)<0.1
Telecentricity (deg max)<0.1
Object-to-image distance I/O (mm)814
Numerical aperture NA0.02649
Object-side resolution (um)12.7
Total length TTL (mm)464.4
Manual irisNo
Coaxial illuminationYes
Front filter threadM126 P0.75

Sensor and imaging

Max sensor size (dia. mm)43.4

Mechanical

MountM58
Net weight (kg)3.8
Shipping weight (estimated)5.42 kg

Photo shows a representative model of this series; see the specifications for this model.
