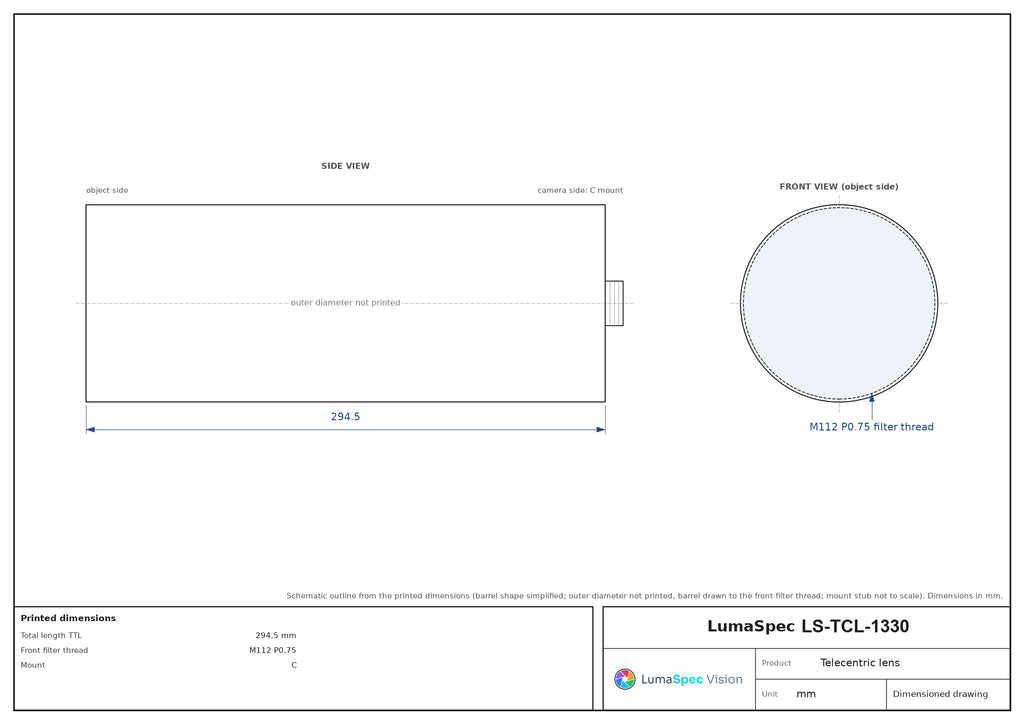

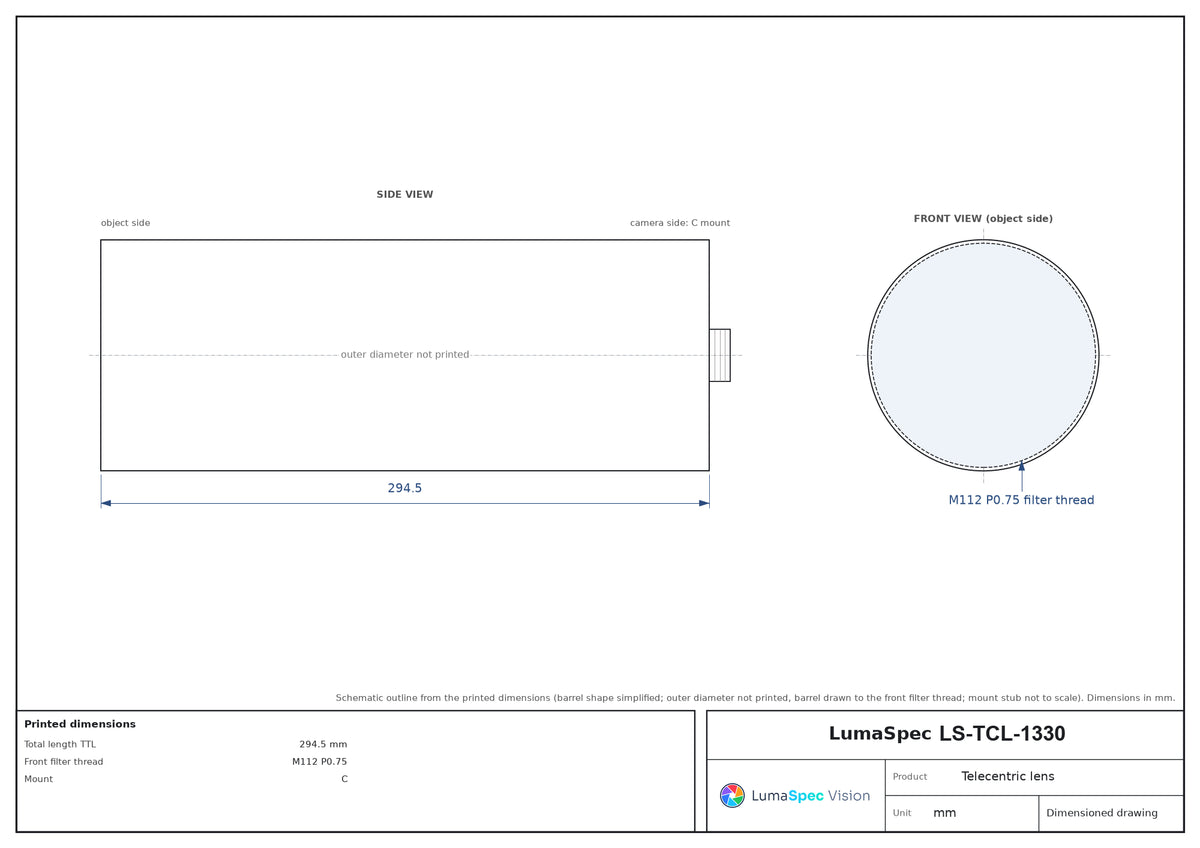

  • LS-TCL-1330 dimensions (mm)

Telecentric lenses

0.2x, WD 350 mm, 1.1", C-mount Telecentric Lens (LS-TCL-1330)

Model LS-TCL-1330

  • Magnification0.2x
  • MountC-mount
  • Sensor1.1"
  • Working distance350 mm
  • Aperture7
  • Field of view91
$2,899.00

Ships in 2-3 weeks

1.6 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

0.2x, WD 350 mm, 1.1", C-mount Telecentric Lens (LS-TCL-1330)LS-TCL-1330

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

0.2x, WD 350 mm, 1.1", C-mount Telecentric Lens. At a glance: magnification 0.2x; working distance 350 mm; sensor class 1.1"; object field of view 91 mm; object-side resolution 23.5 µm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-1330

Optics

Telecentric typeTelecentric
Object field of view (dia. mm)91
Magnification (x)0.2
Working distance (mm)350
Image-side F/#7
Image-side MTF30 (lp/mm)>145
Theoretical depth of field (mm)±7@F7
Image-side distortion (% max)<0.02
Telecentricity (deg max)<0.05
Object-to-image distance I/O (mm)662
Numerical aperture NA0.01428
Object-side resolution (um)23.5
Total length TTL (mm)294.5
Manual irisNo
Coaxial illuminationNo
Front filter threadM112 P0.75

Sensor and imaging

Sensor class1.1"
Max sensor size (dia. mm)18.2(1.1")

Mechanical

MountC
Shipping weight (estimated)1.60 kg

Photo shows a representative model of this series; see the specifications for this model.
