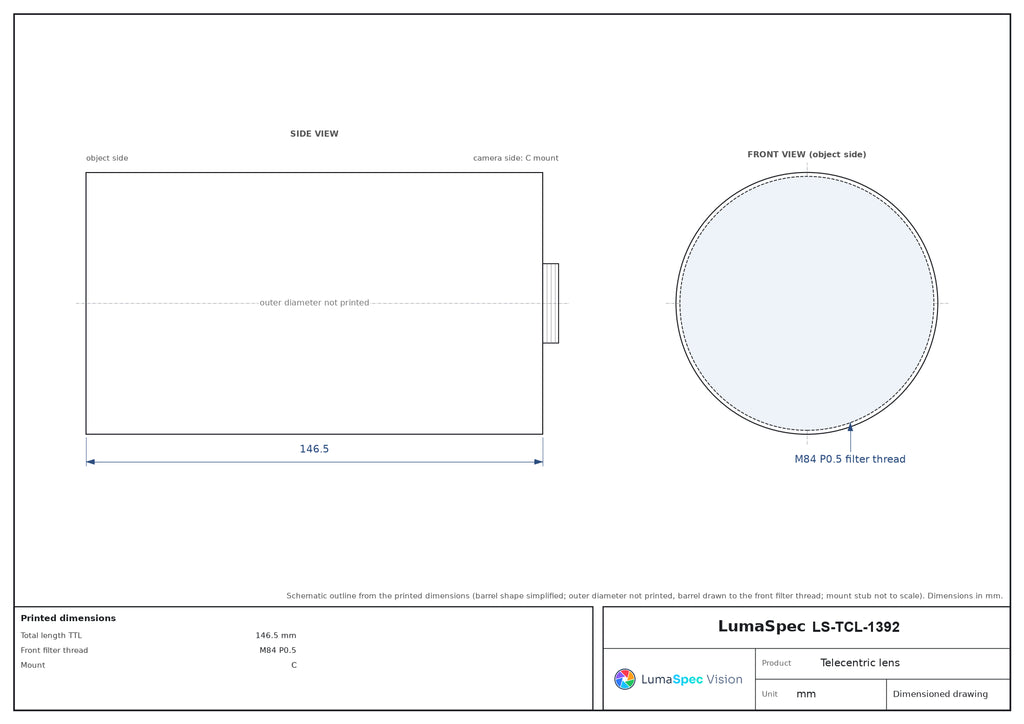

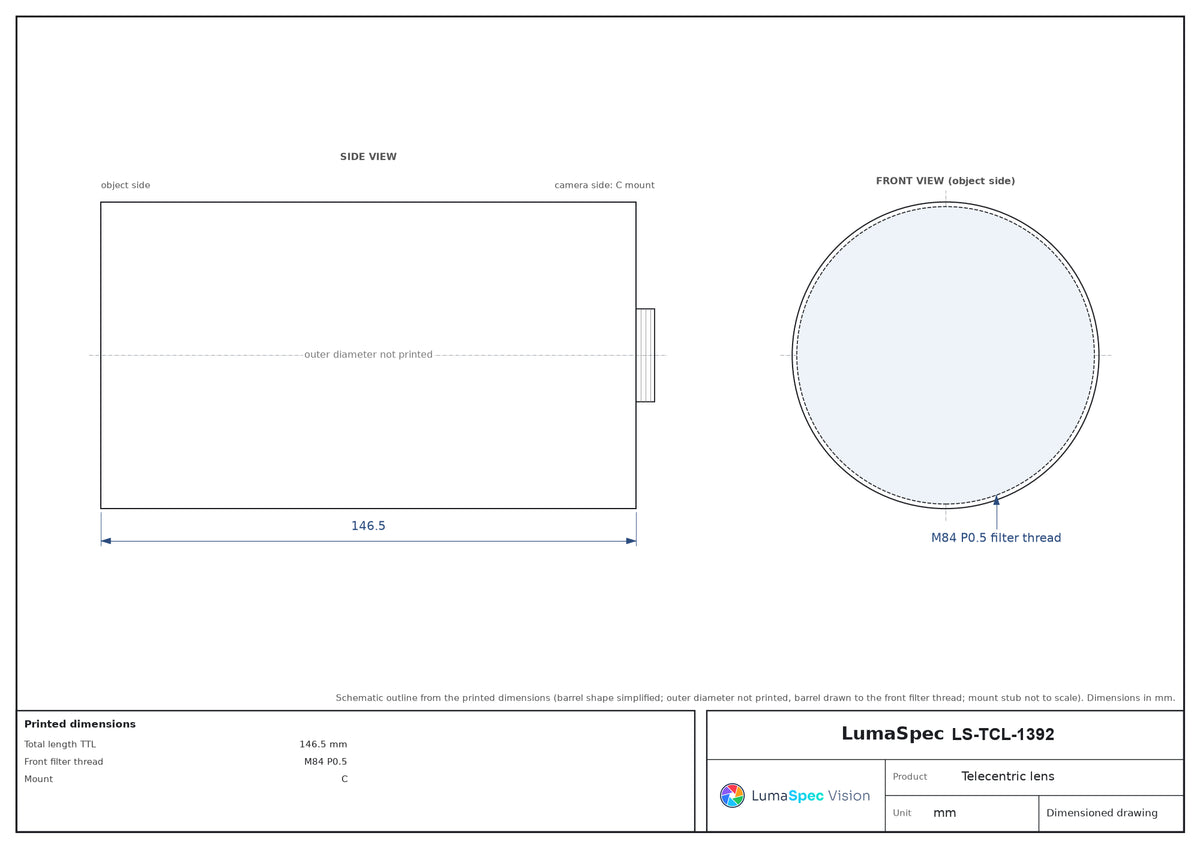

  • LS-TCL-1392 dimensions (mm)

Telecentric lenses

0.166x, WD 173 mm, 2/3", C-mount Telecentric Lens (LS-TCL-1392)

Model LS-TCL-1392

  • Magnification0.166x
  • MountC-mount
  • Sensor2/3"
  • Working distance173 mm
  • Aperture3.3-Close
  • Field of view66
$2,319.00

In stock - ships the same business day (2 available, order by 2 PM ET)

0.94 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

0.166x, WD 173 mm, 2/3", C-mount Telecentric Lens (LS-TCL-1392)LS-TCL-1392

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

0.166x, WD 173 mm, 2/3", C-mount Telecentric Lens. At a glance: magnification 0.166x; working distance 173 mm; max sensor size 11 mm (2/3"); object field of view 66 mm; object-side resolution 13.42 µm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-1392

Optics

Telecentric typeBi-telecentric
Object field of view (dia. mm)66
Magnification (x)0.166
Working distance (mm)173
Image-side F/#3.3-Close
Image-side MTF30 (lp/mm)>260
Theoretical depth of field (mm)±4.8@F3.3
Image-side distortion (% max)<0.1
Telecentricity (deg max)<0.1
Object-to-image distance I/O (mm)329
Numerical aperture NA0.025
Object-side resolution (um)13.42
Total length TTL (mm)146.5
Manual irisYes
Coaxial illuminationNo
Front filter threadM84 P0.5
Measured depth of field as shipped (mm)2

Sensor and imaging

Max sensor size (dia. mm)11(2/3")

Mechanical

MountC
Net weight (kg)0.6
Shipping weight (estimated)0.94 kg

Photo shows a representative model of this series; see the specifications for this model.
