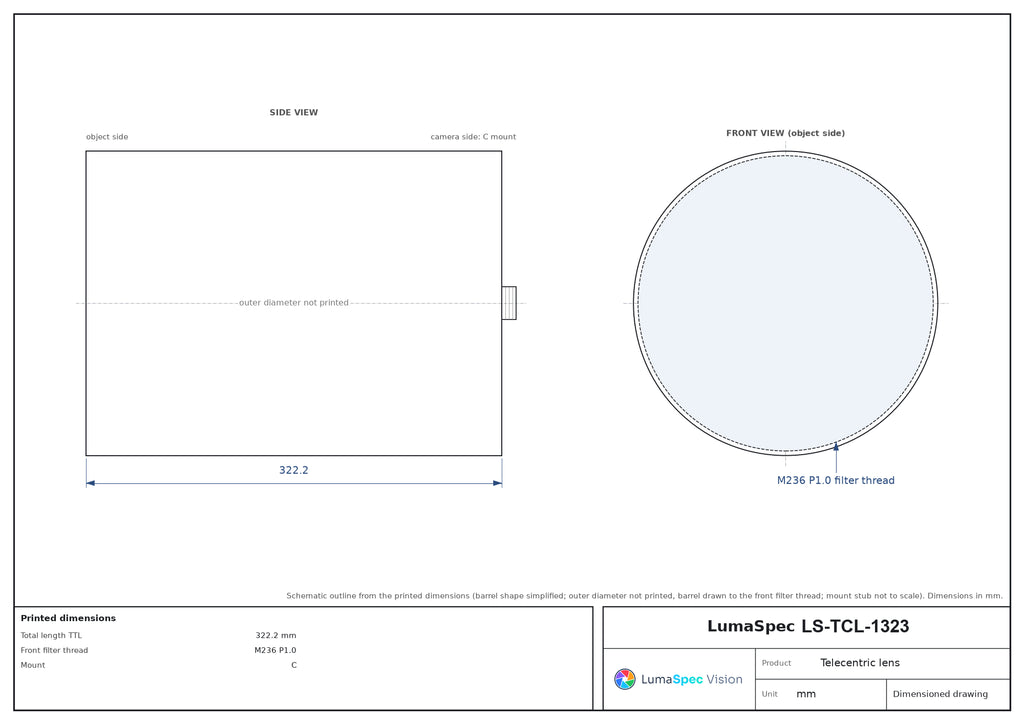

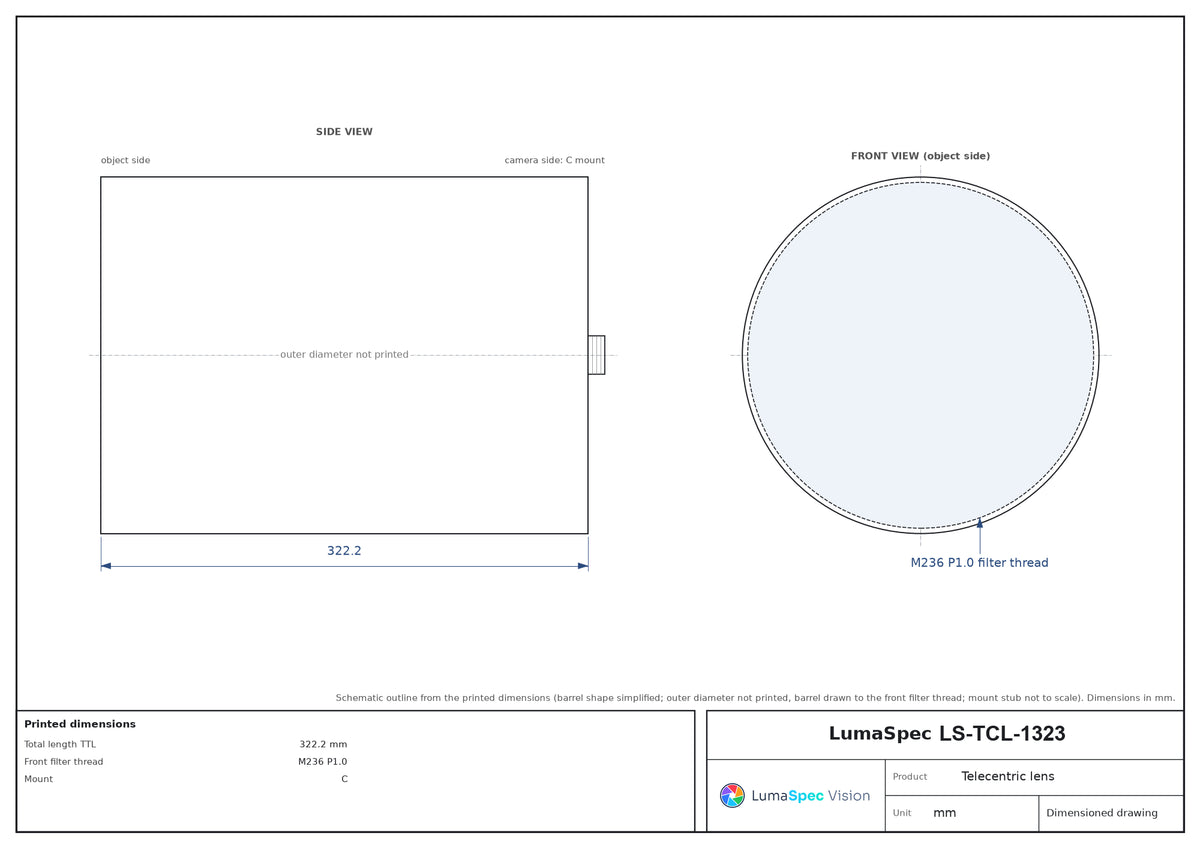

  • LS-TCL-1323 dimensions (mm)

Telecentric lenses

0.075x, WD 220 mm, 1", C-mount Telecentric Lens (LS-TCL-1323)

Model LS-TCL-1323

  • Magnification0.075x
  • MountC-mount
  • Sensor1"
  • Working distance220 mm
  • Aperture4.35
  • Field of view215
$5,879.00

Ships in 2-3 weeks

11.93 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

0.075x, WD 220 mm, 1", C-mount Telecentric Lens (LS-TCL-1323)LS-TCL-1323

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

0.075x, WD 220 mm, 1", C-mount Telecentric Lens. At a glance: magnification 0.075x; working distance 220 mm; sensor class 1"; object field of view 215 mm; object-side resolution 39.1 µm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-1323

Optics

Telecentric typeTelecentric
Object field of view (dia. mm)215
Magnification (x)0.075
Working distance (mm)220
Image-side F/#4.35
Image-side MTF30 (lp/mm)>195
Theoretical depth of field (mm)±30.9@F4.35
Image-side distortion (% max)<0.05
Telecentricity (deg max)<0.1
Object-to-image distance I/O (mm)560
Numerical aperture NA0.00857
Object-side resolution (um)39.1
Total length TTL (mm)322.2
Manual irisNo
Coaxial illuminationNo
Front filter threadM236 P1.0

Sensor and imaging

Sensor class1"
Max sensor size (dia. mm)16(1")

Mechanical

MountC
Net weight (kg)8.45
Shipping weight (estimated)11.93 kg

Photo shows a representative model of this series; see the specifications for this model.
