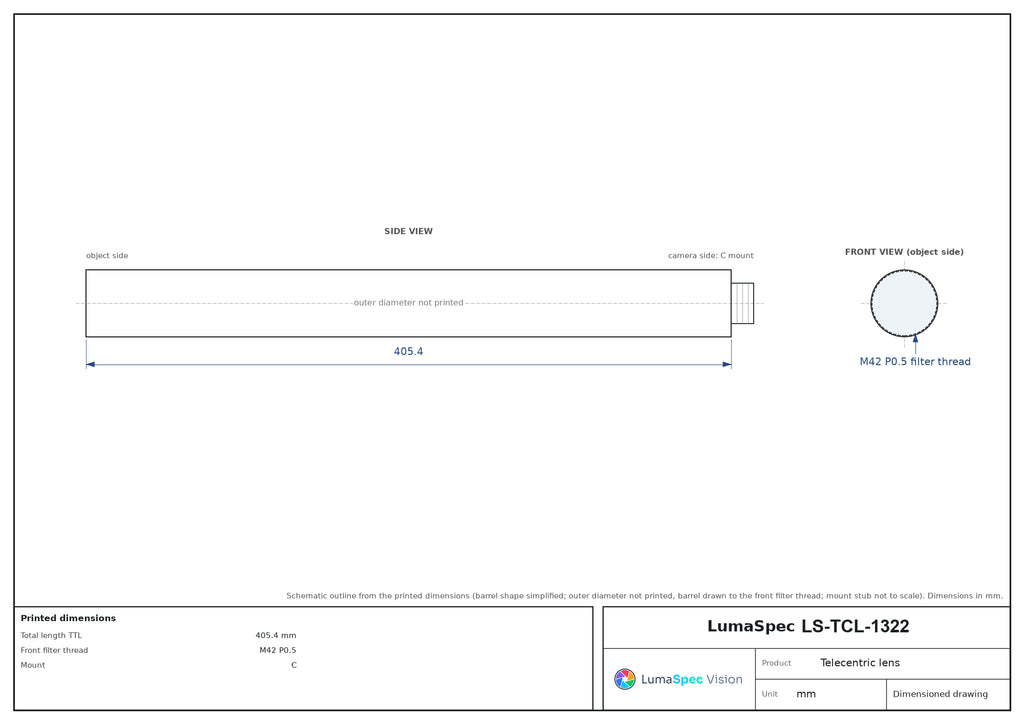

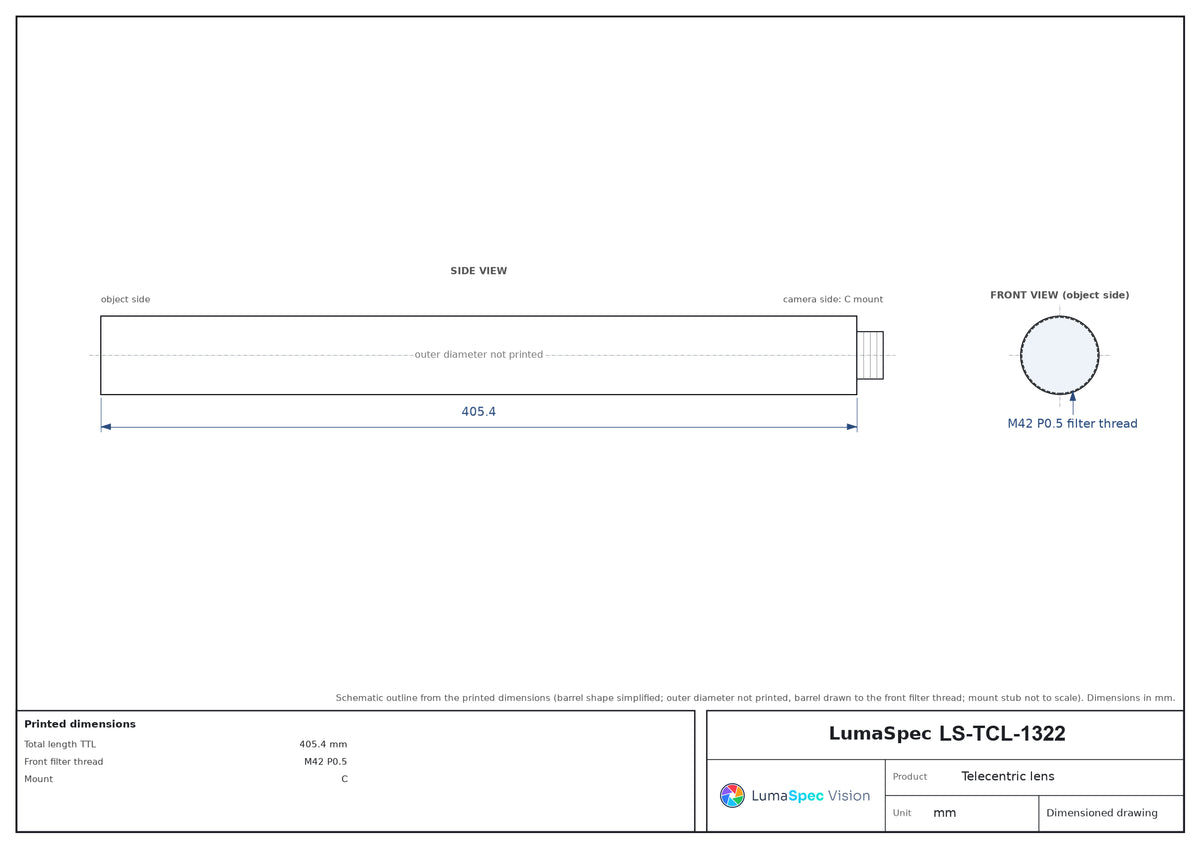

  • LS-TCL-1322 dimensions (mm)

Telecentric lenses

0.095x, WD 318 mm, 1", C-mount Telecentric Lens (LS-TCL-1322)

Model LS-TCL-1322

  • Magnification0.095x
  • MountC-mount
  • Sensor1"
  • Working distance318 mm
  • Aperture6.5
  • Field of view174.8
$4,849.00

Ships in 2-3 weeks

2.65 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

0.095x, WD 318 mm, 1", C-mount Telecentric Lens (LS-TCL-1322)LS-TCL-1322

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

0.095x, WD 318 mm, 1", C-mount Telecentric Lens. At a glance: magnification 0.095x; working distance 318 mm; max sensor size 16.6 mm (1"); object field of view 174.8 mm; object-side resolution 45.6 µm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-1322

Optics

Telecentric typeBi-telecentric
Object field of view (dia. mm)174.8
Magnification (x)0.095
Working distance (mm)318
Image-side F/#6.5
Image-side MTF30 (lp/mm)>144
Theoretical depth of field (mm)57.6
Image-side distortion (% max)<0.04
Telecentricity (deg max)<0.1
Object-to-image distance I/O (mm)741
Numerical aperture NA0.00736
Object-side resolution (um)45.6
Total length TTL (mm)405.4
Manual irisNo
Coaxial illuminationNo
Front filter threadM42 P0.5

Sensor and imaging

Max sensor size (dia. mm)16.6(1")

Mechanical

MountC
Shipping weight (estimated)2.65 kg

Photo shows a representative model of this series; see the specifications for this model.
