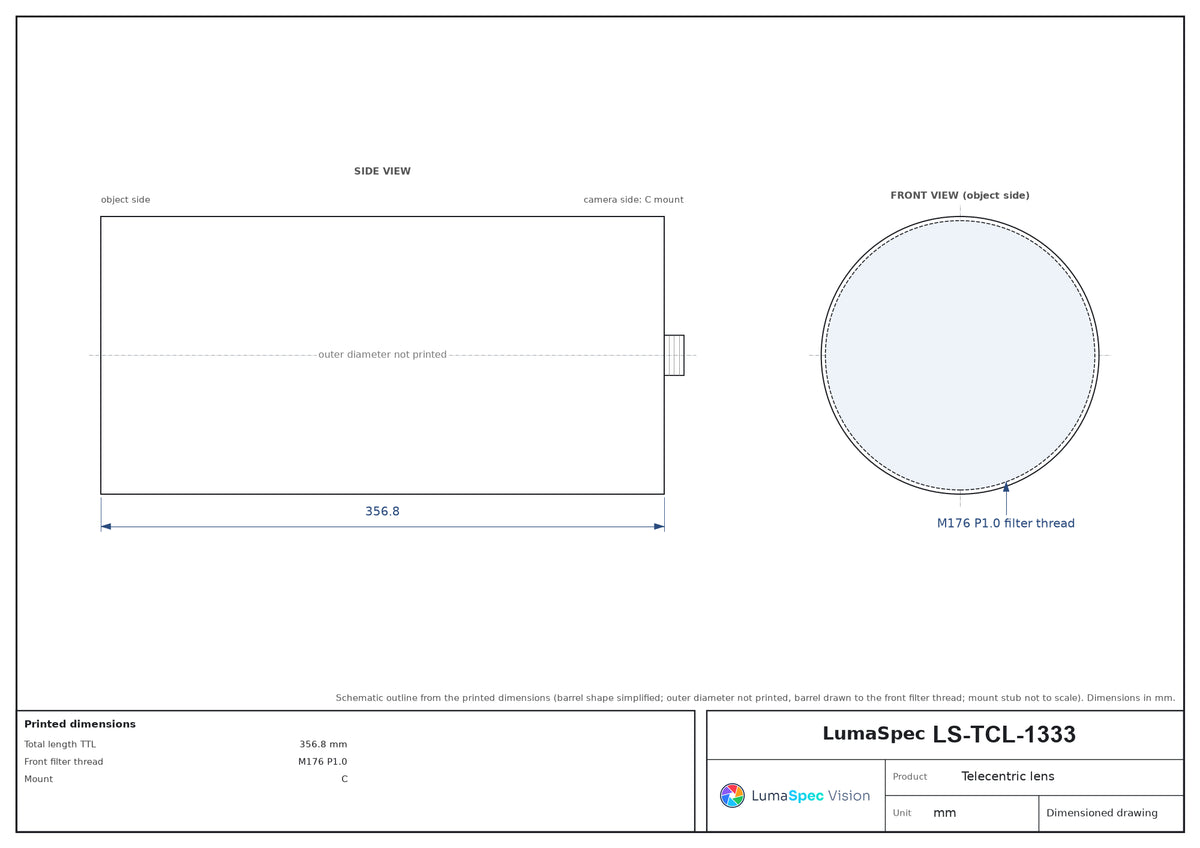

  • LS-TCL-1333 dimensions (mm)

Telecentric lenses

0.115x, WD 336 mm, 1.1", C-mount Telecentric Lens (LS-TCL-1333)

Model LS-TCL-1333

  • Magnification0.115x
  • MountC-mount
  • Sensor1.1"
  • Working distance336 mm
  • Aperture5.1
  • Field of view153
$4,329.00

Ships in 2-3 weeks

2.38 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

0.115x, WD 336 mm, 1.1", C-mount Telecentric Lens (LS-TCL-1333)LS-TCL-1333

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

0.115x, WD 336 mm, 1.1", C-mount Telecentric Lens. At a glance: magnification 0.115x; working distance 336 mm; sensor class 1.1"; object field of view 153 mm; object-side resolution 30 µm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-1333

Optics

Telecentric typeBi-telecentric
Object field of view (dia. mm)153
Magnification (x)0.115
Working distance (mm)336
Image-side F/#5.1
Image-side MTF30 (lp/mm)164
Theoretical depth of field (mm)30.9
Image-side distortion (% max)0.02
Telecentricity (deg max)0.1
Object-to-image distance I/O (mm)710
Numerical aperture NA0.01118
Object-side resolution (um)30
Total length TTL (mm)356.8
Manual irisNo
Coaxial illuminationNo
Front filter threadM176 P1.0

Sensor and imaging

Sensor class1.1"
Max sensor size (dia. mm)17.6(1.1")

Mechanical

MountC
Shipping weight (estimated)2.38 kg

Photo shows a representative model of this series; see the specifications for this model.
