Telecentric lenses
1.108x, WD 24 mm, 1.1", C-mount Telecentric Lens (LS-TCL-1471)
Model LS-TCL-1471
- Magnification1.108x
- MountC-mount
- Sensor1.1"
- Working distance24±1
- Aperture7.2
- Field of view16.6
$1,189.00
Ships in 2-3 weeks
0.52 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
1.108x, WD 24 mm, 1.1", C-mount Telecentric Lens. At a glance: magnification 1.108x; working distance 24±1 mm; max sensor size 18.4 mm (1.1"); object field of view 16.6 mm; image-side f/# 7.2.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-1471 |
|---|
Optics
| Object field of view (dia. mm) | 16.6 |
|---|---|
| Magnification (x) | 1.108 |
| Working distance (mm) | 24±1 |
| Image-side F/# | 7.2 |
| Image-side MTF30 (lp/mm) | >120 |
| Theoretical depth of field (mm) | ±0.5@F16 |
| Image-side distortion (% max) | <0.1 |
| Object-side telecentricity (deg max) | <0.25 |
| Object-to-image distance I/O (mm) | 144±1 |

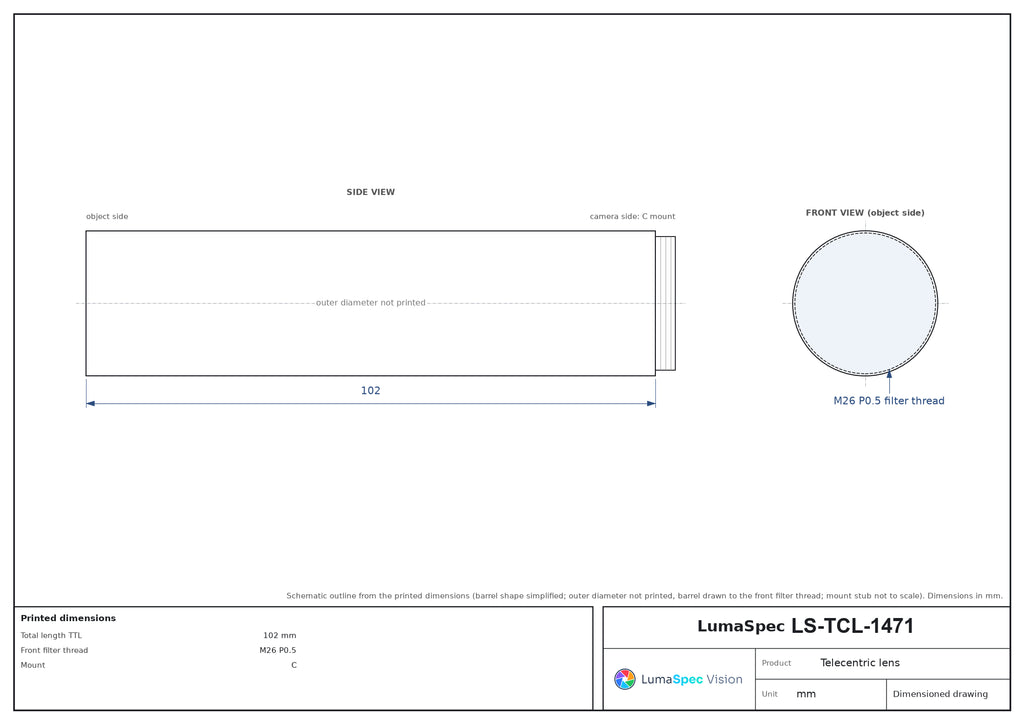

| Total length TTL (mm) | 102 |
| Front filter thread | M26 P0.5 |
Sensor and imaging
| Max sensor size (dia. mm) | 18.4(1.1") |
|---|
Mechanical
| Mount | C |
|---|---|
| Net weight (kg) | 0.3 |
| Shipping weight (estimated) | 0.52 kg |
Photo shows a representative model of this series; see the specifications for this model.
