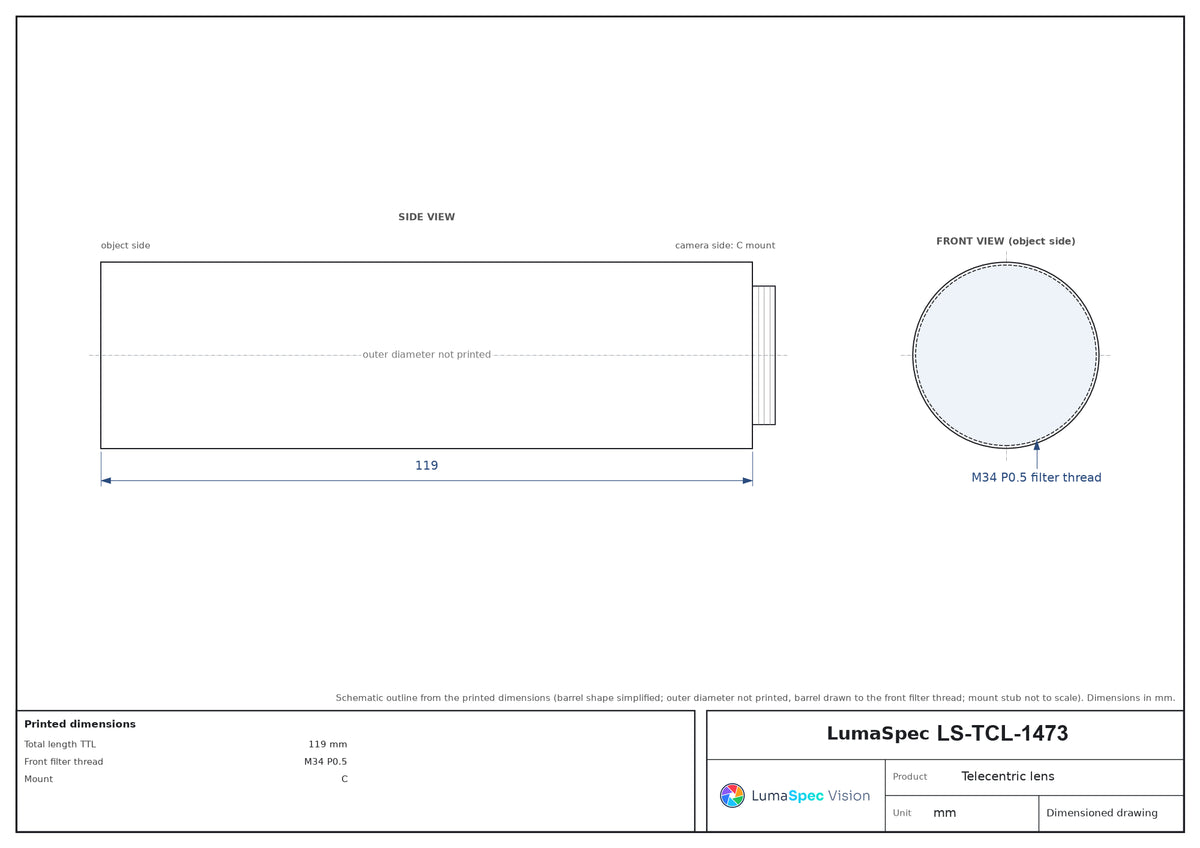

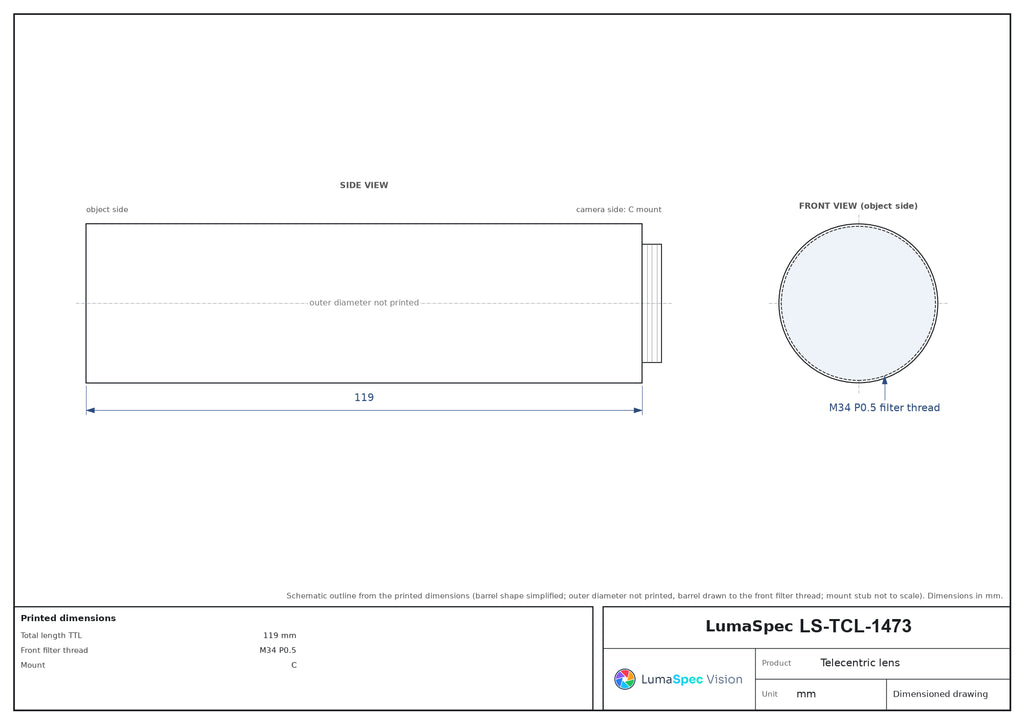

  • LS-TCL-1473 dimensions (mm)

Telecentric lenses

0.767x, WD 43 mm, 1.1", C-mount Telecentric Lens (LS-TCL-1473)

Model LS-TCL-1473

  • Magnification0.767x
  • MountC-mount
  • Sensor1.1"
  • Working distance43±1
  • Aperture6.2
  • Field of view24
$1,359.00

In stock - ships the same business day (5 available, order by 2 PM ET)

0.66 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

0.767x, WD 43 mm, 1.1", C-mount Telecentric Lens (LS-TCL-1473)LS-TCL-1473

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

0.767x, WD 43 mm, 1.1", C-mount Telecentric Lens. At a glance: magnification 0.767x; working distance 43±1 mm; max sensor size 18.4 mm (1.1"); object field of view 24 mm; image-side f/# 6.2.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-1473

Optics

Object field of view (dia. mm)24
Magnification (x)0.767
Working distance (mm)43±1
Image-side F/#6.2
Image-side MTF30 (lp/mm)>140
Theoretical depth of field (mm)±0.7@F11
Image-side distortion (% max)<0.1
Object-side telecentricity (deg max)<0.39
Object-to-image distance I/O (mm)180±1
Total length TTL (mm)119
Front filter threadM34 P0.5

Sensor and imaging

Max sensor size (dia. mm)18.4(1.1")

Mechanical

MountC
Net weight (kg)0.4
Shipping weight (estimated)0.66 kg

Photo shows a representative model of this series; see the specifications for this model.
