Telecentric lenses
1x, WD 24 mm, 1", C-mount Telecentric Lens (LS-TCL-1401)
Model LS-TCL-1401
- Magnification1x
- MountC-mount
- Sensor1"
- Working distance24±1
- Aperture6.5
- Field of view16.6
$1,189.00
Ships in 2-3 weeks
0.38 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
1x, WD 24 mm, 1", C-mount Telecentric Lens. At a glance: magnification 1x; working distance 24±1 mm; max sensor size 16.6 mm (1"); object field of view 16.6 mm; image-side f/# 6.5.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-1401 |
|---|
Optics
| Object field of view (dia. mm) | 16.6 |
|---|---|
| Magnification (x) | 1 |
| Working distance (mm) | 24±1 |
| Image-side F/# | 6.5 |
| Image-side MTF30 (lp/mm) | >125 |
| Theoretical depth of field (mm) | ±0.6@F16 |
| Image-side distortion (% max) | <0.1 |
| Object-side telecentricity (deg max) | <0.25 |
| Object-to-image distance I/O (mm) | 132±1 |

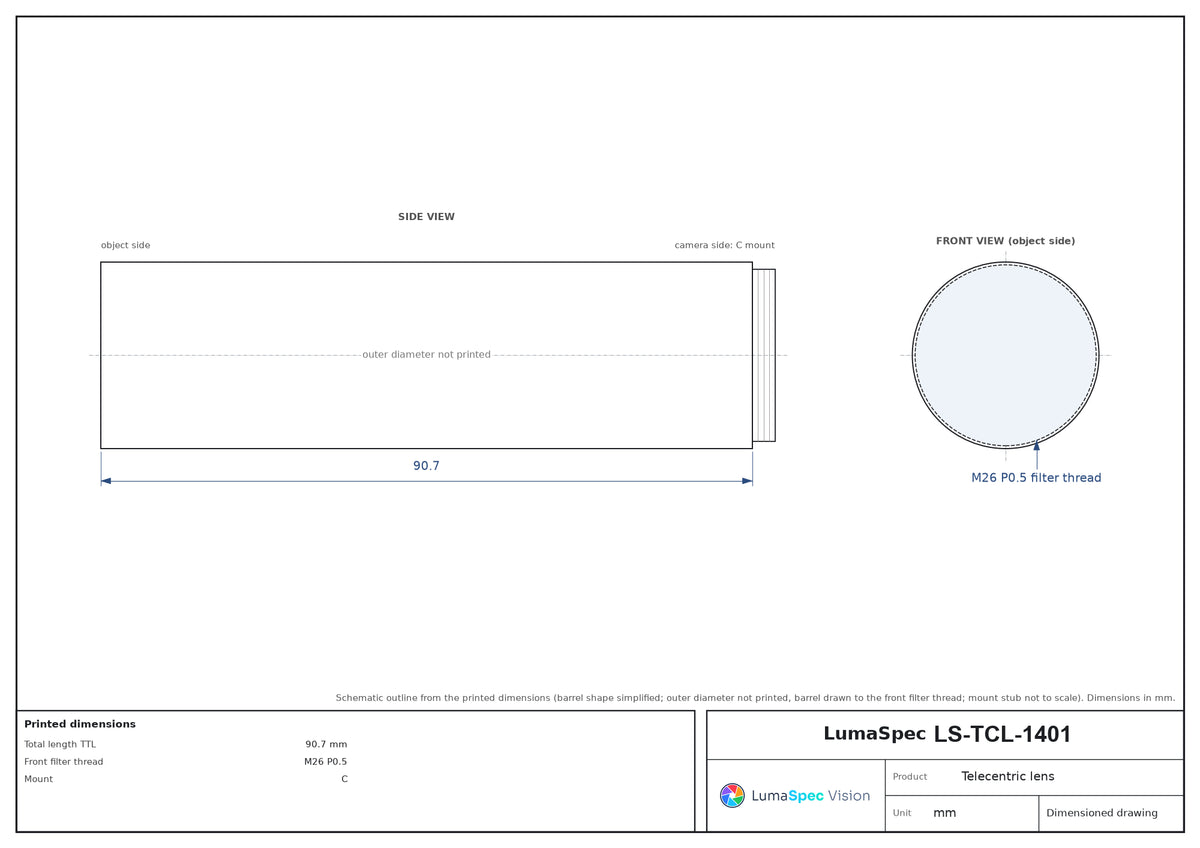

| Total length TTL (mm) | 90.7 |
| Front filter thread | M26 P0.5 |
Sensor and imaging
| Max sensor size (dia. mm) | 16.6(1") |
|---|
Mechanical
| Mount | C |
|---|---|
| Net weight (kg) | 0.2 |
| Shipping weight (estimated) | 0.38 kg |
Photo shows a representative model of this series; see the specifications for this model.
Other models in the Bi-telecentric lenses (LS-TCL-S59) series
See all 508 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-TCL-1471 | 1.108x, WD 24 mm, 1.1", C-mount | $1,189.00 | Ships in 2-3 weeks | View |
| LS-TCL-1506 | 0.482x, WD 24 mm, 1/2", C-mount | $1,189.00 | Ships in 2-3 weeks | View |
| LS-TCL-1846 | 0.687x, WD 24 mm, 2/3", C-mount | $1,189.00 | Ships in 2-3 weeks | View |
| LS-TCL-1681 | 1.446x, WD 24 mm, 4/3" | $1,259.00 | Ships in 2-3 weeks | View |
| LS-TCL-1717 | 1.422x, WD 24 mm, 4/3" | $1,259.00 | Ships in 2-3 weeks | View |
| LS-TCL-1472 | 0.78x, WD 40 mm, 1.1", C-mount | $1,349.00 | Ships in 2-3 weeks | View |
| LS-TCL-1507 | 0.339x, WD 40 mm, 1/2", C-mount | $1,349.00 | Ships in 2-3 weeks | View |
| LS-TCL-1809 | 1.229x, WD 40 mm, 1.75" | $1,349.00 | Ships in 2-3 weeks | View |
| LS-TCL-1402 | 0.703x, WD 40 mm, 1", C-mount | $1,349.00 | Ships in 2-3 weeks | View |
| LS-TCL-1436 | 1.398x, WD 40 mm, 2" | $1,349.00 | Ships in 2-3 weeks | View |
| LS-TCL-1718 | 1x, WD 40 mm, 4/3" | $1,349.00 | Ships in 2-3 weeks | View |
| LS-TCL-1853 | 0.483x, WD 40 mm, 2/3", C-mount | $1,349.00 | Ships in 2-3 weeks | View |
| LS-TCL-1473 | 0.767x, WD 43 mm, 1.1", C-mount | $1,359.00 | Ships in 2-3 weeks | View |
| LS-TCL-1508 | 0.333x, WD 43 mm, 1/2", C-mount | $1,359.00 | Ships in 2-3 weeks | View |
| LS-TCL-1810 | 1.208x, WD 43 mm, 1.75" | $1,359.00 | Ships in 2-3 weeks | View |
| LS-TCL-1403 | 0.692x, WD 43 mm, 1", C-mount | $1,359.00 | Ships in 2-3 weeks | View |
| LS-TCL-1437 | 1.375x, WD 43 mm, 2" | $1,359.00 | Ships in 2-3 weeks | View |
| LS-TCL-1682 | 1x, WD 43 mm, 4/3" | $1,359.00 | Ships in 2-3 weeks | View |
| LS-TCL-1719 | 0.983x, WD 43 mm, 4/3" | $1,359.00 | Ships in 2-3 weeks | View |
| LS-TCL-1854 | 0.477x, WD 43 mm, 2/3", C-mount | $1,359.00 | Ships in 2-3 weeks | View |
| LS-TCL-1474 | 0.708x, WD 73 mm, 1.1", C-mount | $1,399.00 | Ships in 2-3 weeks | View |
| LS-TCL-1509 | 0.308x, WD 73 mm, 1/2", C-mount | $1,399.00 | Ships in 2-3 weeks | View |
| LS-TCL-1404 | 0.638x, WD 73 mm, 1", C-mount | $1,399.00 | Ships in 2-3 weeks | View |
| LS-TCL-1855 | 0.438x, WD 73 mm, 2/3", C-mount | $1,399.00 | Ships in 2-3 weeks | View |
