Telecentric lenses
0.983x, WD 43 mm, 4/3" Telecentric Lens (LS-TCL-1719)
Model LS-TCL-1719
- Magnification0.983x
- MountC-mount
- Sensor4/3"
- Working distance43±1
- Aperture7.4
- Field of view24
$1,359.00
Ships in 2-3 weeks
0.75 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
0.983x, WD 43 mm, 4/3" Telecentric Lens. At a glance: magnification 0.983x; working distance 43±1 mm; max sensor size 23.6 mm (4/3"); object field of view 24 mm; image-side f/# 7.4.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-1719 |
|---|
Optics
| Object field of view (dia. mm) | 24 |
|---|---|
| Magnification (x) | 0.983 |
| Working distance (mm) | 43±1 |
| Image-side F/# | 7.4 |
| Image-side MTF30 (lp/mm) | >118 |
| Theoretical depth of field (mm) | ±0.3@F16 |
| Image-side distortion (% max) | <0.1 |
| Object-side telecentricity (deg max) | <0.1 |
| Object-to-image distance I/O (mm) | 195±1 |

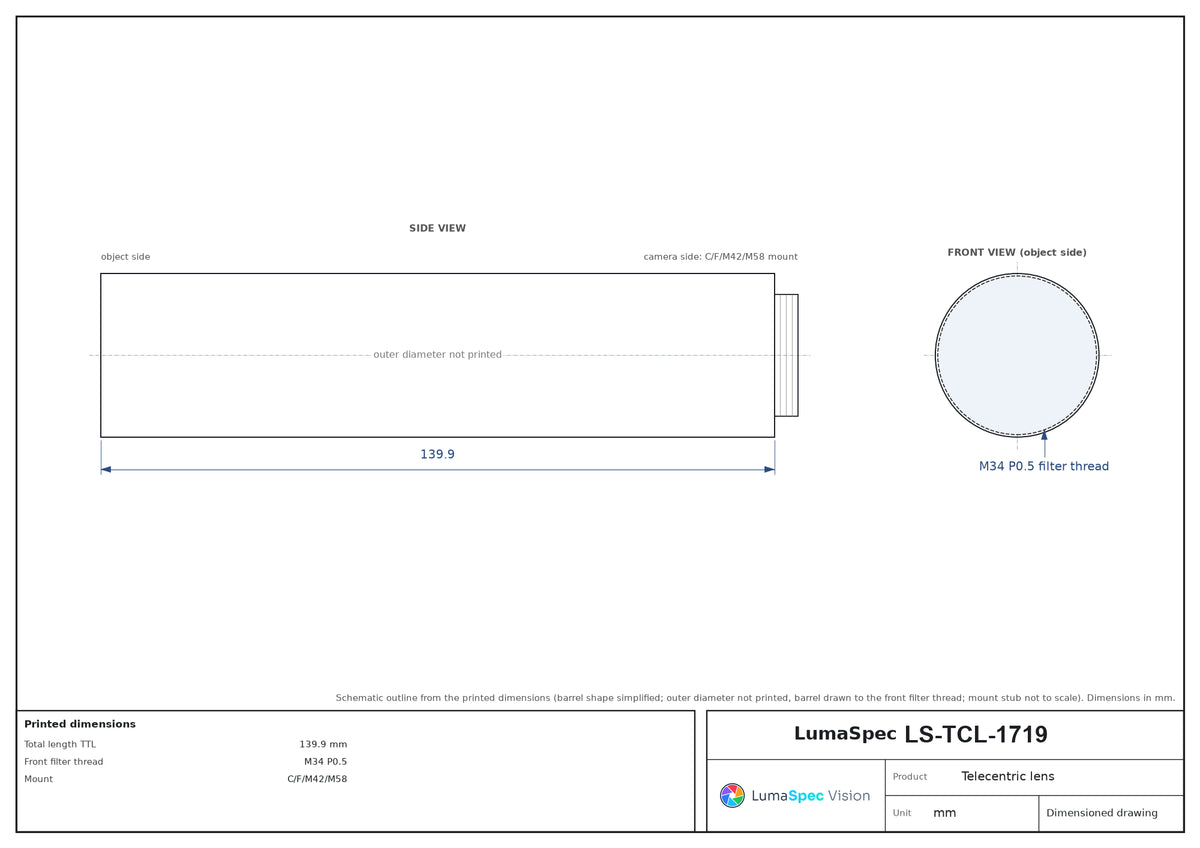

| Total length TTL (mm) | 139.9 |
| Front filter thread | M34 P0.5 |
Sensor and imaging
| Max sensor size (dia. mm) | 23.6(4/3") |
|---|
Mechanical
| Mount | C/F/M42/M58 |
|---|---|
| Shipping weight (estimated) | 0.75 kg |
Photo shows a representative model of this series; see the specifications for this model.
