Telecentric lenses
0.692x, WD 43 mm, 1", C-mount Telecentric Lens (LS-TCL-1403)
Model LS-TCL-1403
- Magnification0.692x
- MountC-mount
- Sensor1"
- Working distance43±1
- Aperture6.5
- Field of view24
$1,359.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.52 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
0.692x, WD 43 mm, 1", C-mount Telecentric Lens. At a glance: magnification 0.692x; working distance 43±1 mm; max sensor size 16.6 mm (1"); object field of view 24 mm; image-side f/# 6.5.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-1403 |
|---|
Optics
| Object field of view (dia. mm) | 24 |
|---|---|
| Magnification (x) | 0.692 |
| Working distance (mm) | 43±1 |
| Image-side F/# | 6.5 |
| Image-side MTF30 (lp/mm) | >130 |
| Theoretical depth of field (mm) | ±1.3@F11 |
| Image-side distortion (% max) | <0.1 |
| Object-side telecentricity (deg max) | <0.39 |
| Object-to-image distance I/O (mm) | 168±1 |

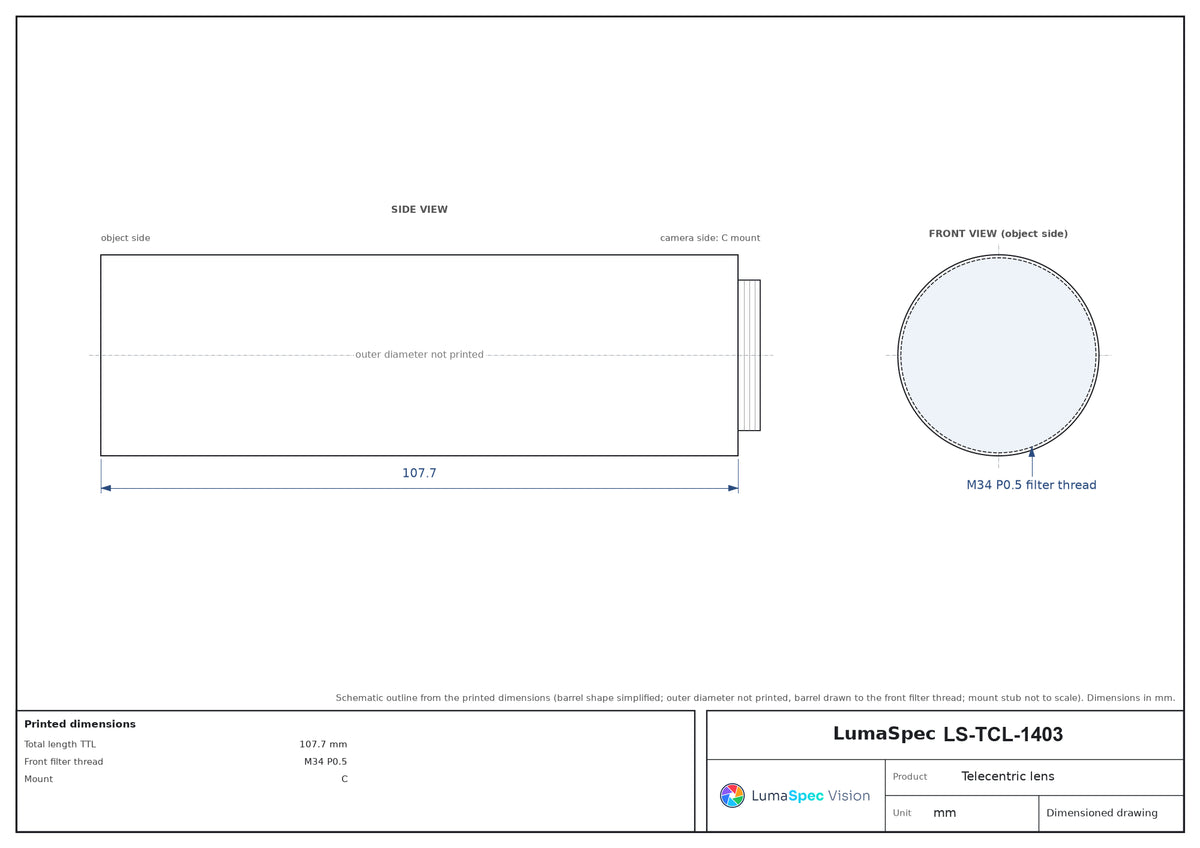

| Total length TTL (mm) | 107.7 |
| Front filter thread | M34 P0.5 |
Sensor and imaging
| Max sensor size (dia. mm) | 16.6(1") |
|---|
Mechanical
| Mount | C |
|---|---|
| Net weight (kg) | 0.3 |
| Shipping weight (estimated) | 0.52 kg |
Photo shows a representative model of this series; see the specifications for this model.
