0.167x, WD 200 mm, 1", C-mount telecentric lens
LS-TCL-1319
- Magnification 0.167x
- Mount C-mount
- Sensor 1"
$3,089.00
Ships in 2-3 weeks
Shop by part
Lenses
Machine-vision lenses for every camera: fixed-focal C-mount, telecentric for measuring, line-scan, M12 board, 360-degree and thermal / SWIR / UV optics. Start from your camera's mount and sensor format.
Choose a category
-
Machine vision lensesFixed and zoom lenses, C-mount to M721651 models
-
Telecentric lensesConstant magnification for measuring2965 models
-
Line scan lensesFor 2K-16K and 100 MP+ line cameras245 models
-
M12 board lensesS-mount lenses for board cameras195 models
-
360° inspection lensesWhole outer wall or bore in one shot113 models
-
Thermal, SWIR & UV lensesLWIR, 900-1700 nm and UV282 models
-
CCTV lensesVarifocal, fisheye and zoom for security158 models
Products
1.173x, WD 152 mm, M95-mount telecentric lens
LS-TCL-1354
- Magnification 1.173x
- Mount M95
- Sensor Large format
$2,629.00
Ships in 2-3 weeks
0.853x, WD 125 mm, M72-mount telecentric lens
LS-TCL-1349
- Magnification 0.853x
- Mount M72
- Sensor Large format
$2,579.00
Ships in 2-3 weeks
0.2x, WD 350 mm, 1.1", C-mount telecentric lens
LS-TCL-1330
- Magnification 0.2x
- Mount C-mount
- Sensor 1.1"
$2,899.00
Ships in 2-3 weeks

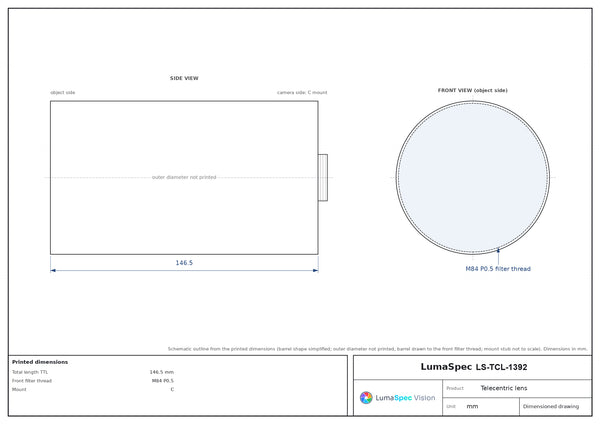

0.166x, WD 173 mm, 2/3", C-mount telecentric lens
LS-TCL-1392
- Magnification 0.166x
- Mount C-mount
- Sensor 2/3"
$2,319.00
Ships in 2-3 weeks
0.178x, WD 260 mm, 2/3", C-mount telecentric lens
LS-TCL-1391
- Magnification 0.178x
- Mount C-mount
- Sensor 2/3"
$2,269.00
Ships in 2-3 weeks
0.263x, WD 150 mm, 1", C-mount telecentric lens
LS-TCL-1321
- Magnification 0.263 / 0.256x
- Mount C-mount
- Sensor 1"
$2,259.00
Ships in 2-3 weeks

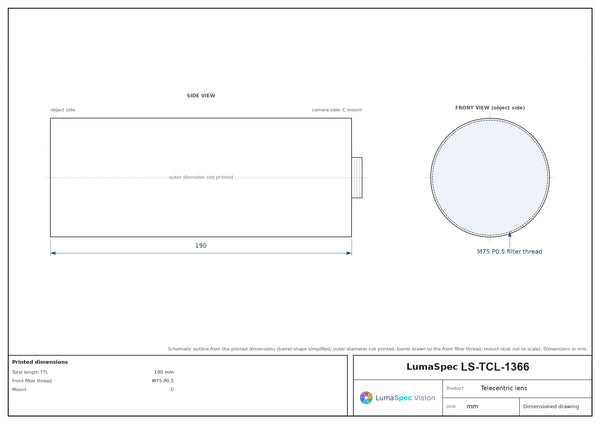

0.148x, WD 520 mm, 1/1.7", C-mount telecentric lens
LS-TCL-1366
- Magnification 0.148x
- Mount C-mount
- Sensor 1/1.7"
$2,409.00
Ships in 2-3 weeks

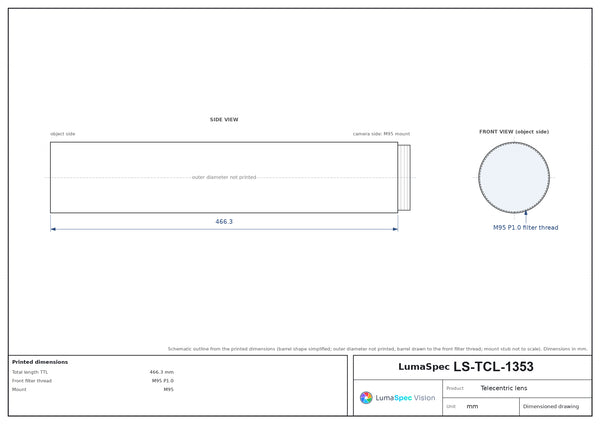

1.419x, WD 123 mm, M95-mount telecentric lens
LS-TCL-1353
- Magnification 1.419x
- Mount M95
- Sensor Large format
$2,339.00
Ships in 2-3 weeks
1x, WD 102 mm, M72-mount telecentric lens
LS-TCL-1348
- Magnification 1x
- Mount M72
- Sensor Large format
$2,279.00
Ships in 2-3 weeks
0.3x, WD 158 mm, 1.1", C-mount telecentric lens
LS-TCL-1328
- Magnification 0.3x
- Mount C-mount
- Sensor 1.1"
$2,209.00
Ships in 2-3 weeks
0.142x, WD 265 mm, 2/3", C-mount telecentric lens
LS-TCL-1393
- Magnification 0.142x
- Mount C-mount
- Sensor 2/3"
$2,639.00
Ships in 2-3 weeks
0.37x, WD 250 mm, 1.1", C-mount telecentric lens
LS-TCL-1326
- Magnification 0.37x
- Mount C-mount
- Sensor 1.1"
$1,919.00
Ships in 2-3 weeks
0.287x, WD 220 mm, 1.1", C-mount telecentric lens
LS-TCL-1329
- Magnification 0.287x
- Mount C-mount
- Sensor 1.1"
$2,269.00
Ships in 2-3 weeks
0.179x, WD 260 mm, 2/3", C-mount telecentric lens
LS-TCL-1390
- Magnification 0.179x
- Mount C-mount
- Sensor 2/3"
$2,219.00
Ships in 2-3 weeks
0.179x, WD 150 mm, 2/3", C-mount fixed-magnification lens
LS-TCL-1389
- Magnification 0.179x
- Mount C-mount
- Sensor 2/3"
$2,209.00
Ships in 2-3 weeks
0.55x, WD 83 mm, 4/3", C-mount telecentric lens
LS-TCL-1364
- Magnification 0.55x
- Mount C-mount
- Sensor 4/3"
$1,769.00
Ships in 2-3 weeks
0.286x, WD 180 mm, 1", C-mount fixed-magnification lens
LS-TCL-1318
- Magnification 0.286x
- Mount C-mount
- Sensor 1"
$2,089.00
Ships in 2-3 weeks
0.3x, WD 110 mm, 2/3", C-mount telecentric lens, length 145.5 mm with coaxial light
LS-TCL-1388
- Magnification 0.3x
- Mount C-mount
- Sensor 2/3"
$1,649.00
Ships in 2-3 weeks
0.3x, WD 110 mm, 2/3", C-mount telecentric lens, length 145.5 mm
LS-TCL-1387
- Magnification 0.3x
- Mount C-mount
- Sensor 2/3"
$1,649.00
Ships in 2-3 weeks
0.353x, WD 108 mm, 1.1", C-mount fixed-magnification lens
LS-TCL-1327
- Magnification 0.353x
- Mount C-mount
- Sensor 1.1"
$1,999.00
Ships in 2-3 weeks
0.55x, WD 220 mm, 1.75", M42-mount telecentric lens
LS-TCL-1374
- Magnification 0.55x
- Mount M42
- Sensor 1.75"
$1,979.00
Ships in 2-3 weeks
0.191x, WD 135 mm, 1/1.7", C-mount fixed-magnification lens
LS-TCL-1365
- Magnification 0.191x
- Mount C-mount
- Sensor 1/1.7"
$1,939.00
Ships in 2-3 weeks
0.17x, WD 185 mm, 1/2.3", C-mount fixed-magnification lens
LS-TCL-1369
- Magnification 0.17x
- Mount C-mount
- Sensor 1/2.3"
$2,139.00
Ships in 2-3 weeks
| Compare | |||||||||
|---|---|---|---|---|---|---|---|---|---|
 LS-TCL-13190.167x, WD 200 mm, 1", C-mount telecentric lens
| 0.167x | C-mount | 1" | 200 mm | F6.4 | Ø 99.6 mm | $3,089.00 | Ships in 2-3 weeks | |
 LS-TCL-13541.173x, WD 152 mm, M95-mount telecentric lens
| 1.173x | M95 | Large format | 152 mm | F7 | Ø 75 mm | $2,629.00 | Ships in 2-3 weeks | |
 LS-TCL-13490.853x, WD 125 mm, M72-mount telecentric lens
| 0.853x | M72 | Large format | 125 mm | F6 | Ø 72.7 mm | $2,579.00 | Ships in 2-3 weeks | |
 LS-TCL-13300.2x, WD 350 mm, 1.1", C-mount telecentric lens
| 0.2x | C-mount | 1.1" | 350 mm | F7 | Ø 91 mm | $2,899.00 | Ships in 2-3 weeks | |
 LS-TCL-13920.166x, WD 173 mm, 2/3", C-mount telecentric lens
| 0.166x | C-mount | 2/3" | 173 mm | 3.3 to closed | Ø 66 mm | $2,319.00 | Ships in 2-3 weeks | |
 LS-TCL-13910.178x, WD 260 mm, 2/3", C-mount telecentric lens
| 0.178x | C-mount | 2/3" | 260 mm | F4.9-32 | Ø 64 mm | $2,269.00 | Ships in 2-3 weeks | |
|
LS-TCL-13210.263x, WD 150 mm, 1", C-mount telecentric lens
| 0.263 / 0.256x | C-mount | 1" | 150 / 180 mm | F6.5 | 63.2 / 64.8 mm | $2,259.00 | Ships in 2-3 weeks | |
 LS-TCL-13660.148x, WD 520 mm, 1/1.7", C-mount telecentric lens
| 0.148x | C-mount | 1/1.7" | 520 mm | F8 | Ø 63.5 mm | $2,409.00 | Ships in 2-3 weeks | |
 LS-TCL-13531.419x, WD 123 mm, M95-mount telecentric lens
| 1.419x | M95 | Large format | 123 mm | F7 | Ø 62 mm | $2,339.00 | Ships in 2-3 weeks | |
 LS-TCL-13481x, WD 102 mm, M72-mount telecentric lens
| 1x | M72 | Large format | 102 mm | F7 | Ø 62 mm | $2,279.00 | Ships in 2-3 weeks | |
|
LS-TCL-13280.3x, WD 158 mm, 1.1", C-mount telecentric lens
| 0.3x | C-mount | 1.1" | 158 mm | F6.2 | Ø 61.3 mm | $2,209.00 | Ships in 2-3 weeks | |
|
LS-TCL-13930.142x, WD 265 mm, 2/3", C-mount telecentric lens
| 0.142x | C-mount | 2/3" | 265 mm | F4.9 | Ø 80 mm | $2,639.00 | Ships in 2-3 weeks | |
|
LS-TCL-13260.37x, WD 250 mm, 1.1", C-mount telecentric lens
| 0.37x | C-mount | 1.1" | 250 mm | F7.1 | Ø 48.7 mm | $1,919.00 | Ships in 2-3 weeks | |
|
LS-TCL-13290.287x, WD 220 mm, 1.1", C-mount telecentric lens
| 0.287x | C-mount | 1.1" | 220 mm | F8 | Ø 64 mm | $2,269.00 | Ships in 2-3 weeks | |
|
LS-TCL-13900.179x, WD 260 mm, 2/3", C-mount telecentric lens
| 0.179x | C-mount | 2/3" | 260 mm | F8 | Ø 61.5 mm | $2,219.00 | Ships in 2-3 weeks | |
 LS-TCL-13890.179x, WD 150 mm, 2/3", C-mount fixed-magnification lens
| 0.179x | C-mount | 2/3" | 150 mm | F6.3 | Ø 61.4 mm | $2,209.00 | Ships in 2-3 weeks | |
 LS-TCL-13640.55x, WD 83 mm, 4/3", C-mount telecentric lens
| 0.55x | C-mount | 4/3" | 83 mm | F8 | Ø 41.8 mm | $1,769.00 | Ships in 2-3 weeks | |
 LS-TCL-13180.286x, WD 180 mm, 1", C-mount fixed-magnification lens
| 0.286x | C-mount | 1" | 180 mm | F7 | Ø 55.9 mm | $2,089.00 | Ships in 2-3 weeks | |
 LS-TCL-13880.3x, WD 110 mm, 2/3", C-mount telecentric lens, length 145.5 mm with coaxial light
| 0.3x | C-mount | 2/3" | 110 mm | 3.75 to closed | Ø 37 mm | $1,649.00 | Ships in 2-3 weeks | |
 LS-TCL-13870.3x, WD 110 mm, 2/3", C-mount telecentric lens, length 145.5 mm
| 0.3x | C-mount | 2/3" | 110 mm | 3.75 to closed | Ø 37 mm | $1,649.00 | Ships in 2-3 weeks | |
 LS-TCL-13270.353x, WD 108 mm, 1.1", C-mount fixed-magnification lens
| 0.353x | C-mount | 1.1" | 108 mm | F8.6 | Ø 52 mm | $1,999.00 | Ships in 2-3 weeks | |
|
LS-TCL-13740.55x, WD 220 mm, 1.75", M42-mount telecentric lens
| 0.55x | M42 | 1.75" | 220 mm | F8 | Ø 51.2 mm | $1,979.00 | Ships in 2-3 weeks | |
 LS-TCL-13650.191x, WD 135 mm, 1/1.7", C-mount fixed-magnification lens
| 0.191x | C-mount | 1/1.7" | 135 mm | F5.2 | Ø 49.2 mm | $1,939.00 | Ships in 2-3 weeks | |
 LS-TCL-13690.17x, WD 185 mm, 1/2.3", C-mount fixed-magnification lens
| 0.17x | C-mount | 1/2.3" | 185 mm | F6.2 | Ø 47 mm | $2,139.00 | Ships in 2-3 weeks |
