Telecentric lenses

0.3x, WD 110 mm, 2/3", C-mount Telecentric Lens, length 145.5 mm (LS-TCL-1388)

Model LS-TCL-1388

Magnification0.3x
MountC-mount
Sensor2/3"
Working distance110 mm
Aperture3.75-Close
Field of view37

$1,649.00

Ships in 2-3 weeks

0.66 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

0.3x, WD 110 mm, 2/3", C-mount Telecentric Lens. At a glance: magnification 0.3x; working distance 110 mm; max sensor size 11 mm (2/3"); object field of view 37 mm; object-side resolution 8.3875 µm.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-TCL-1388

Optics

Telecentric type	Bi-telecentric
Object field of view (dia. mm)	37
Magnification (x)	0.3
Working distance (mm)	110
Image-side F/#	3.75-Close
Image-side MTF30 (lp/mm)	>220
Theoretical depth of field (mm)	±1.7@F3.75
Image-side distortion (% max)	<0.1
Telecentricity (deg max)	<0.1
Object-to-image distance I/O (mm)	273
Numerical aperture NA	0.04
Object-side resolution (um)	8.3875

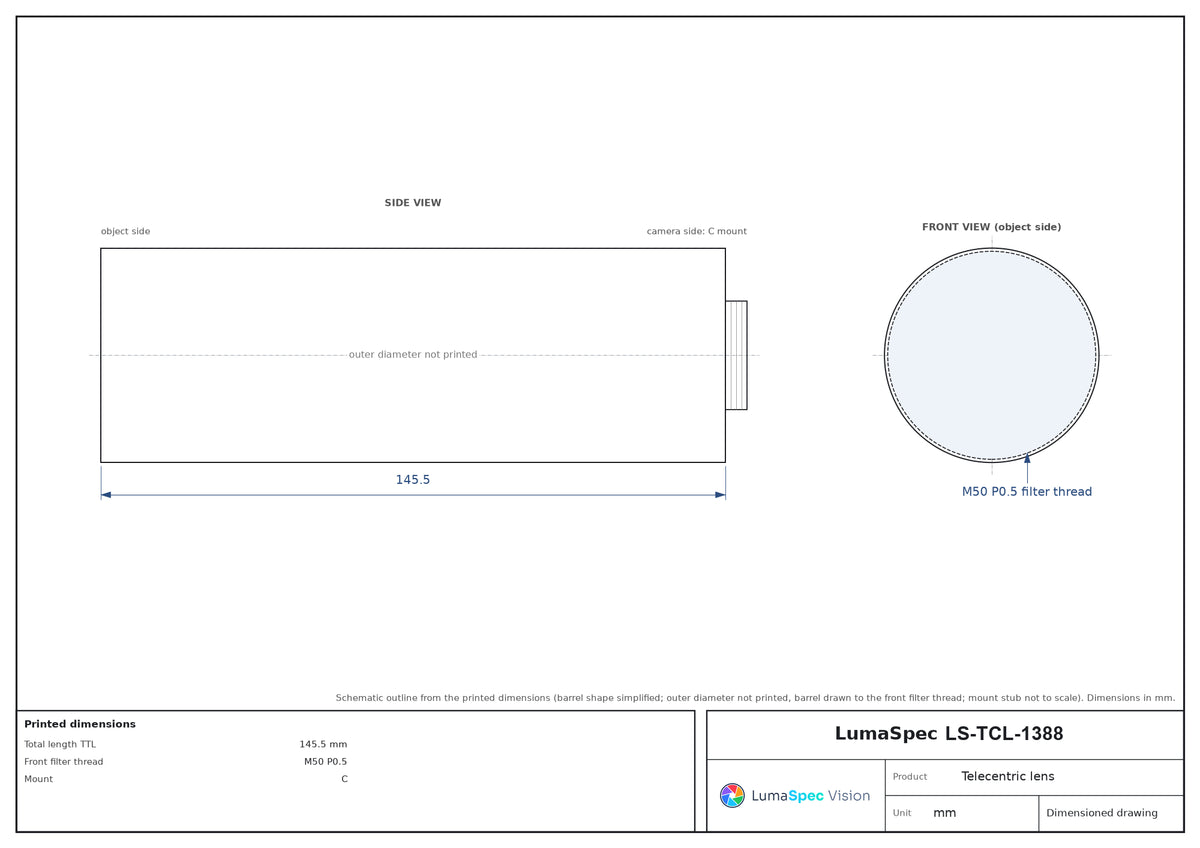

Total length TTL (mm)	145.5
Manual iris	Yes
Coaxial illumination	Yes
Front filter thread	M50 P0.5
Measured depth of field as shipped (mm)	1

Sensor and imaging

Max sensor size (dia. mm)	11(2/3")

Mechanical

Mount	C
Net weight (kg)	0.4
Shipping weight (estimated)	0.66 kg

Photo shows a representative model of this series; see the specifications for this model.
