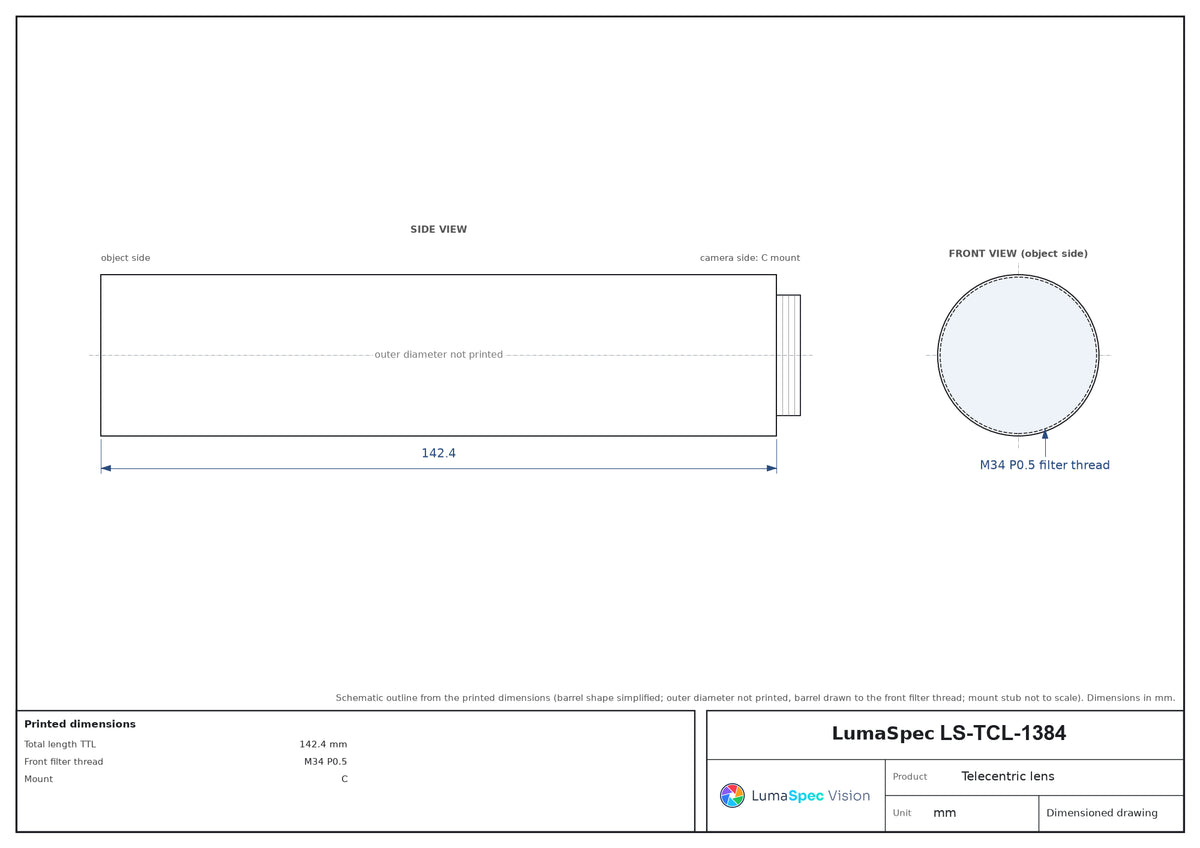

  • LS-TCL-1384 dimensions (mm)

Telecentric lenses

0.4x, WD 85 mm, 2/3", C-mount Telecentric Lens (LS-TCL-1384)

Model LS-TCL-1384

  • Magnification0.4x
  • MountC-mount
  • Sensor2/3"
  • Working distance85 mm
  • Aperture4.5
  • Field of view27.5
$1,429.00

Ships in 2-3 weeks

0.52 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

0.4x, WD 85 mm, 2/3", C-mount Telecentric Lens (LS-TCL-1384)LS-TCL-1384

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

0.4x, WD 85 mm, 2/3", C-mount Telecentric Lens. At a glance: magnification 0.4x; working distance 85 mm; max sensor size 11 mm (2/3"); object field of view 27.5 mm; object-side resolution 7.6 µm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-1384

Optics

Telecentric typeBi-telecentric
Object field of view (dia. mm)27.5
Magnification (x)0.4
Working distance (mm)85
Image-side F/#4.5
Image-side MTF30 (lp/mm)>205
Theoretical depth of field (mm)±1.1@F4.5
Image-side distortion (% max)<0.03
Telecentricity (deg max)<0.1
Object-to-image distance I/O (mm)245
Numerical aperture NA0.04439
Object-side resolution (um)7.6
Total length TTL (mm)142.4
Manual irisNo
Coaxial illuminationNo
Front filter threadM34 P0.5

Sensor and imaging

Max sensor size (dia. mm)11(2/3")

Mechanical

MountC
Net weight (kg)0.3
Shipping weight (estimated)0.52 kg

Photo shows a representative model of this series; see the specifications for this model.
