Telecentric lenses
0.5x, WD 65 mm, 2/3", C-mount Telecentric Lens, 6.7 um object-side resolution (LS-TCL-1380)
Model LS-TCL-1380
- Magnification0.5x
- MountC-mount
- Sensor2/3"
- Working distance65 mm
- Aperture5
- Field of view22
$1,309.00
Ships in 2-3 weeks
0.38 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
0.5x, WD 65 mm, 2/3", C-mount Telecentric Lens. At a glance: magnification 0.5x; working distance 65 mm; max sensor size 11 mm (2/3"); object field of view 22 mm; object-side resolution 6.7 µm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-1380 |
|---|
Optics
| Telecentric type | Bi-telecentric |
|---|---|
| Object field of view (dia. mm) | 22 |
| Magnification (x) | 0.5 |
| Working distance (mm) | 65 |
| Image-side F/# | 5 |
| Image-side MTF30 (lp/mm) | >160 |
| Theoretical depth of field (mm) | ±0.8@F5.0 |
| Image-side distortion (% max) | <0.1 |
| Telecentricity (deg max) | <0.1 |
| Object-to-image distance I/O (mm) | 189 |
| Numerical aperture NA | 0.05 |
| Object-side resolution (um) | 6.7 |

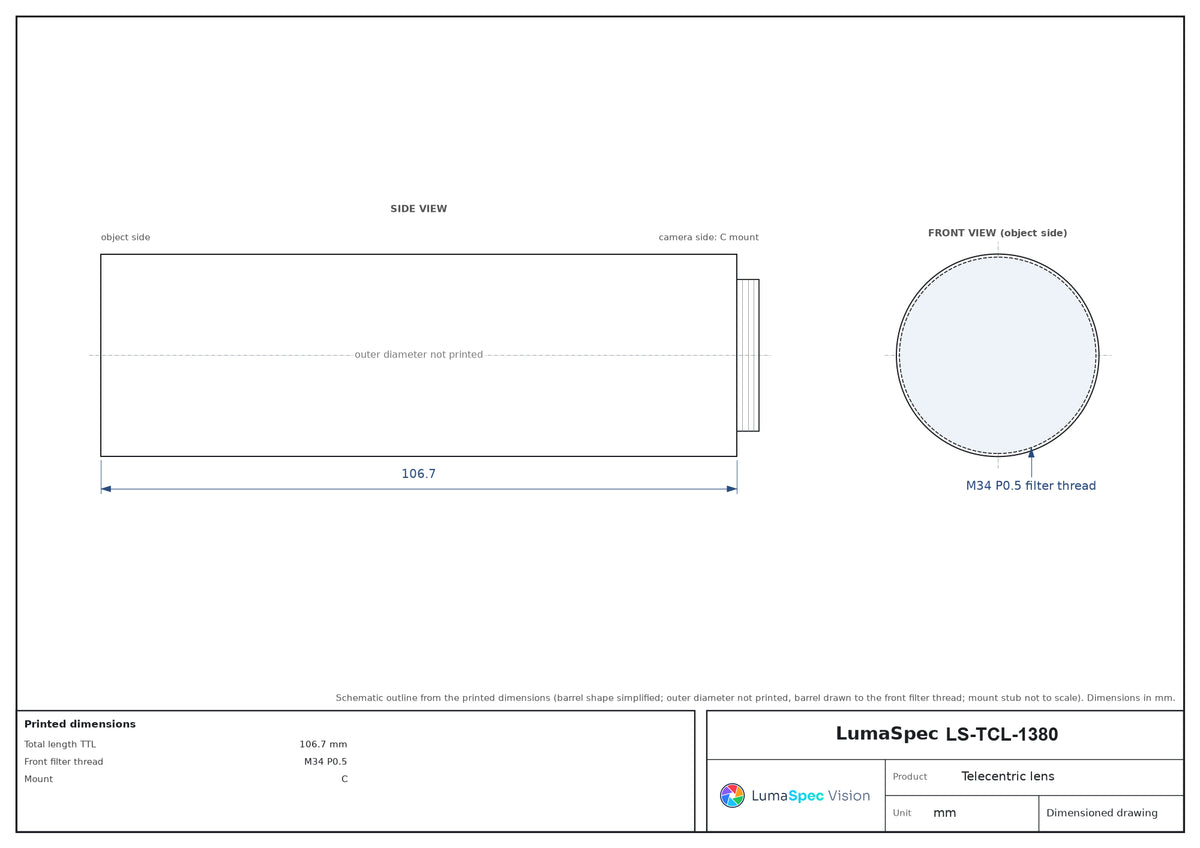

| Total length TTL (mm) | 106.7 |
| Manual iris | No |
| Coaxial illumination | No |
| Front filter thread | M34 P0.5 |
| Measured depth of field as shipped (mm) | 0.6 |
Sensor and imaging
| Max sensor size (dia. mm) | 11(2/3") |
|---|
Mechanical
| Mount | C |
|---|---|
| Net weight (kg) | 0.2 |
| Shipping weight (estimated) | 0.38 kg |
Photo shows a representative model of this series; see the specifications for this model.
