Light controllers power and dim your LED lights and sync them to the camera trigger. Analog controllers use a knob; digital controllers add per-channel brightness settings, strobe and serial control from the PC or PLC.

Shop by channels: 1-channel light controllers · 2-channel light controllers · 4-channel light controllers · 8-channel light controllers

573 models Configure a systemAll light controllers
Light controllers

289-312 of 573 models

Products

Compare
LS-CTL-0258High power digital controller (DCS2, network option), 2 ch, 60 W 260 WdigitalHigh power--$489.00 Ships in 2-3 weeks
LS-CTL-0250High power digital controller (DCS2, network option), 1 ch, 150 W 1150 WdigitalHigh power--$499.00 Ships in 2-3 weeks
LS-CTL-0237Mini digital controller 3.0, 4 ch, 120 W 4120 WdigitalConstant current--$349.00 Ships in 2-3 weeks

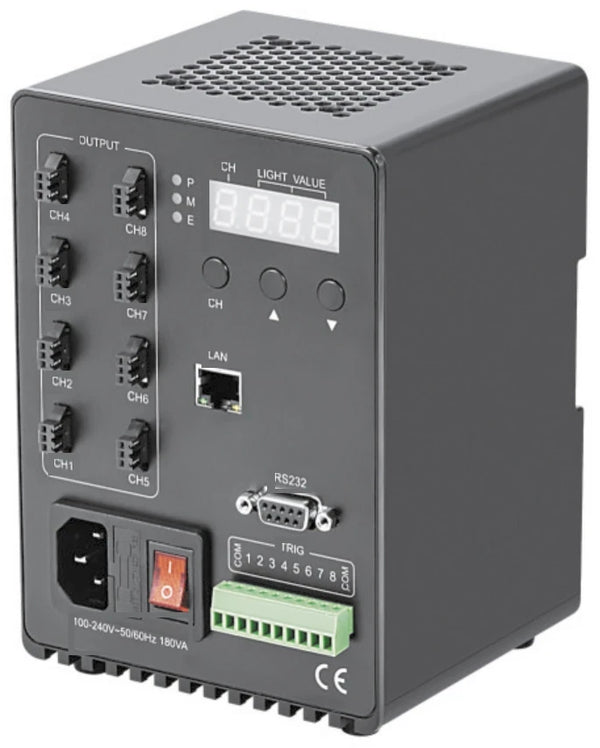

LS-CTL-0163Programmable constant-current controller, 8 ch, 96 W 896 W--DC 24VAC200-240V 50/60Hz$469.00 Ships in 2-3 weeks
LS-CTL-0235Mini digital controller 3.0, 4 ch, 60 W 460 WdigitalConstant current--$319.00 Ships in 2-3 weeks
LS-CTL-0167High-power constant-current controller, 1 ch, 760 W 1760 W--DC 48VAC90-240V 50/60Hz$829.00 Ships in 2-3 weeks
LS-CTL-0233Mini digital controller 3.0, 4 ch, 12 W 412 WdigitalConstant current--$289.00 Ships in 2-3 weeks
LS-CTL-0234Mini digital controller 3.0, 4 ch, 12 W 412 WdigitalConstant current--$289.00 Ships in 2-3 weeks

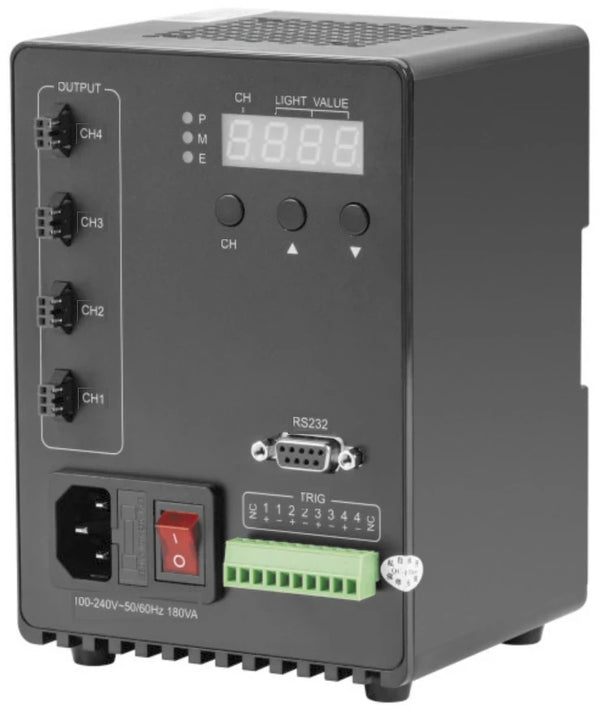

LS-CTL-0162Standard constant-current controller, 4 ch, 96 W 496 WModbus over RS232-DC 24VAC100-240V 50/60Hz$339.00 Ships in 2-3 weeks
LS-CTL-0160Constant-current controller, spot light controller, 4 ch, 18 W 418.0 WAnalog panel knob-5VAC100-240V 50/60Hz$299.00 Ships in 2-3 weeks
LS-CTL-0161Constant-current controller, digital spot light controller, 4 ch, 30 W 430 W--DC 5VAC100-240V 50/60Hz$309.00 Ships in 2-3 weeks
LS-CTL-0166High-power constant-current controller, 1 ch, 320 W 1320 W--DC 48VAC200-240V 50/60Hz$539.00 Ships in 2-3 weeks
LS-CTL-0144Analog control box, 2 ch, 48 W 2 Way48W--12-24VDC 24V$189.00 Ships in 2-3 weeks
LS-CTL-0133Analog controller, 4 ch, 60 W, 36 W 4CH60Wanalog knob (stepless)-DC12-24V-$319.00 Ships in 2-3 weeks
LS-CTL-0158Constant-current controller, spot light controller, 4 ch, 14 W 414 W--DC 5VAC100-240V 50/60Hz$299.00 Ships in 2-3 weeks
LS-CTL-0130Analog controller, 4 ch, 36 W, 24 W 4CH36Wanalog knob (stepless)-DC12-24V-$309.00 Ships in 2-3 weeks
LS-CTL-0159Constant-current controller, spot light controller, 4 ch, 22 W 422 W--DC 5VAC100-240V 50/60Hz$299.00 Ships in 2-3 weeks
LS-CTL-0128Analog controller, 2 ch, 36 W, 24 W 2CH36Wanalog knob (stepless)-DC12-24V-$239.00 Ships in 2-3 weeks
LS-CTL-0131Analog controller, 4 ch, 36 W 4CH36Wanalog knob (stepless)-DC12-24V-$309.00 Ships in 2-3 weeks
LS-CTL-0132Analog controller, 2 ch, 60 W, 36 W 2CH60Wanalog knob (stepless)-DC12-24V-$249.00 Ships in 2-3 weeks
LS-CTL-0129Analog controller, 2 ch, 36 W 2CH36Wanalog knob (stepless)-DC12-24V-$239.00 Ships in 2-3 weeks

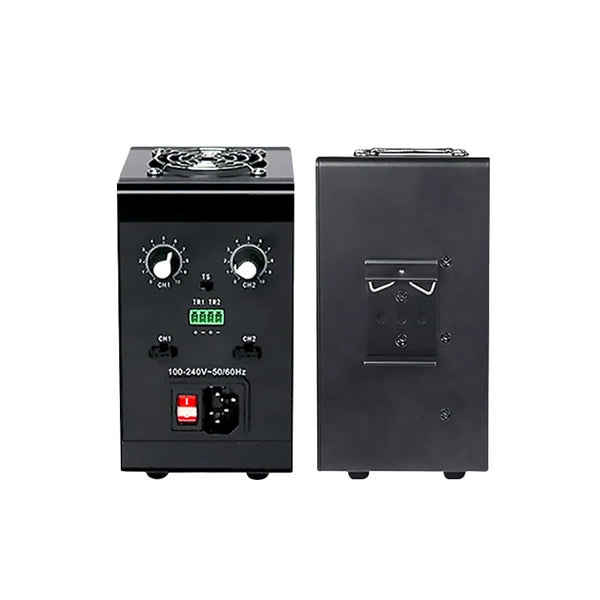

LS-CTL-0106Two / four channel standard analog controller, 2 ch, 6 W 26 WAnalog-DC14V~24V-$229.00 Ships in 2-3 weeks
LS-CTL-0087Brighten strobe controller, 4 ch 4-RS232/LAN-48V100-240VAC$789.00 Ships in 2-3 weeks

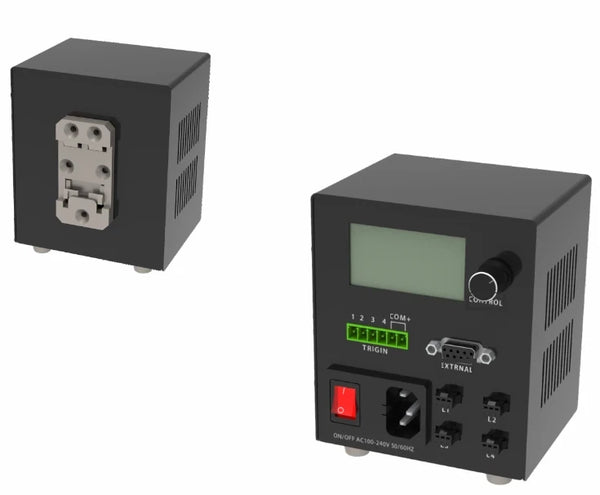

LS-CTL-0099ACC spot lighting controller, 4 ch, 10 W 4CH10 W--Constant currentAC 100-240W$289.00 Ships in 2-3 weeks

How to choose a machine vision light controller

1. Channels

One channel drives one light at its own brightness. Count the lights that must be set or switched separately: a ring plus a backlight need two channels; a multi-angle setup that takes several images in sequence needs one channel per angle. 2-channel, 4-channel and 8-channel controllers cover most stations.

2. Power per channel

Add up the power of the lights on each channel and keep a margin: a controller rated for less current than the light draws runs it dim or shuts down. High-power line and spot lights may need a high-power controller.

3. Constant, strobe or overdrive

Constant light suits slow or stationary parts. Strobing flashes the light only during the exposure, from the camera or sensor trigger: it freezes moving parts, keeps the LEDs cool and lets the controller drive short pulses above the continuous rating (overdrive) for more light. Check the trigger input, the shortest pulse and the delay between trigger and flash.

4. How it is set

Manual knobs suit fixed setups; RS-232 or Ethernet control lets the vision software change brightness per inspection step and store recipes. Analog dimming takes a 0-10 V signal from a PLC.

5. Voltage and connectors

Match the output voltage to the lights (24 V DC for almost every light here) and check the connector, or plan an adapter cable. Lights and controllers from the same range plug together directly.
