Light controllers

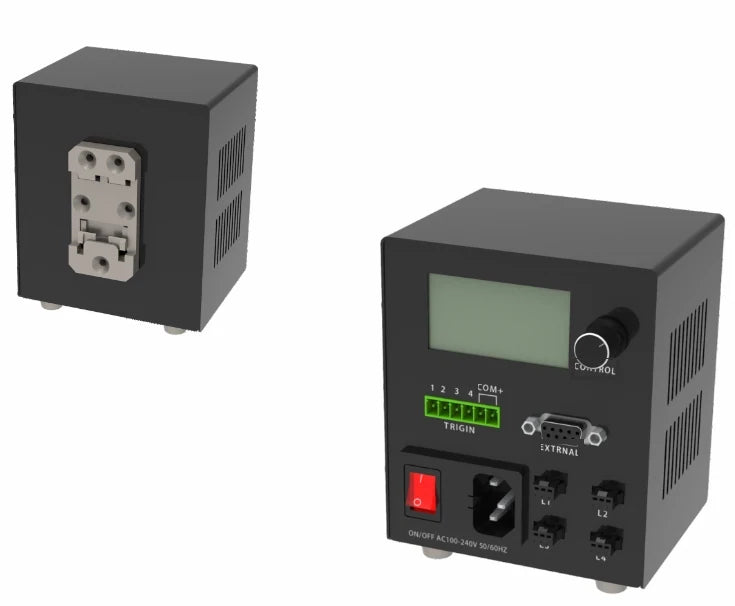

ACC spot lighting controller, 4 ch, 10 W (LS-CTL-0099)
Model LS-CTL-0099
- Channels4CH
- InputAC 100-240W
- Total output10 W
- OutputConstant current
$289.00
Ships in 2-3 weeks
0.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Ensures stable brightness of the light source. Automatically recognizes lighting power, outputs the corresponding current value. With a constant current accuracy of up to 0.5%.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0099 |
|---|---|
| Lighting mode | Continuous mode |
| Dimming method | Variable current control |
| Suitable light | 5V 3W MAX (Spot light) |
| Emission delay | 10us MAX |
| Control | 256-level digital / RS232 option (per coding rule) |
Electrical
| Input voltage | AC 100-240W |
|---|---|
| Drive mode | Constant Current |
| Number of channels | 4CH |
| Trigger input voltage | 5-24V |
| Total output (W) | 10 |
| Power (W) | 10 |
Mechanical
| Shipping weight | 0.50 kg |
|---|
