Light controllers power and dim your LED lights and sync them to the camera trigger. Analog controllers use a knob; digital controllers add per-channel brightness settings, strobe and serial control from the PC or PLC.

Shop by channels: 1-channel light controllers · 2-channel light controllers · 4-channel light controllers · 8-channel light controllers

573 models Configure a systemAll light controllers
Light controllers

337-360 of 573 models

Products

Compare
LS-CTL-0062Digital control box, 2 ch, 60 W 224VDC 24V3.34ARS232$359.00 Ships in 2-3 weeks
LS-CTL-0060High power constant current controller, 1 ch, max. output power 1350 W per channel 1Constant currentAC 100-240V-RS232/LAN$1,099.00 Ships in 2-3 weeks
LS-CTL-0057High power constant current controller, 4 ch, max. output power 120 W per channel 4Constant currentAC 100-240V-RS232/LAN$669.00 Ships in 2-3 weeks
LS-CTL-0061Digital control box, 2 ch, 60 W 224VDC 24V3.34ARS232$359.00 Ships in 2-3 weeks
LS-CTL-0059High power constant current controller, 1 ch, max. output power 900 W per channel 1Constant currentAC 100-240V-RS232/LAN$829.00 Ships in 2-3 weeks
LS-CTL-0058High power constant current controller, 1 ch, max. output power 700 W per channel 1Constant currentAC 100-240V-RS232/LAN$709.00 Ships in 2-3 weeks
LS-CTL-0055High power constant current controller, 1 ch, max. output power 450 W per channel 1Constant currentAC 100-240V-RS232/LAN$549.00 Ships in 2-3 weeks
LS-CTL-0053High power constant current controller, 1 ch, max. output power 320 W per channel 1Constant currentAC 100-240V-RS232/LAN$469.00 Ships in 2-3 weeks
LS-CTL-0056High power constant current controller, 2 ch, max. output power 240 W per channel, 450 W 2Constant currentAC 100-240V-RS232/LAN$589.00 Ships in 2-3 weeks
LS-CTL-0052High power constant current controller, 2 ch, max. output power 120 W per channel, 200 W 2Constant currentAC 100-240V-RS232/LAN$439.00 Ships in 2-3 weeks
LS-CTL-0054High power constant current controller, 2 ch, max. output power 240 W per channel, 320 W 2Constant currentAC 100-240V-RS232/LAN$519.00 Ships in 2-3 weeks
LS-CTL-0051High power constant current controller, 1 ch, max. output power 200 W per channel 1Constant currentAC 100-240V-RS232/LAN$389.00 Ships in 2-3 weeks
LS-CTL-0050High power constant current controller, 2 ch, max. output power 120 W per channel 2Constant currentAC 100-240V-RS232/LAN$379.00 Ships in 2-3 weeks
LS-CTL-0049High power constant current controller, 1 ch, max. output power 120 W per channel 1Constant currentAC 100-240V-RS232/LAN$339.00 Ships in 2-3 weeks
LS-CTL-0048High power constant current controller, 4 ch, max. output power 40 W per channel 4Constant currentAC 100-240V-RS232/LAN$439.00 Ships in 2-3 weeks
LS-CTL-0047High power constant current controller, 2 ch, max. output power 40 W per channel 2Constant currentAC 100-240V-RS232/LAN$339.00 Ships in 2-3 weeks

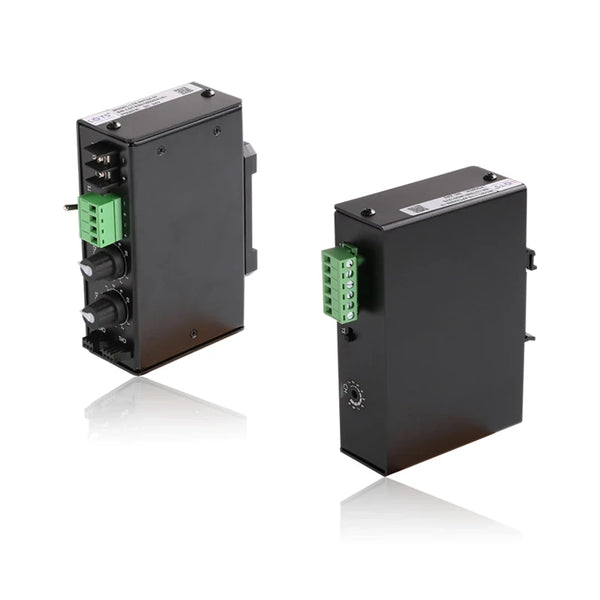

LS-CTL-0046Analog controller box, 2 ch, 60 W 2 Way24VDC 24V60WManual adjustment$199.00 Ships in 2-3 weeks
LS-CTL-0036Constant current controller, 4 ch, 4 W, output current 0-350 mA per channel 4-AC 100-240V4WRS232$289.00 Ships in 2-3 weeks
LS-CTL-0038Constant current controller, 4 ch, 8 W, output current 0-700 mA per channel 4-AC 100-240V8WRS232$289.00 Ships in 2-3 weeks
LS-CTL-0044Constant current controller, 2 ch, 10 W, output current 0-400 mA per channel 2-AC 100-240V10WRS232$219.00 Ships in 2-3 weeks
LS-CTL-0040Constant current controller, 4 ch, 12 W, output current 0-1000 mA per channel 4-AC 100-240V12WRS232$289.00 Ships in 2-3 weeks
LS-CTL-0043Constant current controller, 2 ch, 20 W, output current 0-2500 mA per channel 2-AC 100-240V20WRS232$229.00 Ships in 2-3 weeks
LS-CTL-0042Constant current controller, 2 ch, 20 W, output current 0-1500 mA per channel 2-AC 100-240V20WRS232$229.00 Ships in 2-3 weeks
LS-CTL-0041Constant current controller, 2 ch, 10 W, output current 0-1500 mA per channel 2-AC 100-240V10WRS232$219.00 Ships in 2-3 weeks

How to choose a machine vision light controller

1. Channels

One channel drives one light at its own brightness. Count the lights that must be set or switched separately: a ring plus a backlight need two channels; a multi-angle setup that takes several images in sequence needs one channel per angle. 2-channel, 4-channel and 8-channel controllers cover most stations.

2. Power per channel

Add up the power of the lights on each channel and keep a margin: a controller rated for less current than the light draws runs it dim or shuts down. High-power line and spot lights may need a high-power controller.

3. Constant, strobe or overdrive

Constant light suits slow or stationary parts. Strobing flashes the light only during the exposure, from the camera or sensor trigger: it freezes moving parts, keeps the LEDs cool and lets the controller drive short pulses above the continuous rating (overdrive) for more light. Check the trigger input, the shortest pulse and the delay between trigger and flash.

4. How it is set

Manual knobs suit fixed setups; RS-232 or Ethernet control lets the vision software change brightness per inspection step and store recipes. Analog dimming takes a 0-10 V signal from a PLC.

5. Voltage and connectors

Match the output voltage to the lights (24 V DC for almost every light here) and check the connector, or plan an adapter cable. Lights and controllers from the same range plug together directly.
