Representative photo of this series
Light controllers
High power constant current controller, 2 ch, max. output power 240 W per channel, 320 W (LS-CTL-0054)
Model LS-CTL-0054
- Channels2
- OutputConstant current
- InputAC 100-240 V
- CommunicationRS232/LAN
$519.00
Ships in 2-3 weeks
0.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
LS-CTL-0054: number of channels 2, one way max. output power 240 W, max. total power 320 W.
The best matched controller for line scan light. Constant current dimming, no flicker, automatically adapt the best adjustment curve. 7.5KHz highest trigger frequency.
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0054 |
|---|---|
| Constant on / off switch | Constant on / off switch by TS switch |
| Product | High power constant current controller |
| Control | Manual encoder knob adjustment, PC remote adjustment |
Interfaces and I/O
| Communication mode | RS232/LAN |
|---|
Light
| Luminance adjustment level | 256 level |
|---|---|
| Luminance adjustment method | Manual encoder knob adjustment, PC remote adjustment |
Environment and compliance
| Operating environment | Humidity 20%-85%RH (non-condensing), temperature 0°C-50°C |
|---|---|
| Storage environment | Humidity 20%-85%RH (non-condensing), temperature 0°C-60°C |
Computing
| Memory function | Data saving automatically when power off |
|---|
Electrical
| Input voltage | AC 100-240 V |
|---|---|
| Baud rate | 9600 bps |
| Drive mode | Constant current mode |
| External trigger voltage | High level 5-24V valid |
| External trigger frequency | Determined by the external trigger signal; with 50% duty ratio the max. effective trigger frequency is 7.5KHz |
| External trigger delay time | 10 us |
| External trigger voltage | 5-24 V |
| Max. total power | 320 W |
| One way max. output power | 240 W |
| Number of channels | 2 |
Mechanical
| Mounting holes | 4-M3 (the 4 feet can be removed and used as mounting holes) |
|---|---|
| Mounting | DIN rail mount |
| Shipping weight | 0.50 kg |
Engineering data
What the LS-CTL-0054 can drive
Worked out from the printed outputs: what one channel delivers and which lights it can run.
Channels2
Power per channel240 W
Input voltage100–240 V AC
Trigger input5–24 V
CommunicationRS-232, Ethernet
Mounting and installation
| Mounting holes | 4 × M3 |
|---|---|
| Mounting | Screw holes under removable feet · DIN rail |

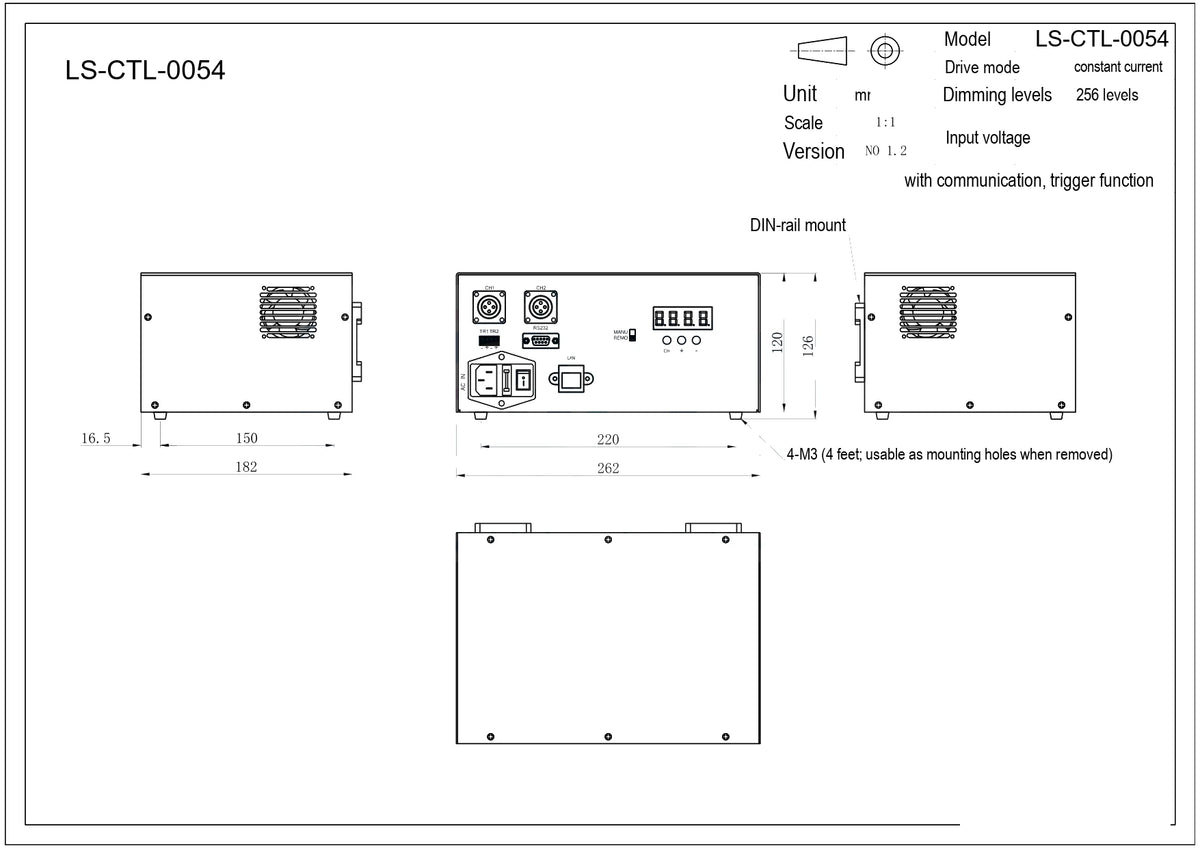

As printed in this model's specifications and dimension drawing. Check the drawing in Downloads before you drill a fixture.
